Kingbright CA56-11SURKWA
- Part No.:
- CA56-11SURKWA
- Manufacturer:
- Kingbright
- Category:
- LED Character and Numeric
- Package:
- 36-DIP (0.600", 15.24mm)
- Datasheet:
-
CA56-11SURKWA.pdf
- Description:
- DISP 7SEG 0.56" QUAD RED 36DIP
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
CA56-11SURKWA Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Kingbright
- Series:
- -
- Package/Case:
- 36-DIP (0.600", 15.24mm)
- Packaging:
- Tube
- Product Status:
- Active
- Display Format:
- -
- Number of Characters:
- 4
- Size / Dimension:
- 0.748" H x 1.980" W x 0.319" D (19.00mm x 50.30mm x 8.10mm)
- Digit/Alpha Size:
- 0.56" (14.22mm)
- Display Type:
- 7-Segment Clock
- Common Pin:
- Common Anode
- Color:
- Red
- Voltage - Forward (Vf) (Typ):
- 1.95V
- Current - Test:
- 20mA
- Millicandela Rating:
- 72mcd
- Wavelength - Peak:
- 645nm
- Power Dissipation (Max):
- 75mW
| Image |  |
|
 |
|
|

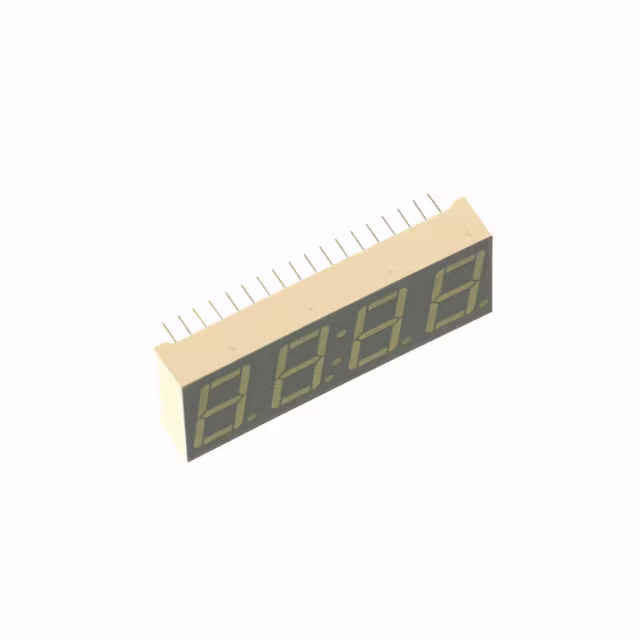

| Part Number | CA56-11SURKWA | CA56-21SURKWA | CA56-11GWA | CA56-12GWA | CA56-11EWA |
| Manufacturer | Kingbright | Kingbright | Kingbright | Kingbright | Kingbright |
| Series | - | - | - | - | - |
| Package/Case | 36-DIP (0.600", 15.24mm) | 12-DIP (0.600", 15.24mm) | 36-DIP Module (0.600", 15.24mm) | 12-DIP (0.600", 15.24mm) | 36-DIP Module (0.600", 15.24mm) |
| Packaging | Tube | Bulk | Tube | Tube | Tube |
| Product Status | Active | Active | Active | Active | Active |
| Display Format | - | - | - | - | - |
| Number of Characters | 4 | 4 | 4 | 4 | 4 |
| Size / Dimension | 0.748" H x 1.980" W x 0.319" D (19.00mm x 50.30mm x 8.10mm) | 0.748" H x 1.980" W x 0.319" D (19.00mm x 50.30mm x 8.10mm) | 0.748" H x 1.980" W x 0.319" D (19.00mm x 50.30mm x 8.10mm) | 0.748" H x 1.980" W x 0.319" D (19.00mm x 50.30mm x 8.10mm) | 0.748" H x 1.980" W x 0.319" D (19.00mm x 50.30mm x 8.10mm) |
| Digit/Alpha Size | 0.56" (14.22mm) | 0.56" (14.20mm) | 0.56" (14.22mm) | 0.56" (14.20mm) | 0.56" (14.22mm) |
| Display Type | 7-Segment Clock | 7-Segment | 7-Segment Clock | 7-Segment Clock | 7-Segment Clock |
| Common Pin | Common Anode | Common Anode | Common Anode | Common Anode | Common Anode |
| Color | Red | Red | Green | Green | Red |
| Voltage - Forward (Vf) (Typ) | 1.95V | 1.85V | 2.2V | 2.2V | 2V |
| Current - Test | 20mA | 10mA | 20mA | 20mA | 20mA |
| Millicandela Rating | 72mcd | 72mcd | 11mcd | 11mcd | 5.8mcd |
| Wavelength - Peak | 645nm | 645nm | 565nm | 565nm | 627nm |
| Power Dissipation (Max) | 75mW | 75mW | 62.5mW | 62.5mW | 75mW |
