Panasonic Electric Works CA1A-12V-A-5
- Part No.:
- CA1A-12V-A-5
- Manufacturer:
- Panasonic Electric Works
- Category:
- Automotive Relays
- Package:
- Description:
- RELAY AUTOMOTIVE SPST 30A 12V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
CA1A-12V-A-5 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Panasonic Electric Works
- Series:
- CA
- Packaging:
- Bulk
- Product Status:
- Active
- Coil Type:
- Non Latching
- Coil Current:
- 150 mA
- Coil Voltage:
- 12VDC
- Contact Form:
- SPST-NO (1 Form A)
- Contact Rating (Current):
- 30 A
- Switching Voltage:
- 16VDC - Max
- Must Operate Voltage:
- 8 VDC
- Must Release Voltage:
- 0.6 VDC
- Operate Time:
- 10 ms
- Release Time:
- 10 ms
- Features:
- -
- Mounting Type:
- Chassis Mount
- Termination Style:
- Plug In
- Operating Temperature:
- -30°C ~ 80°C
| Image |  |
 |
 |
 |
|

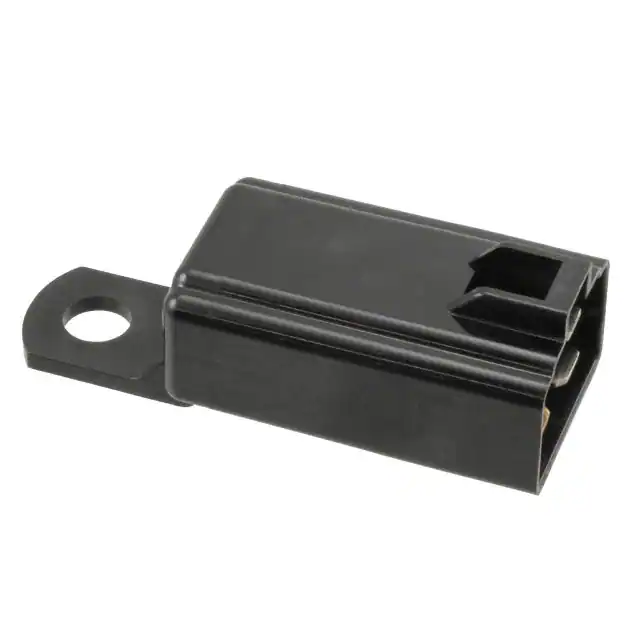

| Part Number | CA1A-DC12V-N | CA1A-12V-C-5 | CA1A-12V-A-5 | CA1AR-12V-N-5 | CA1AR-12V-A-5 |
| Manufacturer | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works |
| Series | CA | CA | CA | CA | CA |
| Packaging | Tray | Bulk | Bulk | Tray | Tray |
| Product Status | Active | Active | Active | Active | Active |
| Coil Type | Non Latching | Non Latching | Non Latching | Non Latching | Non Latching |
| Coil Current | 150 mA | 150 mA | 150 mA | 150 mA | 150 mA |
| Coil Voltage | 12VDC | 12VDC | 12VDC | 12VDC | 12VDC |
| Contact Form | SPST-NO (1 Form A) | SPST-NO (1 Form A) | SPST-NO (1 Form A) | SPST-NO (1 Form A) | SPST-NO (1 Form A) |
| Contact Rating (Current) | 30 A | 30 A | 30 A | 30 A | 30 A |
| Switching Voltage | 16VDC - Max | 16VDC - Max | 16VDC - Max | 16VDC - Max | 16VDC - Max |
| Must Operate Voltage | 8 VDC | 8 VDC | 8 VDC | 8 VDC | 8 VDC |
| Must Release Voltage | 0.6 VDC | 0.6 VDC | 0.6 VDC | 0.6 VDC | 0.6 VDC |
| Operate Time | 10 ms | 10 ms | 10 ms | 10 ms | 10 ms |
| Release Time | 10 ms | 10 ms | 10 ms | 10 ms | 10 ms |
| Features | - | - | - | Resistor, Sealed - Fully | Resistor, Sealed - Fully |
| Mounting Type | Chassis Mount | Socketable | Chassis Mount | Socketable | Chassis Mount |
| Termination Style | Plug In | Plug In | Plug In | Plug In | Quick Connect - 0.250" (6.3mm) |
| Operating Temperature | -30°C ~ 80°C | -30°C ~ 80°C | -30°C ~ 80°C | -30°C ~ 80°C | -30°C ~ 80°C |
