Cree LED C503B-RAN-CZ0C0AA2
- Part No.:
- C503B-RAN-CZ0C0AA2
- Manufacturer:
- Cree LED
- Category:
- LED Indication - Discrete
- Package:
- Radial
- Datasheet:
-
C503B-RAN-CZ0C0AA2.pdf
- Description:
- LED RED CLEAR 5MM ROUND T/H
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
C503B-RAN-CZ0C0AA2 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Cree LED
- Series:
- -
- Package/Case:
- Radial
- Packaging:
- Cut Tape (CT)
- Product Status:
- Active
- Color:
- Red
- Configuration:
- Standard
- Lens Color:
- Colorless
- Lens Transparency:
- Clear
- Millicandela Rating:
- 20550mcd
- Lens Style:
- Round with Domed Top
- Lens Size:
- 5.00mm Dia
- Voltage - Forward (Vf) (Typ):
- 2.1V
- Current - Test:
- 20mA
- Viewing Angle:
- 15°
- Mounting Type:
- Through Hole
- Wavelength - Dominant:
- 624nm
- Wavelength - Peak:
- -
- Features:
- -
- Grade:
- -
- Qualification:
- -
- Supplier Device Package:
- 5mm Round
- Size / Dimension:
- -
| Image |  |
|
 |
 |
|

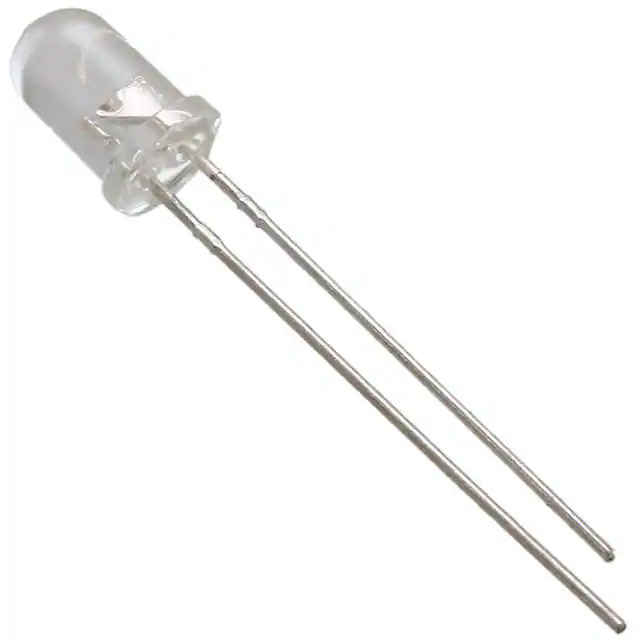

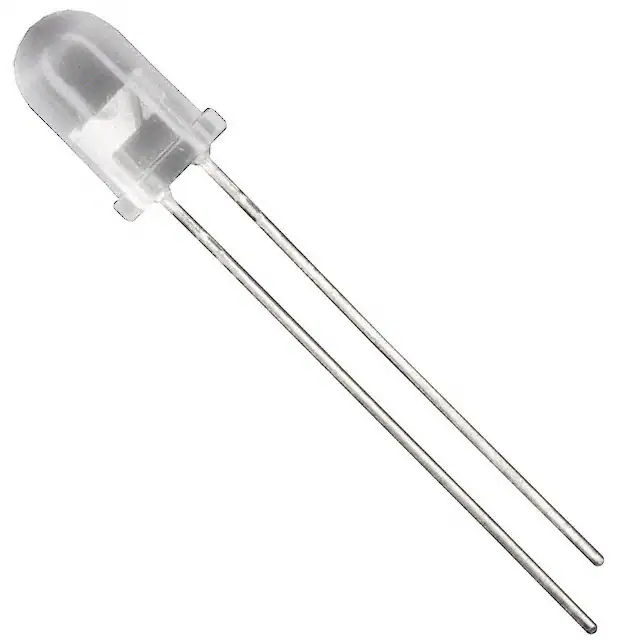

| Part Number | C503B-RAN-CZ0C0AA2 | C503B-RCN-CW0Z0AA1 | C503B-ACN-CY0Z0252-030 | C503B-RCN-CW0Z0AA2 | C503B-RAN-CZ0C0AA1 |
| Manufacturer | Cree LED | Cree LED | Cree LED | Cree LED | Cree LED |
| Series | - | - | - | - | - |
| Package/Case | Radial | Radial | Radial | Radial | Radial |
| Packaging | Cut Tape (CT) | Bulk | Cut Tape (CT) | Cut Tape (CT) | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Color | Red | Red | Amber | Red | Red |
| Configuration | Standard | Standard | Standard | Standard | Standard |
| Lens Color | Colorless | Colorless | Colorless | Colorless | Colorless |
| Lens Transparency | Clear | Clear | Clear | Clear | Clear |
| Millicandela Rating | 20550mcd | 7500mcd | 8930mcd | 7500mcd | 20550mcd |
| Lens Style | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top |
| Lens Size | 5.00mm Dia | 5.00mm Dia | 5.00mm Dia | 5.00mm Dia | 5.00mm Dia |
| Voltage - Forward (Vf) (Typ) | 2.1V | 2.1V | 2.1V | 2.1V | 2.1V |
| Current - Test | 20mA | 20mA | 20mA | 20mA | 20mA |
| Viewing Angle | 15° | 30° | 30° | 30° | 15° |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Wavelength - Dominant | 624nm | 624nm | 591nm | 624nm | 624nm |
| Wavelength - Peak | - | - | - | - | - |
| Features | - | - | - | - | - |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Supplier Device Package | 5mm Round | 5mm Round | 5mm Round | 5mm Round | 5mm Round |
| Size / Dimension | - | - | - | - | - |
