Vishay General Semiconductor - Diodes Division BZX584C12-G3-08
- Part No.:
- BZX584C12-G3-08
- Manufacturer:
- Vishay General Semiconductor - Diodes Division
- Category:
- Single Zener Diodes
- Package:
- SC-79, SOD-523
- Description:
- DIODE ZENER 12V 200MW SOD523
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
BZX584C12-G3-08 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Vishay General Semiconductor - Diodes Division
- Series:
- BZX584C
- Package/Case:
- SC-79, SOD-523
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Voltage - Zener (Nom) (Vz):
- 12 V
- Tolerance:
- ±5%
- Power - Max:
- 200 mW
- Impedance (Max) (Zzt):
- 10 Ohms
- Current - Reverse Leakage @ Vr:
- 100 nA @ 8 V
- Voltage - Forward (Vf) (Max) @ If:
- -
- Operating Temperature:
- 150°C (TJ)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- SOD-523

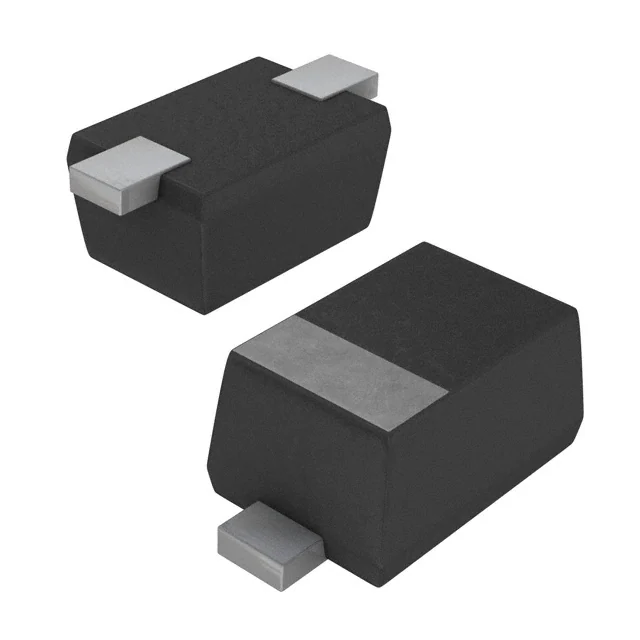

| Image |  |
|
 |
| Part Number | BZX584C12-G3-08 | BZX584C12-HG3-08 | BZX584C12-V-G-08 |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| Series | BZX584C | BZX584C | BZX584C-V-G |
| Package/Case | SC-79, SOD-523 | SC-79, SOD-523 | SC-79, SOD-523 |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Obsolete |
| Voltage - Zener (Nom) (Vz) | 12 V | 12 V | 12 V |
| Tolerance | ±5% | ±5% | ±5% |
| Power - Max | 200 mW | 200 mW | 200 mW |
| Impedance (Max) (Zzt) | 10 Ohms | 10 Ohms | 25 Ohms |
| Current - Reverse Leakage @ Vr | 100 nA @ 8 V | 100 nA @ 8 V | 100 nA @ 8 V |
| Voltage - Forward (Vf) (Max) @ If | - | - | - |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | -65°C ~ 150°C |
| Grade | - | Automotive | - |
| Qualification | - | AEC-Q101 | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | SOD-523 | SOD-523 | SOD-523 |
