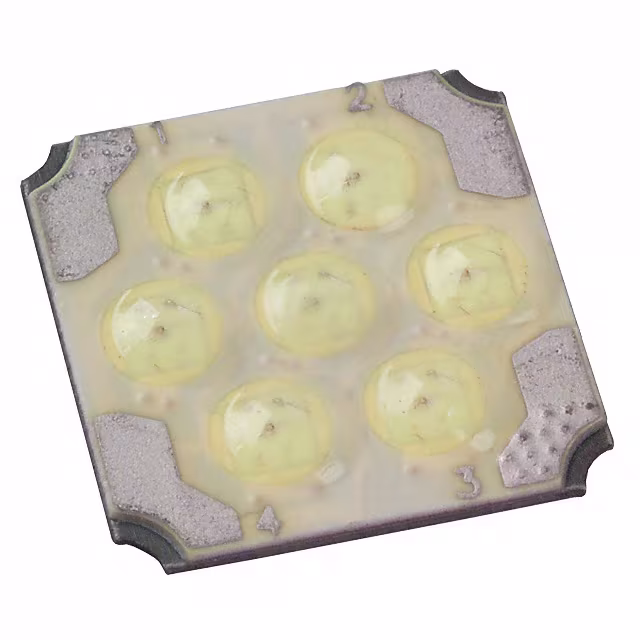

Lighting Science Group Corporation BL-23F1-0246

Name: BL-23F1-0246
Brand: Lighting Science Group Corporation
SKU: BL-23F1-0246
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: BL-23F1-0246

Manufacturer:: Lighting Science Group Corporation

Category:: LED COBs, Engines, Modules, Strips

Package:

Datasheet:: BL-23F1-0246.pdf

Description:: LED MOD BL-2000 RGB SQUARE SMD

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

BL-23F1-0246 Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Lighting Science Group Corporation

Series:: BL-2000

Packaging:: Tape & Reel (TR)

Product Status:: Obsolete

Type:: LED Module

Color:: Red, Green, Blue (RGB)

CCT (K):: -

Wavelength:: 624nm Red, 525nm Green, 470nm Blue

Configuration:: Square

Luminous Flux @ Current/Temperature:: 21lm (Typ) Red, 26lm (Typ) Green, 8lm (Typ) Blue

Current - Test:: 210mA

Temperature - Test:: 25°C

Voltage - Forward (Vf) (Typ):: 4.8V Red, 7V Green, 7V Blue

Lumens/Watt @ Current - Test:: -

Current - Max:: -

CRI (Color Rendering Index):: -

Viewing Angle:: -

Features:: -

Size / Dimension:: 14.48mm L x 14.48mm W

Height:: 2.54mm

Light Emitting Surface (LES):: -

Lens Type:: Domed

Part Number	BL-23F1-0246	BL-43F0-0305	BL-22F0-0132	BL-22B1-0140	BL-22D0-0130
Manufacturer	Lighting Science Group Corporation	Lighting Science Group Corporation	Lighting Science Group Corporation	Lighting Science Group Corporation	Lighting Science Group Corporation
Series	BL-2000	BL-4000	BL-2000	BL-2000	BL-2000
Packaging	Tape & Reel (TR)	Tape & Reel (TR)	-	Tray	Tray
Product Status	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete
Type	LED Module	LED Module	LED Module	LED Module	LED Module
Color	Red, Green, Blue (RGB)	Red, Green, Blue (RGB)	Red, Green, Blue (RGB)	Blue	White, Cool
CCT (K)	-	-	-	-	5500K
Wavelength	624nm Red, 525nm Green, 470nm Blue	624nm Red, 530nm Green, 465nm Blue	630nm Red, 523nm Green, 470nm Blue	470nm	-
Configuration	Square	Starboard	Square	Square	Square
Luminous Flux @ Current/Temperature	21lm (Typ) Red, 26lm (Typ) Green, 8lm (Typ) Blue	-	59lm (Typ) Red, 31lm (Typ) Green, 4.2lm (Typ) Blue	22lm (Typ)	-
Current - Test	210mA	350mA	630mA, 210mA	420mA	420mA
Temperature - Test	25°C	-	25°C	25°C	-
Voltage - Forward (Vf) (Typ)	4.8V Red, 7V Green, 7V Blue	-	3V Red, 4V Green, 4V Blue	10.5V	-
Lumens/Watt @ Current - Test	-	-	-	5 lm/W	-
Current - Max	-	400mA Blue, 400mA Green, 450mA Red	-	-	420mA
CRI (Color Rendering Index)	-	-	-	-	-
Viewing Angle	-	-	-	-	-
Features	-	-	-	-	-
Size / Dimension	14.48mm L x 14.48mm W	-	14.48mm L x 14.48mm W	14.48mm L x 14.48mm W	-
Height	2.54mm	-	2.54mm	2.54mm	-
Light Emitting Surface (LES)	-	-	-	-	-
Lens Type	Domed	Domed	Domed	Domed	Domed
