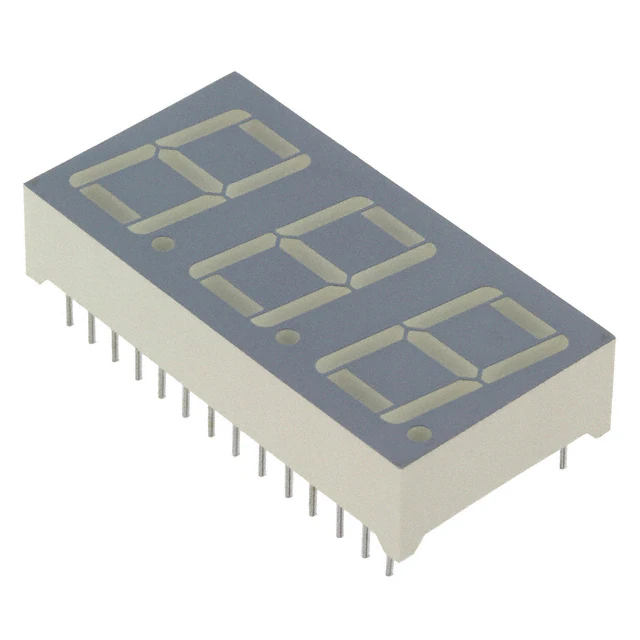

Kingbright BA56-12GWA
- Part No.:
- BA56-12GWA
- Manufacturer:
- Kingbright
- Category:
- LED Character and Numeric
- Package:
- 28-DIP Module (0.600", 15.24mm), 12 Leads
- Datasheet:
-
BA56-12GWA.pdf
- Description:
- DISP 7SEG 0.56" TRPL GRN 28DIP
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
BA56-12GWA Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Kingbright
- Series:
- -
- Package/Case:
- 28-DIP Module (0.600", 15.24mm), 12 Leads
- Packaging:
- Tube
- Product Status:
- Active
- Display Format:
- -
- Number of Characters:
- 3
- Size / Dimension:
- 1.480" H x 0.748" W x 0.319" D (37.60mm x 19.00mm x 8.10mm)
- Digit/Alpha Size:
- 0.56" (14.22mm)
- Display Type:
- 7-Segment
- Common Pin:
- Common Anode
- Color:
- Green
- Voltage - Forward (Vf) (Typ):
- 2.2V
- Current - Test:
- 20mA
- Millicandela Rating:
- 8.6mcd
- Wavelength - Peak:
- 565nm
- Power Dissipation (Max):
- 62.5mW
| Image |  |
 |
 |
|
 |
| Part Number | BA56-12SURKWA | BA56-12GWA | BA56-11SURKWA | BA56-12EWA | BA56-11GWA |
| Manufacturer | Kingbright | Kingbright | Kingbright | Kingbright | Kingbright |
| Series | - | - | - | - | - |
| Package/Case | 12-DIP (0.600", 15.24mm) | 28-DIP Module (0.600", 15.24mm), 12 Leads | 28-DIP (0.600", 15.24mm) | 12-DIP (0.600", 15.24mm) | 28-DIP (0.600", 15.24mm) |
| Packaging | Tube | Tube | Tube | Tube | Tube |
| Product Status | Active | Active | Active | Active | Active |
| Display Format | - | - | - | - | - |
| Number of Characters | 3 | 3 | 3 | 3 | 3 |
| Size / Dimension | 1.480" H x 0.748" W x 0.319" D (37.60mm x 19.00mm x 8.10mm) | 1.480" H x 0.748" W x 0.319" D (37.60mm x 19.00mm x 8.10mm) | 1.480" H x 0.748" W x 0.319" D (37.60mm x 19.00mm x 8.10mm) | 1.480" H x 0.748" W x 0.319" D (37.60mm x 19.00mm x 8.10mm) | 1.480" H x 0.748" W x 0.319" D (37.60mm x 19.00mm x 8.10mm) |
| Digit/Alpha Size | 0.56" (14.22mm) | 0.56" (14.22mm) | 0.56" (14.22mm) | 0.56" (14.22mm) | 0.56" (14.22mm) |
| Display Type | 7-Segment | 7-Segment | 7-Segment | 7-Segment | 7-Segment |
| Common Pin | Common Anode | Common Anode | Common Anode | Common Anode | Common Anode |
| Color | Red | Green | Red | Red | Green |
| Voltage - Forward (Vf) (Typ) | 1.95V | 2.2V | 1.95V | 2V | 2.2V |
| Current - Test | 20mA | 20mA | 20mA | 20mA | 20mA |
| Millicandela Rating | 73mcd | 8.6mcd | 73mcd | 5.8mcd | 8.6mcd |
| Wavelength - Peak | 645nm | 565nm | 645nm | 627nm | 565nm |
| Power Dissipation (Max) | 75mW | 62.5mW | 75mW | 75mW | 62.5mW |
