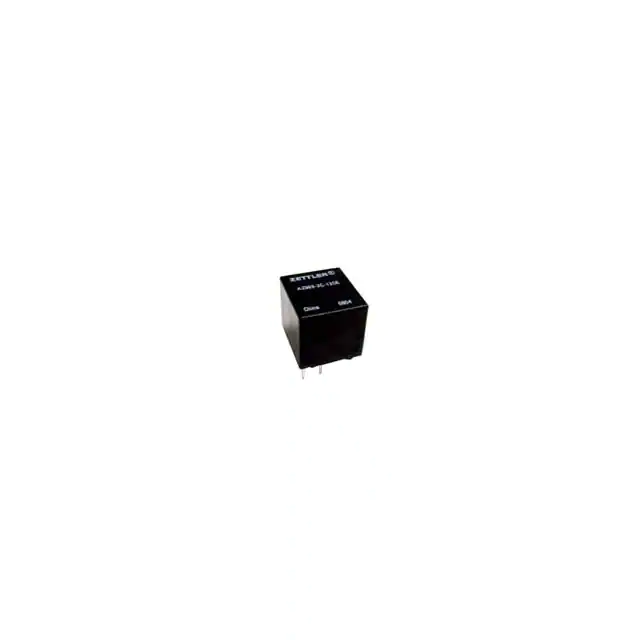

American Zettler AZ9891J-1C-12DE

Name: AZ9891J-1C-12DE
Brand: American Zettler
SKU: AZ9891J-1C-12DE
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: AZ9891J-1C-12DE

Manufacturer:: American Zettler

Category:: Automotive Relays

Package:

Datasheet:: AZ9891J-1C-12DE.pdf

Description:: RELAY AUTOMOTIVE SPDT 30A 12V

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

AZ9891J-1C-12DE Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: American Zettler

Series:: AZ9891J

Packaging:: Tray

Product Status:: Active

Coil Type:: Non Latching

Coil Current:: 66.7 mA

Coil Voltage:: 12VDC

Contact Form:: SPDT (1 Form C)

Contact Rating (Current):: 30 A

Switching Voltage:: 16VDC - Max

Must Operate Voltage:: 7.2 VDC

Must Release Voltage:: 1 VDC

Operate Time:: 10 ms

Release Time:: 10 ms

Features:: Sealed - Epoxy

Mounting Type:: Through Hole

Termination Style:: PC Pin

Operating Temperature:: -40°C ~ 85°C

Part Number	AZ9891J-1C-12DE	AZ9891J-1C-12DSE	AZ9891J-2C-12DE
Manufacturer	American Zettler	American Zettler	American Zettler
Series	AZ9891J	AZ9891J	AZ9891J
Packaging	Tray	Tray	Tray
Product Status	Active	Active	Active
Coil Type	Non Latching	Non Latching	Non Latching
Coil Current	66.7 mA	53.3 mA	66.7 mA
Coil Voltage	12VDC	12VDC	12VDC
Contact Form	SPDT (1 Form C)	SPDT (1 Form C)	DPDT (2 Form C)
Contact Rating (Current)	30 A	30 A	30 A
Switching Voltage	16VDC - Max	16VDC - Max	16VDC - Max
Must Operate Voltage	7.2 VDC	6.5 VDC	7.2 VDC
Must Release Voltage	1 VDC	1 VDC	1 VDC
Operate Time	10 ms	10 ms	10 ms
Release Time	10 ms	10 ms	10 ms
Features	Sealed - Epoxy	Sealed - Epoxy	Sealed - Epoxy
Mounting Type	Through Hole	Through Hole	Through Hole
Termination Style	PC Pin	PC Pin	PC Pin
Operating Temperature	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C
