Microchip Technology ATWINC1510-MR210PB1952
- Part No.:
- ATWINC1510-MR210PB1952
- Manufacturer:
- Microchip Technology
- Category:
- RF Transceiver Modules and Modems
- Package:
- Module
- Datasheet:
-
ATWINC1510-MR210PB1952.pdf
- Description:
- RF TXRX MOD WIFI TH SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
ATWINC1510-MR210PB1952 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Microchip Technology
- Series:
- -
- Package/Case:
- Module
- Packaging:
- Tray
- Product Status:
- Active
- Programmable:
- Not Verified
- RF Family/Standard:
- WiFi
- Protocol:
- 802.11b/g/n
- Modulation:
- 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK
- Frequency:
- 2.4GHz
- Data Rate:
- 72.2Mbps
- Power - Output:
- 18.5dBm
- Sensitivity:
- -95dBm
- Serial Interfaces:
- I2C, SPI, UART
- Antenna Type:
- Integrated, Trace
- Utilized IC / Part:
- ATWINC1500B
- Memory Size:
- 8MB Flash, 128kB RAM
- Voltage - Supply:
- 2.7V ~ 3.6V
- Current - Receiving:
- 61mA
- Current - Transmitting:
- 265mA
- Mounting Type:
- Surface Mount
- Operating Temperature:
- -40°C ~ 85°C
| Image |  |
 |
 |
|
|

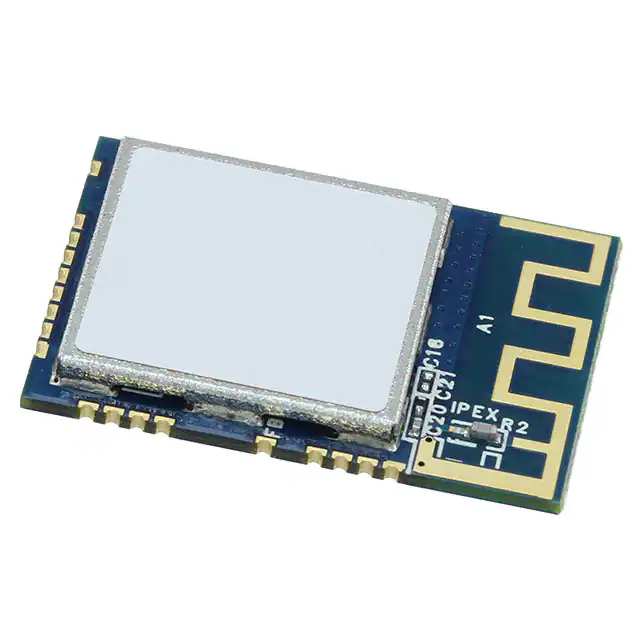

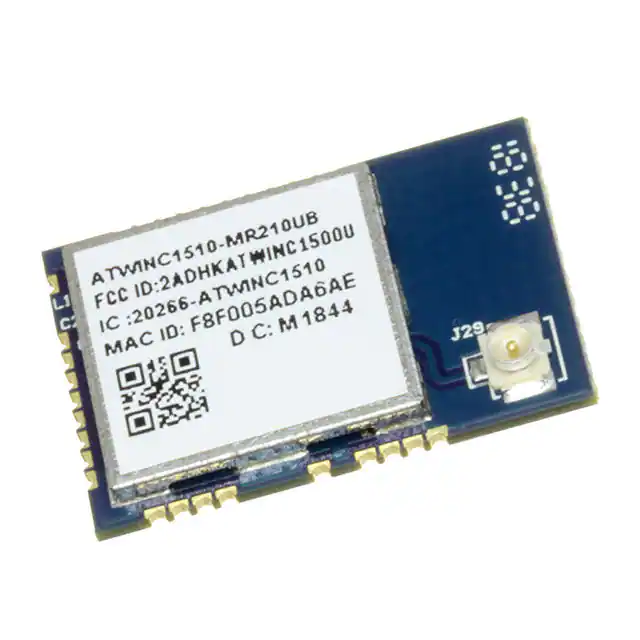

| Part Number | ATWINC1510-MR210PB1952 | ATWINC1510-MR210PB1954 | ATWINC1510-MR210UB1961 | ATWINC1510-MR210PB1961 | ATWINC1510-MR210UB1954 |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Series | - | SmartConnect | SmartConnect | SmartConnect | SmartConnect |
| Package/Case | Module | 28-SMD Module | 28-SMD Module | 28-SMD Module | 28-SMD Module |
| Packaging | Tray | Tray | Tray | Tray | Tray |
| Product Status | Active | Active | Active | Active | Active |
| Programmable | Not Verified | Not Verified | Not Verified | Not Verified | Not Verified |
| RF Family/Standard | WiFi | WiFi | WiFi | WiFi | WiFi |
| Protocol | 802.11b/g/n | 802.11b/g/n | 802.11b/g/n | 802.11b/g/n | 802.11b/g/n |
| Modulation | 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK | 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK | 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK | 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK | 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK |
| Frequency | 2.4GHz | 2.4GHz | 2.4GHz | 2.4GHz | 2.4GHz |
| Data Rate | 72.2Mbps | 72.2Mbps | 72.2Mbps | 72.2Mbps | 72.2Mbps |
| Power - Output | 18.5dBm | 18.5dBm | 18.5dBm | 18.5dBm | 18.5dBm |
| Sensitivity | -95dBm | -95dBm | -95dBm | -95dBm | -95dBm |
| Serial Interfaces | I2C, SPI, UART | I2C, SPI, UART | I2C, SPI, UART | I2C, SPI, UART | I2C, SPI, UART |
| Antenna Type | Integrated, Trace | Integrated, Trace | Integrated, Chip + U.FL | Integrated, Trace | Integrated, Chip + U.FL |
| Utilized IC / Part | ATWINC1500B | ATWINC1500B | ATWINC1500B | ATWINC1500B | ATWINC1500B |
| Memory Size | 8MB Flash, 128kB RAM | 8MB Flash, 128kB RAM | 8MB Flash, 128kB RAM | 8MB Flash, 128kB RAM | 8MB Flash, 128kB RAM |
| Voltage - Supply | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V |
| Current - Receiving | 61mA | 61mA | 61mA | 61mA | 61mA |
| Current - Transmitting | 265mA | 265mA | 265mA | 265mA | 265mA |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
