Microchip Technology ATTINY406-MNR
- Part No.:
- ATTINY406-MNR
- Manufacturer:
- Microchip Technology
- Category:
- Microcontrollers
- Package:
- 20-VFQFN Exposed Pad
- Datasheet:
-
ATTINY406-MNR.pdf
- Description:
- IC MCU 8BIT 4KB FLASH 20VQFN
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
ATTINY406-MNR Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Microchip Technology
- Package/Case:
- 20-VFQFN Exposed Pad
- Series:
- tinyAVR™ 0, Functional Safety (FuSa)
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Programmable:
- Not Verified
- Core Processor:
- AVR
- Core Size:
- 8-Bit
- Speed:
- 20MHz
- Connectivity:
- I2C, SPI, UART/USART
- Peripherals:
- Brown-out Detect/Reset, POR, WDT
- Number of I/O:
- 18
- Program Memory Size:
- 4KB (4K x 8)
- Program Memory Type:
- FLASH
- EEPROM Size:
- 128 x 8
- RAM Size:
- 256 x 8
- Voltage - Supply (Vcc/Vdd):
- 1.8V ~ 5.5V
- Data Converters:
- A/D 12x10b
- Oscillator Type:
- Internal
- Operating Temperature:
- -40°C ~ 105°C (TA)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:

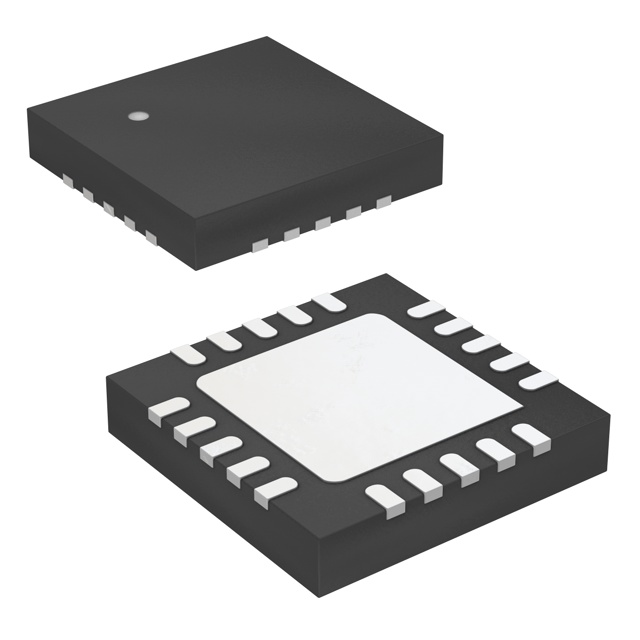

| Image |  |
 |
|
|
 |
| Part Number | ATTINY406-MNR | ATTINY406-SNR | ATTINY406-SN | ATTINY406-SFR | ATTINY406-MF |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Package/Case | 20-VFQFN Exposed Pad | 20-SOIC (0.295", 7.50mm Width) | 20-SOIC (0.295", 7.50mm Width) | 20-SOIC (0.295", 7.50mm Width) | 20-VFQFN Exposed Pad |
| Series | tinyAVR™ 0, Functional Safety (FuSa) | tinyAVR™ 0, Functional Safety (FuSa) | tinyAVR™ 0, Functional Safety (FuSa) | tinyAVR™ 0, Functional Safety (FuSa) | AVR® ATtiny |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tube | Tape & Reel (TR) | Tray |
| Product Status | Active | Active | Active | Active | Active |
| Programmable | Not Verified | Not Verified | Not Verified | Not Verified | - |
| Core Processor | AVR | AVR | AVR | AVR | AVR |
| Core Size | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit |
| Speed | 20MHz | 20MHz | 20MHz | 16MHz | 20MHz |
| Connectivity | I2C, SPI, UART/USART | I2C, SPI, UART/USART | I2C, SPI, UART/USART | I2C, SPI, UART/USART | I2C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, WDT | Brown-out Detect/Reset, POR, WDT | Brown-out Detect/Reset, POR, WDT | Brown-out Detect/Reset, POR, WDT | Brown-out Detect/Reset, POR, WDT |
| Number of I/O | 18 | 18 | 18 | 18 | 18 |
| Program Memory Size | 4KB (4K x 8) | 4KB (4K x 8) | 4KB (4K x 8) | 4KB (4K x 8) | 4KB (4K x 8) |
| Program Memory Type | FLASH | FLASH | FLASH | FLASH | FLASH |
| EEPROM Size | 128 x 8 | 128 x 8 | 128 x 8 | 128 x 8 | 128 x 8 |
| RAM Size | 256 x 8 | 256 x 8 | 256 x 8 | 256 x 8 | 256 x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 2.7V ~ 5.5V | 1.8V ~ 5.5V |
| Data Converters | A/D 12x10b | A/D 12x10b | A/D 12x10b | A/D 12x10b | A/D 12x10b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package |
