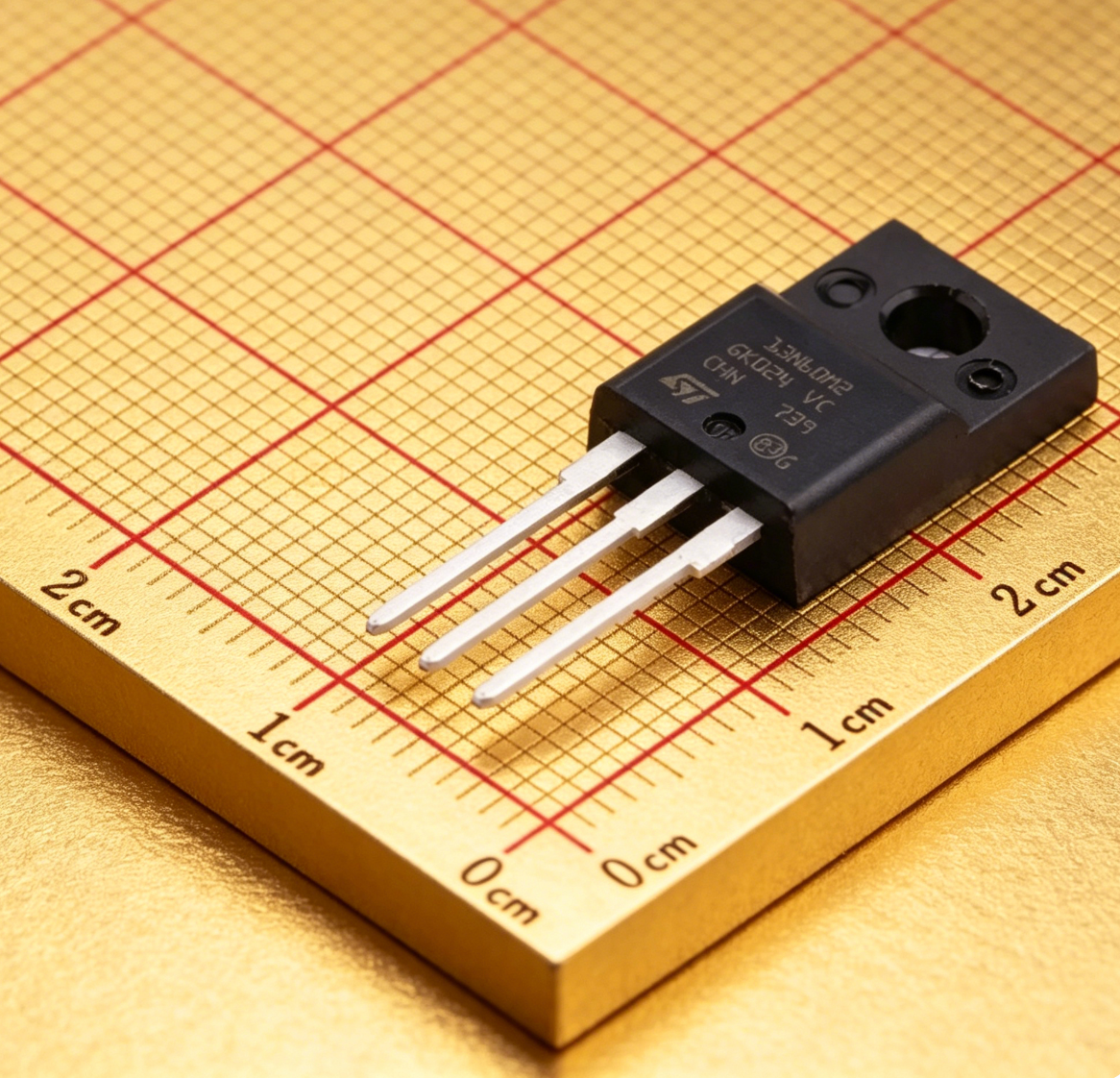

STMicroelectronics STF13N60M2
- Part No.:
- STF13N60M2
- Manufacturer:
- STMicroelectronics
- Category:
- Single FETs, MOSFETs
- Package:
- TO-220-3 Full Pack
- Description:
- STF13N60M2 - 600V N-Channel Power MOSFET (MDmesh™ M2, TO-220FP)STF13N60M2 is a high-voltage N-channel Power MOSFET from STMicroelectronics based on MDmesh™ M2 technology. It is designed for high-efficiency offline power conversion applications, offering …
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
STF13N60M2 - 600V N-Channel Power MOSFET (MDmesh™ M2, TO-220FP)
STF13N60M2 is a high-voltage N-channel Power MOSFET from STMicroelectronics based on MDmesh™ M2 technology. It is designed for high-efficiency offline power conversion applications, offering a balance of low conduction loss, fast switching speed, and robust avalanche capability.
This content is intended for engineering reference and component selection. Always verify final electrical characteristics with the official datasheet before production design.
Overview
STF13N60M2 is optimized for high-voltage switching applications such as SMPS, PFC stages, and industrial power systems. Using ST's MDmesh™ M2 process, it significantly improves switching efficiency compared to traditional MOSFET technologies.
With a 600V drain-source rating, this device is suitable for offline AC-DC conversion. It provides improved efficiency at medium-to-high frequency operation, making it a solid choice for energy-efficient power supply designs.
Key Advantages
MDmesh™ M2 structure reduces switching losses for improved power efficiency.
Suitable for offline SMPS and industrial AC-DC conversion systems.
Optimized RDS(on) helps reduce heat generation in continuous operation.
Good avalanche energy handling improves reliability in harsh conditions.
Feature Summary
600V rated for offline power applications.
Enhanced switching performance and reduced losses.
Supports higher frequency SMPS operation.
Robust design for industrial and power supply environments.
Package & Footprint

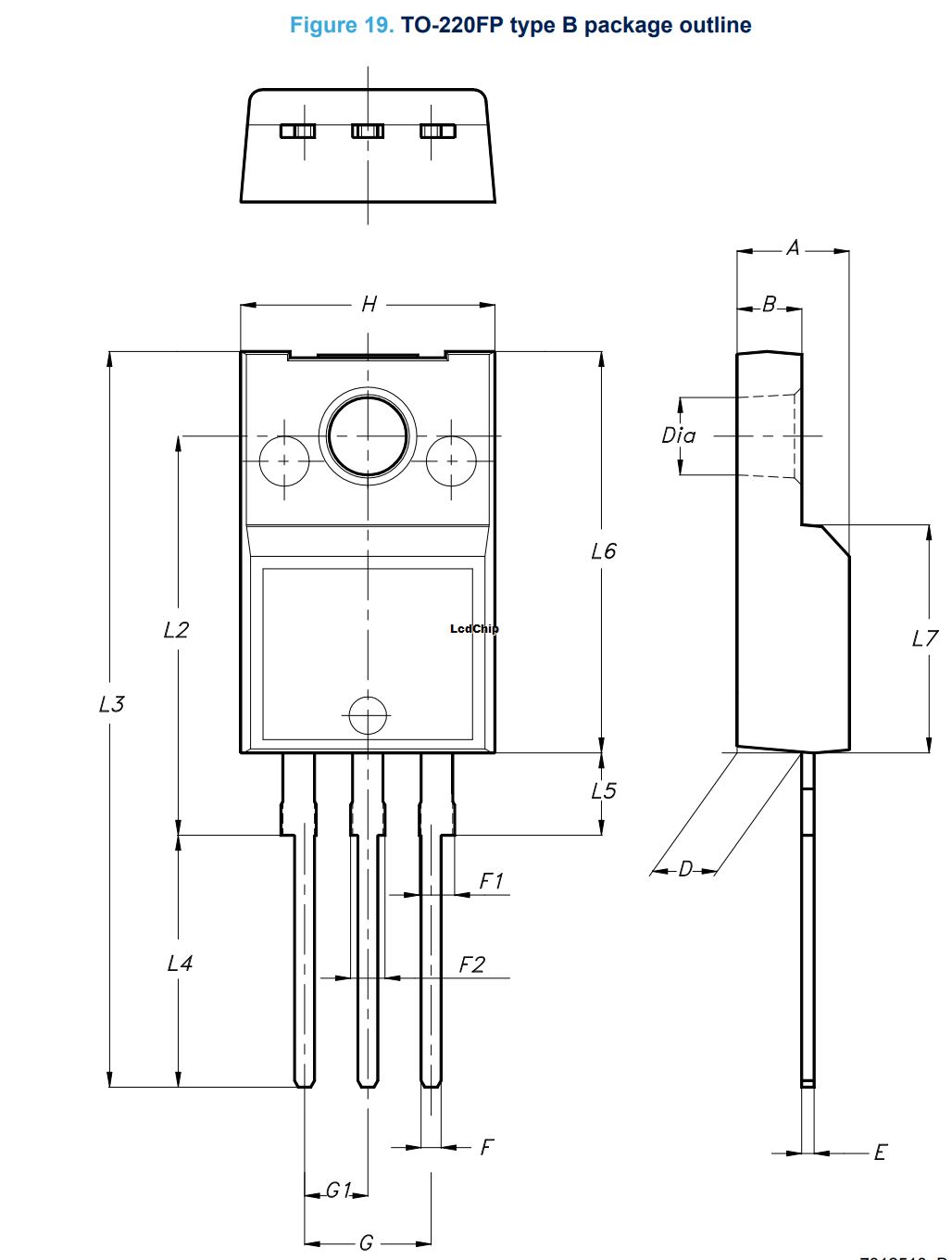

The STF13N60M2 is commonly available in a TO-220FP fully insulated package, which provides electrical isolation and simplified thermal design.
- Use proper heatsink for thermal dissipation in high-power operation.
- Insulated tab simplifies mounting without additional isolation pad.
- Follow recommended PCB layout for switching performance.
Always refer to the latest datasheet for exact mechanical dimensions.
Pin Functions

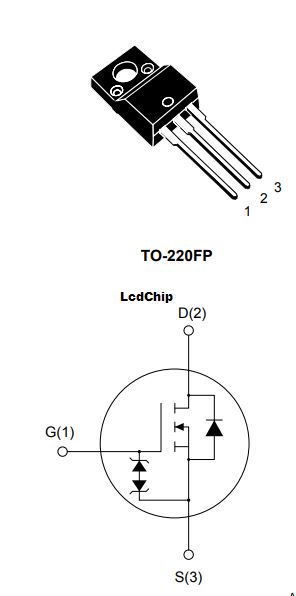

Standard MOSFET pin configuration is used for the STF13N60M2.
Key Specifications
| Device Type | N-Channel Power MOSFET |
|---|---|
| Technology | MDmesh™ M2 |
| Drain-Source Voltage | 600V |
| Continuous Drain Current | ~13A (typical class reference) |
| Package | TO-220FP |
| Mounting Type | Through Hole |
| Application | SMPS / PFC / Industrial Power |
| Operating Temperature | -55°C to +150°C |
| Base Product | STF13N60 |
Equivalent
Possible alternative MOSFETs with similar 600V class performance include:
- NCE65TF130F – NCE Power, 600V Super Junction MOSFET, similar SMPS use case
- CS10N65FA9R – CR Micro, 600–650V MOSFET, general-purpose switching
- RU65R580P – Ruichips, high-voltage SJ MOSFET alternative
- AP65AN750IN – APEC, high-voltage switching MOSFET for SMPS
Always validate RDS(on), gate charge, and switching loss before substitution.
Manufacturer Information
STMicroelectronics is a global semiconductor manufacturer specializing in power devices, analog ICs, and embedded solutions.
- Core products: Power MOSFETs, MCUs, analog ICs
- Main markets: Industrial, automotive, consumer electronics
- Support: Datasheets, application notes, reference designs
Applications
Typical use cases include:
SMPS Power Supply
Offline flyback and forward converters.
PFC Circuits
Power factor correction stages.
LED Drivers
High-efficiency lighting power systems.
Industrial Power
General AC-DC conversion systems.
Quality & Authenticity
- Incoming inspection and lot traceability
- ESD-safe handling procedures
- Counterfeit risk control for power devices
FAQ
Is STF13N60M2 suitable for SMPS?
What is MDmesh™ M2 technology?
Disclaimer
STF13N60M2 Information
- Specifications
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- STMicroelectronics
- Series:
- MDmesh™ II Plus
- Package/Case:
- TO-220-3 Full Pack
- Packaging:
- Tube
- Product Status:
- Active
- FET Type:
- N-Channel
- Technology:
- MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss):
- 600 V
- Current - Continuous Drain (Id) @ 25°C:
- 11A (Tc)
- Drive Voltage (Max Rds On, Min Rds On):
- 10V
- Rds On (Max) @ Id, Vgs:
- 380mOhm @ 5.5A, 10V
- Vgs(th) (Max) @ Id:
- 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs:
- 17 nC @ 10 V
- Vgs (Max):
- ±25V
- Input Capacitance (Ciss) (Max) @ Vds:
- 580 pF @ 100 V
- FET Feature:
- Power Dissipation (Max):
- 25W (Tc)
- Operating Temperature:
- -55°C ~ 150°C (TJ)
- Grade:
- Qualification:
- Mounting Type:
- Through Hole
- Supplier Device Package:
- TO-220FP
- Include Parts
- Popular Search
The following parts include "STF13N60M2" in Silicon Labs STF13N60M2.
- Part Number
- Manufacturer
- Package
- Description
- BSZ180P03NS3EGATMA1 Infineon Technologies 8-PowerTDFN MOSFET P-CH 30V 9A/39.5A TSDSON
- SIRA14DP-T1-GE3 Vishay Siliconix PowerPAK® SO-8 MOSFET N-CH 30V 58A PPAK SO-8
- AO4419 Alpha & Omega Semiconductor Inc. 8-SOIC (0.154", 3.90mm Width) MOSFET P-CH 30V 9.7A 8SOIC
- SISA14BDN-T1-GE3 Vishay Siliconix PowerPAK® 1212-8 N-CHANNEL 30-V (D-S) MOSFET POWE
- PSMN9R5-30YLC,115 Nexperia USA Inc. SC-100, SOT-669 MOSFET N-CH 30V 44A LFPAK56
- BUK9Y21-40E,115 Nexperia USA Inc. SC-100, SOT-669 MOSFET N-CH 40V 33A LFPAK56
- RTQ035N03HZGTR Rohm Semiconductor SOT-23-6 Thin, TSOT-23-6 MOSFET N-CH 30V 3.5A TSMT6
- FDMS7680 onsemi 8-PowerTDFN MOSFET N-CH 30V 14A/28A 8PQFN
- RQ3E180BNTB Rohm Semiconductor 8-PowerVDFN MOSFET N-CHANNEL 30V 39A 8HSMT
- STL6N2VH5 STMicroelectronics 6-PowerWDFN MOSFET N-CH 20V POWERFLAT
