Abracon LLC AST3TQ-T-40.000MHZ-28
- Part No.:
- AST3TQ-T-40.000MHZ-28
- Manufacturer:
- Abracon LLC
- Category:
- Oscillators
- Package:
- 4-SMD, No Lead
- Datasheet:
-
AST3TQ-T-40.000MHZ-28.pdf
- Description:
- XTAL OSC TCXO 40.0000MHZ LVCMOS
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
AST3TQ-T-40.000MHZ-28 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Abracon LLC
- Series:
- AST3TQ-28
- Package/Case:
- 4-SMD, No Lead
- Packaging:
- Strip
- Product Status:
- Active
- Base Resonator:
- Crystal
- Type:
- TCXO
- Frequency:
- 40 MHz
- Function:
- -
- Output:
- LVCMOS
- Voltage - Supply:
- 3.3V
- Frequency Stability:
- ±280ppb
- Absolute Pull Range (APR):
- -
- Operating Temperature:
- -40°C ~ 85°C
- Spread Spectrum Bandwidth:
- -
- Current - Supply (Max):
- 7mA
- Ratings:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 4-VDFN (3.2x2.5)
- Size / Dimension:
- 0.276" L x 0.197" W (7.00mm x 5.00mm)
- Height - Seated (Max):
- 0.079" (2.00mm)
| Image |  |
|
 |
 |
|

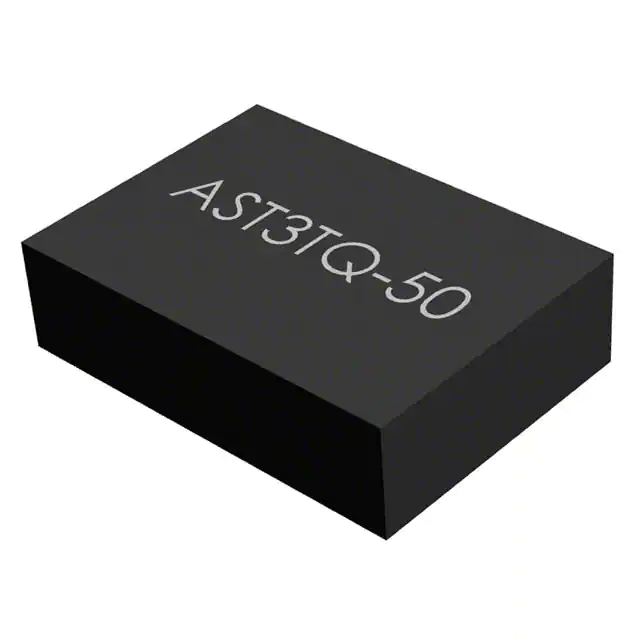

| Part Number | AST3TQ-T-40.000MHZ-28 | AST3TQ-T-25.000MHZ-28 | AST3TQ53-T-40.000MHZ-2-C-T5 | AST3TQ-T-10.000MHZ-50-C | AST3TQ-T-40.000MHZ-50-C |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Series | AST3TQ-28 | AST3TQ-28 | AST3TQ53 | AST3TQ-50 | AST3TQ-50 |
| Package/Case | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead |
| Packaging | Strip | Strip | Tape & Reel (TR) | Strip | Strip |
| Product Status | Active | Active | Active | Active | Active |
| Base Resonator | Crystal | Crystal | Crystal | Crystal | Crystal |
| Type | TCXO | TCXO | TCXO | TCXO | TCXO |
| Frequency | 40 MHz | 25 MHz | 40 MHz | 10 MHz | 40 MHz |
| Function | - | - | - | - | - |
| Output | LVCMOS | LVCMOS | LVCMOS | LVCMOS | LVCMOS |
| Voltage - Supply | 3.3V | 3.3V | 3.3V | 3.3V | 3.3V |
| Frequency Stability | ±280ppb | ±280ppb | ±280ppb | ±50ppb | ±50ppb |
| Absolute Pull Range (APR) | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - | - | - | - | - |
| Current - Supply (Max) | 7mA | 7mA | 6mA | 7mA | 7mA |
| Ratings | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 4-VDFN (3.2x2.5) | 4-VDFN (3.2x2.5) | 4-VDFN (3.2x2.5) | 4-VDFN (3.2x2.5) | 4-VDFN (3.2x2.5) |
| Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.205" L x 0.134" W (5.20mm x 3.40mm) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| Height - Seated (Max) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.063" (1.60mm) | 0.079" (2.00mm) | 0.079" (2.00mm) |
