Abracon LLC ASEK-32.768KHZ-L-R-T
- Part No.:
- ASEK-32.768KHZ-L-R-T
- Manufacturer:
- Abracon LLC
- Category:
- Oscillators
- Package:
- 4-SMD, No Lead
- Datasheet:
-
ASEK-32.768KHZ-L-R-T.pdf
- Description:
- XTAL OSC XO 32.7680KHZ CMOS SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
ASEK-32.768KHZ-L-R-T Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Abracon LLC
- Series:
- ASEK
- Package/Case:
- 4-SMD, No Lead
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Base Resonator:
- Crystal
- Type:
- XO (Standard)
- Frequency:
- 32.768 kHz
- Function:
- Enable/Disable
- Output:
- CMOS
- Voltage - Supply:
- 3.3V
- Frequency Stability:
- ±25ppm
- Absolute Pull Range (APR):
- -
- Operating Temperature:
- -40°C ~ 85°C
- Spread Spectrum Bandwidth:
- -
- Current - Supply (Max):
- 3.5mA
- Ratings:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 4-VDFN (3.2x2.5)
- Size / Dimension:
- 0.126" L x 0.098" W (3.20mm x 2.50mm)
- Height - Seated (Max):
- 0.047" (1.20mm)
| Image |  |
 |
|
 |
|

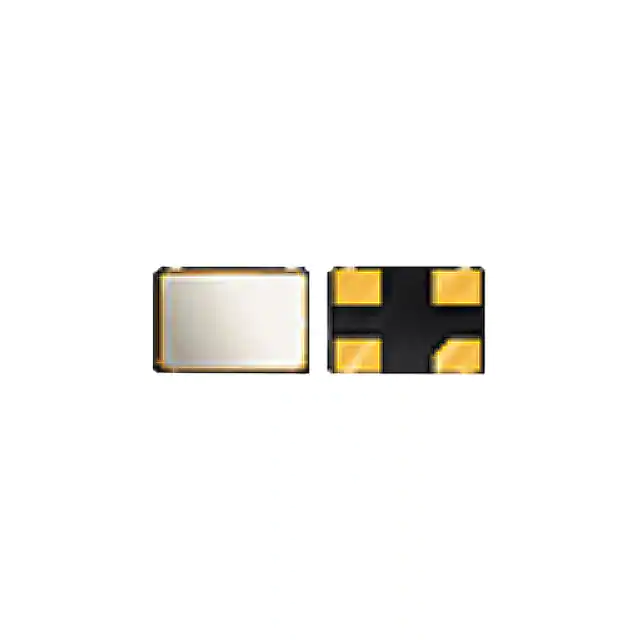

| Part Number | ASEK-32.768KHZ-L-R-T | ASEKDVAIG-32.768KHZ-KC-T3 | ASEK2-32.768KHZ-L-R-T | ASEKDV-32.768KHZ-LC-T | ASEKDV-32.768KHZ-LR-T |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Series | ASEK | ASEKDVAIG | ASEK | ASEKDV | ASEKDV |
| Package/Case | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Base Resonator | Crystal | Crystal | Crystal | Crystal | Crystal |
| Type | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) |
| Frequency | 32.768 kHz | 32.768 kHz | 32.768 kHz | 32.768 kHz | 32.768 kHz |
| Function | Enable/Disable | Enable/Disable | Enable/Disable | Enable/Disable | Enable/Disable |
| Output | CMOS | CMOS | CMOS | CMOS | CMOS |
| Voltage - Supply | 3.3V | 1.62V ~ 3.63V | 1.8V | 1.62V ~ 3.63V | 1.62V ~ 3.63V |
| Frequency Stability | ±25ppm | ±50ppm | ±25ppm | ±50ppm | ±25ppm |
| Absolute Pull Range (APR) | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 125°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - | - | - | - | - |
| Current - Supply (Max) | 3.5mA | 15µA | 1.5mA | 15µA | 15µA |
| Ratings | - | AEC-Q200 | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 4-VDFN (3.2x2.5) | 4-VDFN (3.2x2.5) | 4-VDFN (3.2x2.5) | - | - |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.047" (1.20mm) | 0.047" (1.20mm) | 0.047" (1.20mm) | 0.047" (1.20mm) | 0.047" (1.20mm) |
