Abracon LLC ASAK-32.768KHZ-LRS-T
- Part No.:
- ASAK-32.768KHZ-LRS-T
- Manufacturer:
- Abracon LLC
- Category:
- Oscillators
- Package:
- 4-SMD, No Lead
- Datasheet:
-
ASAK-32.768KHZ-LRS-T.pdf
- Description:
- XTAL OSC XO 32.7680KHZ LVCMOS
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
ASAK-32.768KHZ-LRS-T Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Abracon LLC
- Series:
- ASAK
- Package/Case:
- 4-SMD, No Lead
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Base Resonator:
- Crystal
- Type:
- XO (Standard)
- Frequency:
- 32.768 kHz
- Function:
- Enable/Disable
- Output:
- LVCMOS
- Voltage - Supply:
- 3.3V
- Frequency Stability:
- ±25ppm
- Absolute Pull Range (APR):
- -
- Operating Temperature:
- -40°C ~ 85°C
- Spread Spectrum Bandwidth:
- -
- Current - Supply (Max):
- 240µA
- Ratings:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 4-VDFN (3.2x2.5)
- Size / Dimension:
- 0.079" L x 0.063" W (2.00mm x 1.60mm)
- Height - Seated (Max):
- 0.031" (0.80mm)

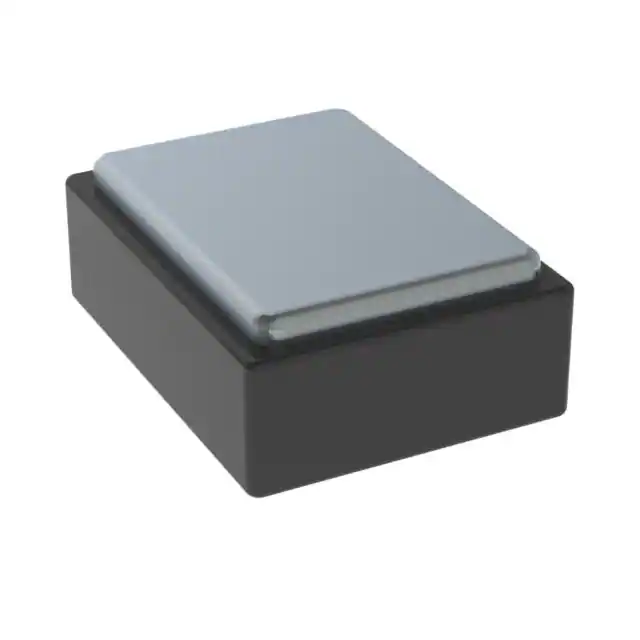

| Image |  |
|
.JPG) |
 |
|
| Part Number | ASAK-32.768KHZ-LRS-T | ASAK2-32.768KHZ-LRS-T | ASAKMPD1-32.768KHZ-T3 | ASAKDVAIG-32.768KHZ-KC-T3 | ASAKMPA1-32.768KHZ-T3 |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Series | ASAK | ASAK | ASAKMP | ASAKDVAIG | ASAKMP |
| Package/Case | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Base Resonator | Crystal | Crystal | Crystal | Crystal | - |
| Type | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) |
| Frequency | 32.768 kHz | 32.768 kHz | 32.768 kHz | 32.768 kHz | 32.768 kHz |
| Function | Enable/Disable | Enable/Disable | Enable/Disable | Enable/Disable | Enable/Disable |
| Output | LVCMOS | LVCMOS | CMOS | CMOS | CMOS |
| Voltage - Supply | 3.3V | 1.8V | 1.6V ~ 3.63V | 1.62V ~ 3.63V | 3.3V |
| Frequency Stability | ±25ppm | ±25ppm | ±10ppm | ±50ppm | ±10ppm |
| Absolute Pull Range (APR) | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -20°C ~ 70°C | -40°C ~ 125°C | -20°C ~ 70°C |
| Spread Spectrum Bandwidth | - | - | - | - | - |
| Current - Supply (Max) | 240µA | 240µA | 30µA | 100µA | 30µA |
| Ratings | - | - | - | AEC-Q200 | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 4-VDFN (3.2x2.5) | 4-VDFN (3.2x2.5) | 4-VDFN (3.2x2.5) | 4-VDFN (3.2x2.5) | 4-VDFN (3.2x2.5) |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.063" L x 0.047" W (1.60mm x 1.20mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| Height - Seated (Max) | 0.031" (0.80mm) | 0.031" (0.80mm) | 0.028" (0.70mm) | 0.031" (0.80mm) | 0.028" (0.70mm) |
