Abracon LLC APRG2512F01
- Part No.:
- APRG2512F01
- Manufacturer:
- Abracon LLC
- Category:
- RF Antennas
- Package:
- Datasheet:
-
APRG2512F01.pdf
- Description:
- COMBO GPS L1+L2, GLONASS, IRIDIU
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
APRG2512F01 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Abracon LLC
- Series:
- -
- Packaging:
- Tray
- Product Status:
- Active
- RF Family/Standard:
- Iridium, Navigation
- Frequency Group:
- UHF (1GHz ~ 2GHz)
- Frequency (Center/Band):
- 1.227GHz, 1.575GHz, 1.602GHz, 1.625GHz
- Frequency Range:
- 1.217GHz ~ 1.237GHz, 1.574GHz ~ 1.576GHz, 1.594GHz ~ 1.61GHz
- Antenna Type:
- Ceramic Patch
- Number of Bands:
- 3
- VSWR:
- 2
- Return Loss:
- -20.56dB, 13.22dBi, -12.42dBi
- Gain:
- 1.5dBi, 0dBi, -0.5dBi, 0.5dBi
- Power - Max:
- -
- Features:
- Cable - 100mm, LNA, Filter
- Termination:
- I-PEX
- Ingress Protection:
- -
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Height (Max):
- 0.488" (12.40mm)
- Applications:
- Iridium, Galileo, GLONASS, GPS

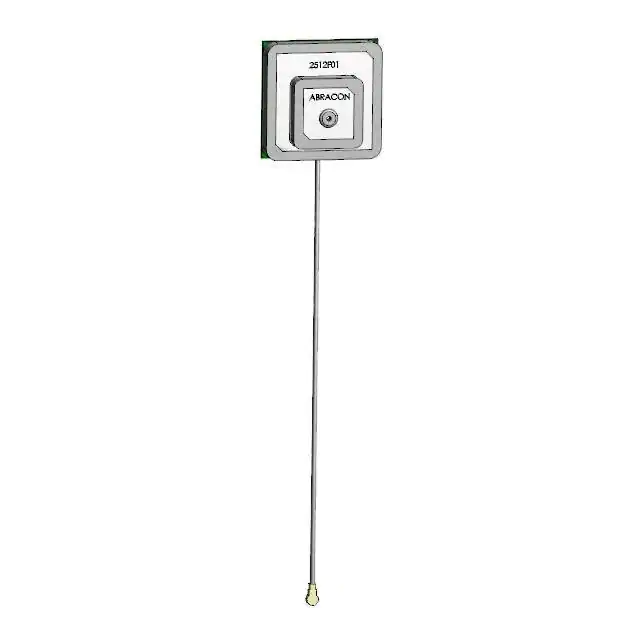

| Image |  |
 |
 |
| Part Number | APRG2512F01-0400G | APRG2512F01-0100S | APRG2512F01 |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC |
| Series | - | APR | - |
| Packaging | Bulk | Tray | Tray |
| Product Status | Active | Active | Active |
| RF Family/Standard | Navigation | Iridium, Navigation | Iridium, Navigation |
| Frequency Group | Wide Band | UHF (1GHz ~ 2GHz) | UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 1.227GHz, 1.575GHz, 1.602GHz, 1.625GHz | 1.227GHz, 1.575GHz, 1.602GHz, 1.625GHz | 1.227GHz, 1.575GHz, 1.602GHz, 1.625GHz |
| Frequency Range | 1.217GHz ~ 1.237GHz, 1.574GHz ~ 1.576GHz, 1.594GHz ~ 1.61GHz | 1.215GHz ~ 1.239GHz, 1.575GHz, 1.602GHz, 1.625GHz | 1.217GHz ~ 1.237GHz, 1.574GHz ~ 1.576GHz, 1.594GHz ~ 1.61GHz |
| Antenna Type | Ceramic Patch | Ceramic Patch | Ceramic Patch |
| Number of Bands | 4 | 4 | 3 |
| VSWR | 1.21, 1.48, 1.63 | 1.63 | 2 |
| Return Loss | -20.56dB, -13.22dB, -12.42dB | - | -20.56dB, 13.22dBi, -12.42dBi |
| Gain | 1.5dBi, 0dBi, -0.5dBi, 0.5dBi | 28dBi | 1.5dBi, 0dBi, -0.5dBi, 0.5dBi |
| Power - Max | - | - | - |
| Features | Cable - 400mm, LNA, Filter | Cable - 100mm | Cable - 100mm, LNA, Filter |
| Termination | SMA Male | I-PEX-1(F) | I-PEX |
| Ingress Protection | - | - | - |
| Grade | - | - | - |
| Qualification | - | - | - |
| Mounting Type | Connector Mount | Connector Mount | Surface Mount |
| Height (Max) | 0.488" (12.40mm) | 0.488" (12.40mm) | 0.488" (12.40mm) |
| Applications | GPS, IoT, Iridium™, M2M | Iridium, GLONASS, GPS | Iridium, Galileo, GLONASS, GPS |
