Kingbright APL3015QBC/G-F01
- Part No.:
- APL3015QBC/G-F01
- Manufacturer:
- Kingbright
- Category:
- LED Indication - Discrete
- Package:
- 2-SMD, No Lead
- Datasheet:
-
APL3015QBC/G-F01.pdf
- Description:
- 3.0X1.5MM (1106) BLUE SMD LED
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
APL3015QBC/G-F01 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Kingbright
- Series:
- -
- Package/Case:
- 2-SMD, No Lead
- Packaging:
- Bulk
- Product Status:
- Active
- Color:
- Blue
- Configuration:
- Independent
- Lens Color:
- Colorless
- Lens Transparency:
- Clear
- Millicandela Rating:
- 300mcd
- Lens Style:
- Round with Domed Top
- Lens Size:
- 0.18mm Dia
- Voltage - Forward (Vf) (Typ):
- 3.3V
- Current - Test:
- 20mA
- Viewing Angle:
- 70°
- Mounting Type:
- Surface Mount
- Wavelength - Dominant:
- 465nm
- Wavelength - Peak:
- 461nm
- Features:
- -
- Grade:
- -
- Qualification:
- -
- Supplier Device Package:
- 2-SMD
- Size / Dimension:
- 3.00mm L x 1.50mm W

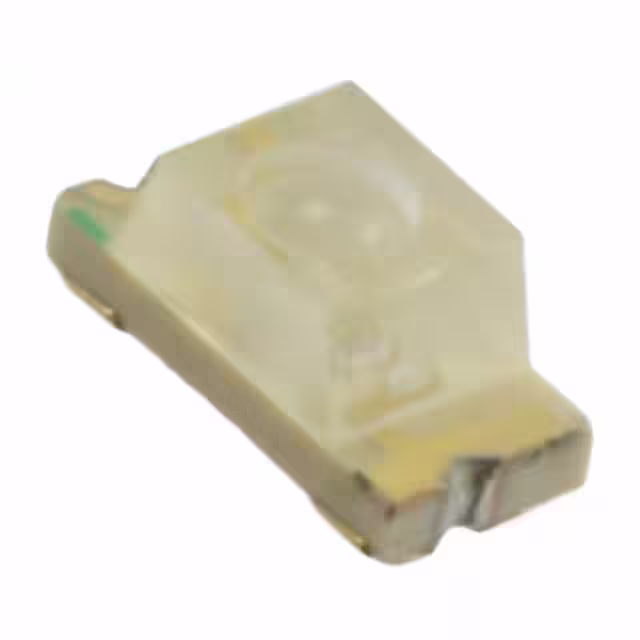

| Image |  |
 |
| Part Number | APL3015QBC/D-F01 | APL3015QBC/G-F01 |
| Manufacturer | Kingbright | Kingbright |
| Series | - | - |
| Package/Case | 2-SMD, No Lead | 2-SMD, No Lead |
| Packaging | Tape & Reel (TR) | Bulk |
| Product Status | Active | Active |
| Color | Blue | Blue |
| Configuration | Standard | Independent |
| Lens Color | Colorless | Colorless |
| Lens Transparency | Clear | Clear |
| Millicandela Rating | 200mcd | 300mcd |
| Lens Style | Round with Flat Top | Round with Domed Top |
| Lens Size | 0.18mm Dia | 0.18mm Dia |
| Voltage - Forward (Vf) (Typ) | 3.3V | 3.3V |
| Current - Test | 20mA | 20mA |
| Viewing Angle | 70° | 70° |
| Mounting Type | Surface Mount | Surface Mount |
| Wavelength - Dominant | 465nm | 465nm |
| Wavelength - Peak | 460nm | 461nm |
| Features | - | - |
| Grade | - | - |
| Qualification | - | - |
| Supplier Device Package | Chip LED | 2-SMD |
| Size / Dimension | 3.00mm L x 1.50mm W | 3.00mm L x 1.50mm W |
