Abracon LLC APAMP-116
- Part No.:
- APAMP-116
- Manufacturer:
- Abracon LLC
- Category:
- RF Antennas
- Package:
- Datasheet:
-
APAMP-116.pdf
- Description:
- RF ANT 1.575GHZ MOD SMA MALE ADH
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
APAMP-116 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Abracon LLC
- Series:
- APAMP
- Packaging:
- Bulk
- Product Status:
- Active
- RF Family/Standard:
- Navigation
- Frequency Group:
- UHF (1GHz ~ 2GHz)
- Frequency (Center/Band):
- 1.575GHz
- Frequency Range:
- 1.574GHz ~ 1.576GHz
- Antenna Type:
- Module
- Number of Bands:
- 1
- VSWR:
- 1.5
- Return Loss:
- -
- Gain:
- 5dBic
- Power - Max:
- -
- Features:
- Cable - 3m, LNA
- Termination:
- SMA Male
- Ingress Protection:
- -
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Adhesive
- Height (Max):
- 0.571" (14.50mm)
- Applications:
- GPS
| Image |  |
 |
 |
 |
 |

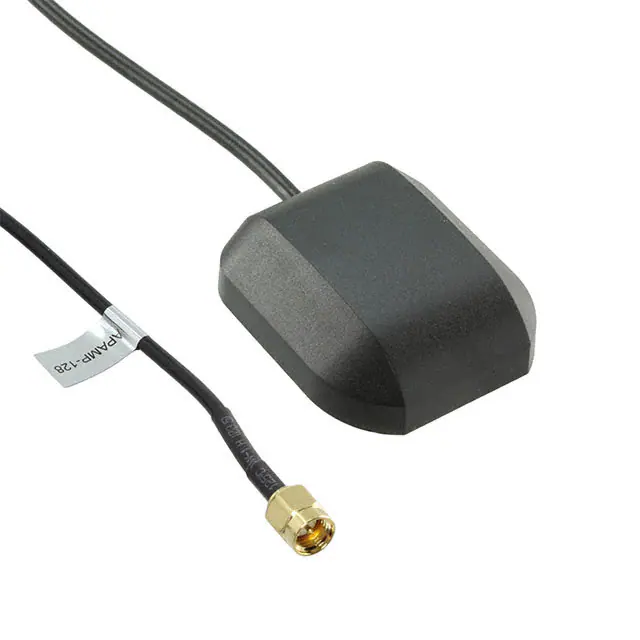

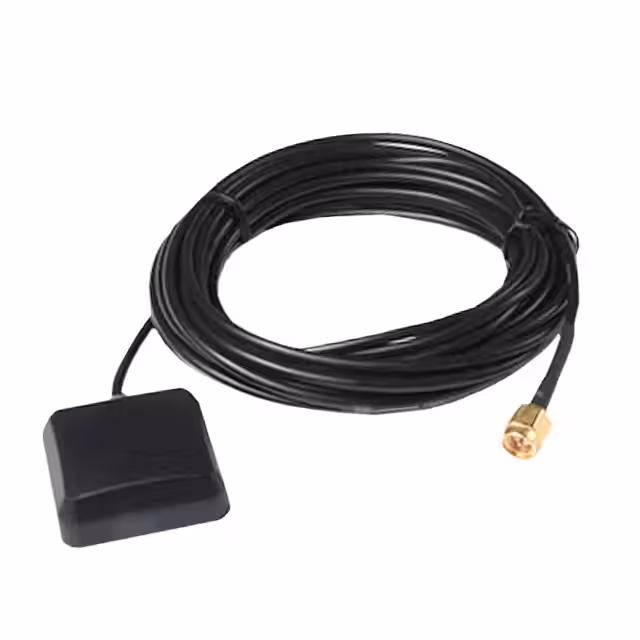

| Part Number | APAMP-116 | APAMP-111 | APAMPG-130 | APAMP-128 | APAMP-123 |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Series | APAMP | APAMP | APAMPG | APAMP | APAMP |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| RF Family/Standard | Navigation | Navigation | Navigation | Navigation | Navigation |
| Frequency Group | UHF (1GHz ~ 2GHz) | UHF (1GHz ~ 2GHz) | UHF (1GHz ~ 2GHz) | UHF (1GHz ~ 2GHz) | UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 1.575GHz | 1.575GHz | 1.575GHz, 1.602GHz | 1.575GHz | 1.575GHz |
| Frequency Range | 1.574GHz ~ 1.576GHz | 1.574GHz ~ 1.576GHz | 1.572GHz ~ 1.578GHz, 1.594GHz ~ 1.61GHz | 1.574GHz ~ 1.576GHz | 1.574GHz ~ 1.576GHz |
| Antenna Type | Module | Module | Dome | Dome | Module |
| Number of Bands | 1 | 1 | 2 | 1 | 1 |
| VSWR | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Return Loss | - | -32dB | - | - | - |
| Gain | 5dBic | 5dBic | 30dB | 3.5dBic | 5dBic |
| Power - Max | - | - | - | - | - |
| Features | Cable - 3m, LNA | - | - | - | Cable - 3m, LNA |
| Termination | SMA Male | SMA Male | SMA Male | SMA Male | SMA Male |
| Ingress Protection | - | - | - | - | - |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Adhesive | Adhesive | Magnetic | Magnetic | Magnetic |
| Height (Max) | 0.571" (14.50mm) | 0.472" (12.00mm) | 0.610" (15.50mm) | 0.531" (13.50mm) | 0.594" (15.10mm) |
| Applications | GPS | GPS | GLONASS, GPS | GPS | GPS |
