Taoglas Limited AP.17E.07.0064A
- Part No.:
- AP.17E.07.0064A
- Manufacturer:
- Taoglas Limited
- Category:
- RF Antennas
- Package:
- Datasheet:
-
AP.17E.07.0064A.pdf
- Description:
- RF ANT 1.575GHZ CER PATCH MHFI
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
AP.17E.07.0064A Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Taoglas Limited
- Series:
- -
- Packaging:
- Tray
- Product Status:
- Active
- RF Family/Standard:
- Navigation
- Frequency Group:
- UHF (1GHz ~ 2GHz)
- Frequency (Center/Band):
- 1.575GHz
- Frequency Range:
- -
- Antenna Type:
- Ceramic Patch
- Number of Bands:
- 1
- VSWR:
- 2
- Return Loss:
- -
- Gain:
- -1dBic
- Power - Max:
- -
- Features:
- LNA, Filter
- Termination:
- U.FL (UMCC), I-PEX MHF1
- Ingress Protection:
- -
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Adhesive
- Height (Max):
- 0.157" (4.00mm)
- Applications:
- GPS
| Image |  |
 |
 |
 |
 |

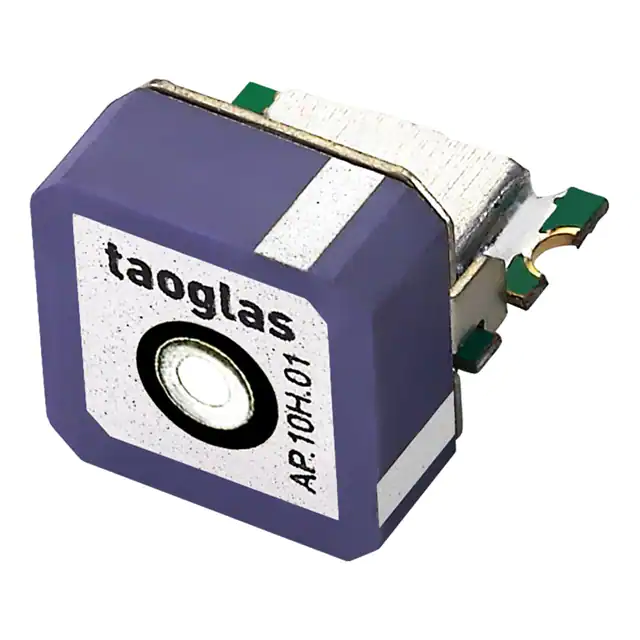

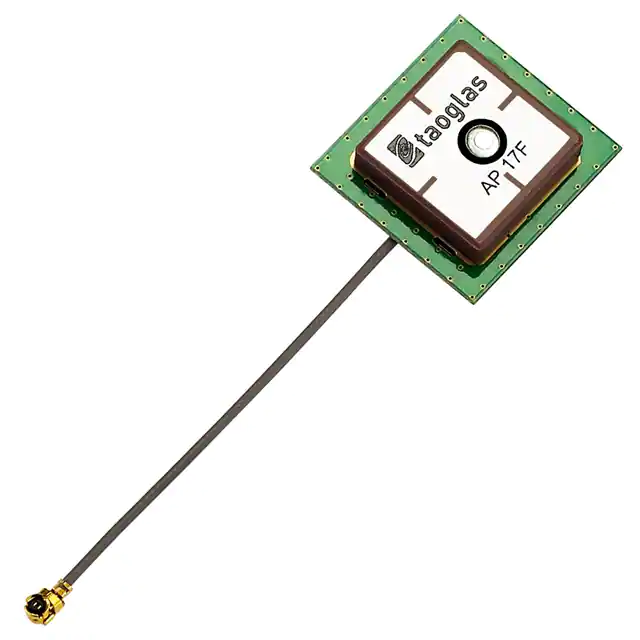

| Part Number | AP.17E.07.0064A | AP.12F.07.0045A | AP.10F.07.0039B | AP.10H.01 | AP.17F.07.0064A |
| Manufacturer | Taoglas Limited | Taoglas Limited | Taoglas Limited | Taoglas Limited | Taoglas Limited |
| Series | - | - | - | - | - |
| Packaging | Tray | Tray | Tray | Tape & Reel (TR) | Tray |
| Product Status | Active | Active | Active | Active | Active |
| RF Family/Standard | Navigation | Navigation | Navigation | Navigation | Navigation |
| Frequency Group | UHF (1GHz ~ 2GHz) | UHF (1GHz ~ 2GHz) | UHF (1GHz ~ 2GHz) | UHF (1GHz ~ 2GHz) | UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 1.575GHz | 1.575GHz | 1.575GHz | 1.575GHz | 1.575GHz |
| Frequency Range | - | - | 1.574GHz ~ 1.576GHz | - | - |
| Antenna Type | Ceramic Patch | Ceramic Patch | Ceramic Patch | Ceramic Patch | Ceramic Patch |
| Number of Bands | 1 | 1 | 1 | 1 | 1 |
| VSWR | 2 | 2 | 2 | 2 | 2 |
| Return Loss | - | - | - | - | - |
| Gain | -1dBic | -5dBic | -10dBic | -10dBic | -1.5dBic |
| Power - Max | - | - | - | - | - |
| Features | LNA, Filter | LNA, Filter | Cable - 39mm, LNA, Filter | LNA, Filter | LNA, Filter |
| Termination | U.FL (UMCC), I-PEX MHF1 | U.FL (UMCC), I-PEX MHF1 | U.FL (UMCC), I-PEX MHF1 | Solder | U.FL (UMCC), I-PEX MHF1 |
| Ingress Protection | - | - | - | - | - |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Adhesive | Adhesive | Surface Mount | Surface Mount | Surface Mount |
| Height (Max) | 0.157" (4.00mm) | 0.138" (3.50mm) | 0.244" (6.20mm) | 0.157" (4.00mm) | 0.157" (4.00mm) |
| Applications | GPS | GPS | GPS | GPS | GPS |
