RF Solutions ANT-STUB-433SM
- Part No.:
- ANT-STUB-433SM
- Manufacturer:
- RF Solutions
- Category:
- RF Antennas
- Package:
- Datasheet:
-
ANT-STUB-433SM.pdf
- Description:
- RF ANT 433MHZ WHIP STR SMA 48MM
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
ANT-STUB-433SM Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- RF Solutions
- Series:
- -
- Packaging:
- Bulk
- Product Status:
- Active
- RF Family/Standard:
- -
- Frequency Group:
- UHF (300MHz ~ 1GHz)
- Frequency (Center/Band):
- 433MHz
- Frequency Range:
- -
- Antenna Type:
- Whip, Straight
- Number of Bands:
- 1
- VSWR:
- 2
- Return Loss:
- -20.1dB
- Gain:
- 0dBi
- Power - Max:
- -
- Features:
- -
- Termination:
- SMA Male
- Ingress Protection:
- -
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Connector Mount
- Height (Max):
- 1.894" (48.12mm)
- Applications:
- -
| Image |  |
 |
 |
 |
 |

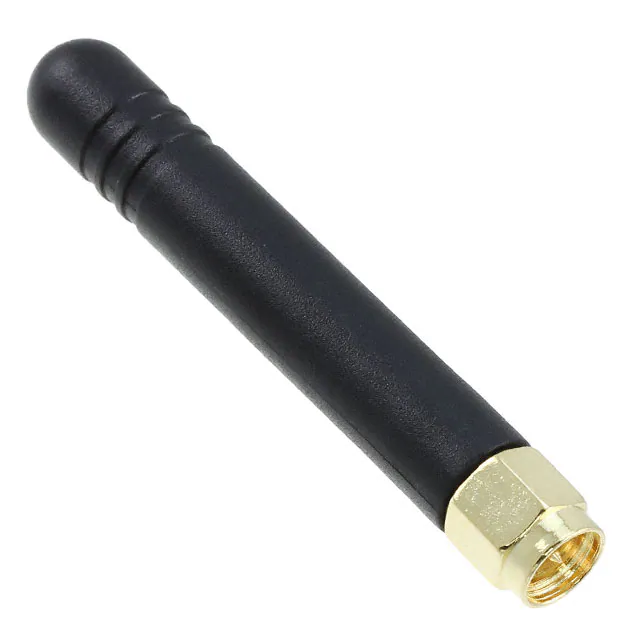

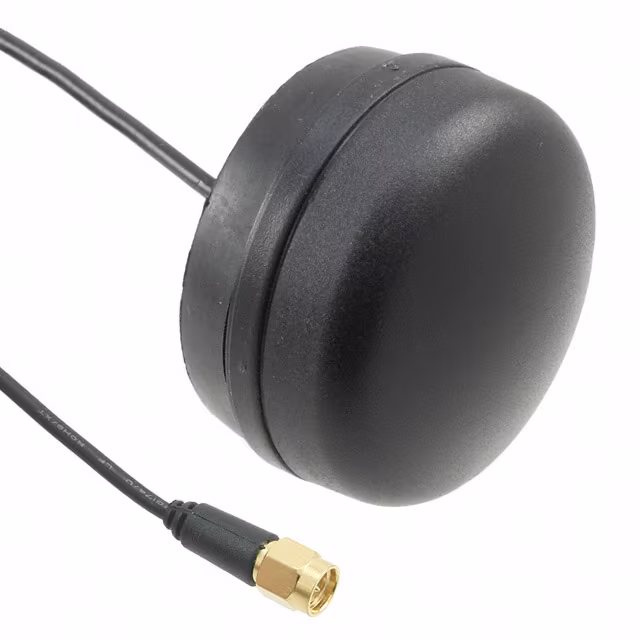

| Part Number | ANT-4WHIP3H-SMA | ANT-8WHIP3H-SMA | ANT-STUB-433SM | ANT-GSMPUKS-IP67 | ANT-GHEL2-SMA |
| Manufacturer | RF Solutions | RF Solutions | RF Solutions | RF Solutions | RF Solutions |
| Series | - | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| RF Family/Standard | - | - | - | Cellular | - |
| Frequency Group | UHF (300MHz ~ 1GHz) | UHF (300MHz ~ 1GHz) | UHF (300MHz ~ 1GHz) | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 433MHz | 868MHz | 433MHz | 900MHz, 1.9GHz | 920MHz, 1.8GHz |
| Frequency Range | - | - | - | 850MHz ~ 950MHz, 1.77GHz ~ 2.1GHz | 890MHz ~ 960MHz, 1.71GHz ~ 1.88GHz |
| Antenna Type | Whip, Tilt | Whip, Tilt | Whip, Straight | Puck | Whip, Straight |
| Number of Bands | 1 | 1 | 1 | 2 | 2 |
| VSWR | 2 | - | 2 | 2 | 2 |
| Return Loss | - | - | -20.1dB | - | - |
| Gain | 2dBi | 3dBi | 0dBi | 2dBi | 2dBi |
| Power - Max | - | - | - | - | - |
| Features | - | - | - | Cable - 3m | - |
| Termination | SMA Male | SMA Male | SMA Male | SMA Male | SMA Male |
| Ingress Protection | - | - | - | IP67 | - |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Connector Mount | Connector Mount | Connector Mount | Panel Mount | Connector Mount |
| Height (Max) | 8.504" (216.00mm) | 8.268" (210.00mm) | 1.894" (48.12mm) | 0.917" (23.30mm) | 2.323" (59.00mm) |
| Applications | - | - | - | GSM | General Purpose |
