Taoglas Limited AGGBP.25A.07.0060A
- Part No.:
- AGGBP.25A.07.0060A
- Manufacturer:
- Taoglas Limited
- Category:
- RF Antennas
- Package:
- Datasheet:
-
AGGBP.25A.07.0060A.pdf
- Description:
- RF ANT 1.575/1.602GHZ CER 60MM
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
AGGBP.25A.07.0060A Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Taoglas Limited
- Series:
- -
- Packaging:
- Tray
- Product Status:
- Active
- RF Family/Standard:
- Navigation
- Frequency Group:
- UHF (1GHz ~ 2GHz)
- Frequency (Center/Band):
- 1.575GHz, 1.602GHz
- Frequency Range:
- 1.575GHz ~ 1.602GHz
- Antenna Type:
- Ceramic Patch
- Number of Bands:
- 2
- VSWR:
- 2
- Return Loss:
- -
- Gain:
- -1dBi
- Power - Max:
- -
- Features:
- LNA, Filter
- Termination:
- U.FL (UMCC), I-PEX MHF1
- Ingress Protection:
- -
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Height (Max):
- 0.311" (7.90mm)
- Applications:
- Beidou, Galileo, GLONASS, GPS
| Image |  |
 |
 |
 |
 |

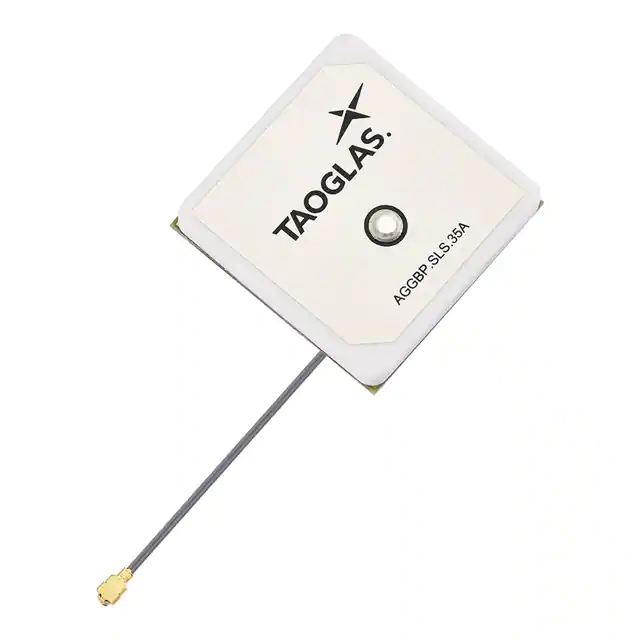

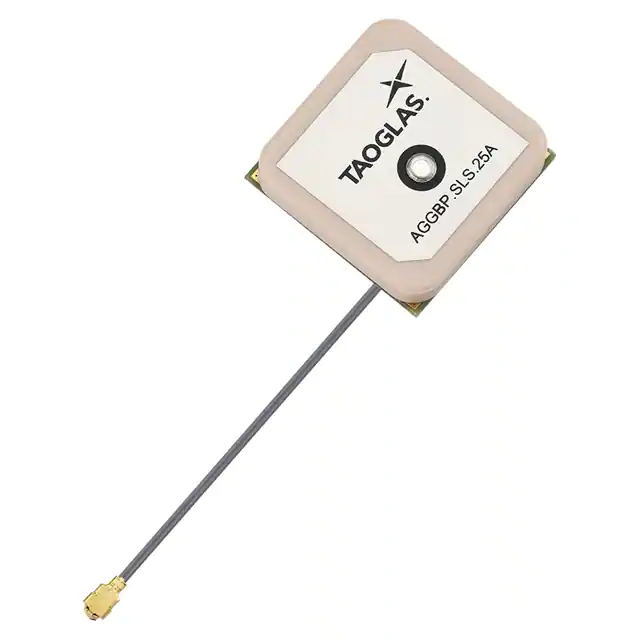

| Part Number | AGGBP.25A.07.0060A | AGGBP.25B.07.0060A | AGGBP.SLS.25A.07.0060A | AGGBP.SLS.35A.07.0060A | AGGBP.SL.25A.07.0060A |
| Manufacturer | Taoglas Limited | Taoglas Limited | Taoglas Limited | Taoglas Limited | Taoglas Limited |
| Series | - | - | - | - | - |
| Packaging | Tray | Tray | Tray | Tray | Tray |
| Product Status | Active | Active | Active | Active | Active |
| RF Family/Standard | Navigation | Navigation | Navigation | Navigation | Navigation |
| Frequency Group | UHF (1GHz ~ 2GHz) | UHF (1GHz ~ 2GHz) | UHF (1GHz ~ 2GHz) | UHF (1GHz ~ 2GHz) | UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 1.575GHz, 1.602GHz | 1.561GHz, 1.575GHz, 1.602GHz | 1.561GHz, 1.575GHz, 1.602GHz | 1.561GHz, 1.575GHz, 1.602GHz | 1.561GHz, 1.575GHz, 1.602GHz |
| Frequency Range | 1.575GHz ~ 1.602GHz | 1.559GHz ~ 1.61GHz | - | - | - |
| Antenna Type | Ceramic Patch | Ceramic Patch | Ceramic Patch | Ceramic Patch | Ceramic Patch |
| Number of Bands | 2 | 3 | 3 | 3 | 3 |
| VSWR | 2 | 2 | - | - | - |
| Return Loss | - | - | - | - | - |
| Gain | -1dBi | 27dBi, 25.5dBi, 26dBi | 2.44dBi, 1.72dBi, 1.67dBi | 2.79dBi, 2.23dBi, 1.32dBi | 2.44dBi, 1.72dBi, 1.67dBi |
| Power - Max | - | - | - | - | - |
| Features | LNA, Filter | Cable - 60mm, LNA, Filter | Cable - 60mm, LNA, Filter | Cable - 60mm, LNA, Filter | Cable - 60mm, LNA, Filter |
| Termination | U.FL (UMCC), I-PEX MHF1 | U.FL (UMCC), I-PEX MHF1 | U.FL (UMCC), I-PEX MHF1 | U.FL (UMCC), I-PEX MHF1 | U.FL (UMCC), I-PEX MHF1 |
| Ingress Protection | - | - | - | - | - |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Height (Max) | 0.311" (7.90mm) | 0.311" (7.90mm) | 0.339" (8.60mm) | 0.339" (8.60mm) | 0.339" (8.60mm) |
| Applications | Beidou, Galileo, GLONASS, GPS | Beidou, Galileo, GLONASS, GPS | Beidou, Galileo, GLONASS, GNSS, GPS | Beidou, Galileo, GLONASS, GNSS, GPS | Beidou, Galileo, GLONASS, GNSS, GPS |
