Anatech Electronics Inc. AE7-113DB5402
- Part No.:
- AE7-113DB5402
- Manufacturer:
- Anatech Electronics Inc.
- Category:
- RF Multiplexers
- Package:
- 9-DIP Module
- Description:
- DC-14 MHZ / 26-200 MHZ LC DIPLEX
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
AE7-113DB5402 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Anatech Electronics Inc.
- Series:
- -
- Package/Case:
- 9-DIP Module
- Packaging:
- Box
- Product Status:
- Active
- Type:
- Diplexer
- Frequency Bands (Low / High):
- 0Hz ~ 14MHz / 26MHz ~ 200MHz
- Low Band Attenuation (min / max dB):
- -
- High Band Attenuation (min / max dB):
- -
- Return Loss (Low Band / High Band):
- -
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Through Hole
| Image |  |
|
 |

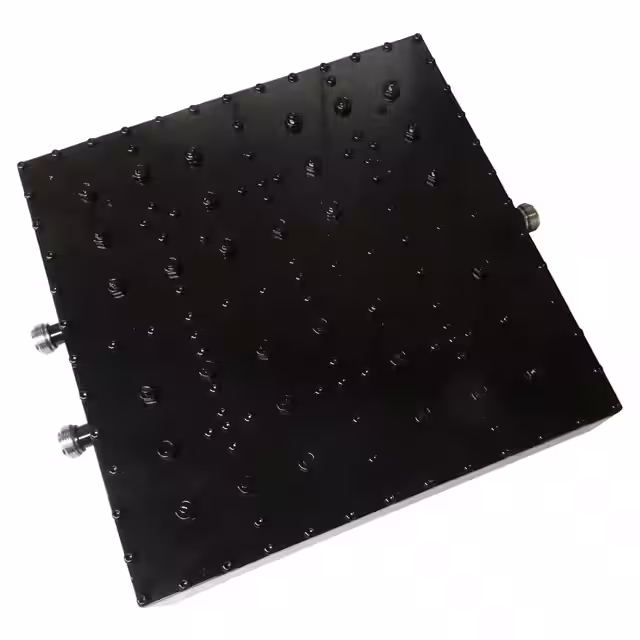

| Part Number | AE7-113DB5402 | AE754-785DB5479 | AE710-737DB5474 |
| Manufacturer | Anatech Electronics Inc. | Anatech Electronics Inc. | Anatech Electronics Inc. |
| Series | - | - | - |
| Package/Case | 9-DIP Module | Module | Module |
| Packaging | Box | Box | Box |
| Product Status | Active | Active | Active |
| Type | Diplexer | Duplexer | Duplexer |
| Frequency Bands (Low / High) | 0Hz ~ 14MHz / 26MHz ~ 200MHz | 746MHz ~ 763MHz / 777MHz ~ 793MHz | 698MHz ~ 722MHz / 728MHz ~ 746MHz |
| Low Band Attenuation (min / max dB) | - | - | - |
| High Band Attenuation (min / max dB) | - | - | - |
| Return Loss (Low Band / High Band) | - | 14.0dB / 14.0dB | 14.0dB / 14.0dB |
| Grade | - | - | - |
| Qualification | - | - | - |
| Mounting Type | Through Hole | Chassis Mount | Chassis Mount |
