Anatech Electronics Inc. AD815-860D349
- Part No.:
- AD815-860D349
- Manufacturer:
- Anatech Electronics Inc.
- Category:
- RF Multiplexers
- Package:
- Module, SMA Connectors
- Description:
- 806-824 MHZ / 851-869 MHZ CAVITY
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
AD815-860D349 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Anatech Electronics Inc.
- Series:
- -
- Package/Case:
- Module, SMA Connectors
- Packaging:
- Box
- Product Status:
- Active
- Type:
- Duplexer
- Frequency Bands (Low / High):
- 806MHz ~ 824MHz / 851MHz ~ 869MHz
- Low Band Attenuation (min / max dB):
- -
- High Band Attenuation (min / max dB):
- -
- Return Loss (Low Band / High Band):
- 17.0dB / 17.0dB
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Chassis Mount
| Image |  |
|
|
 |

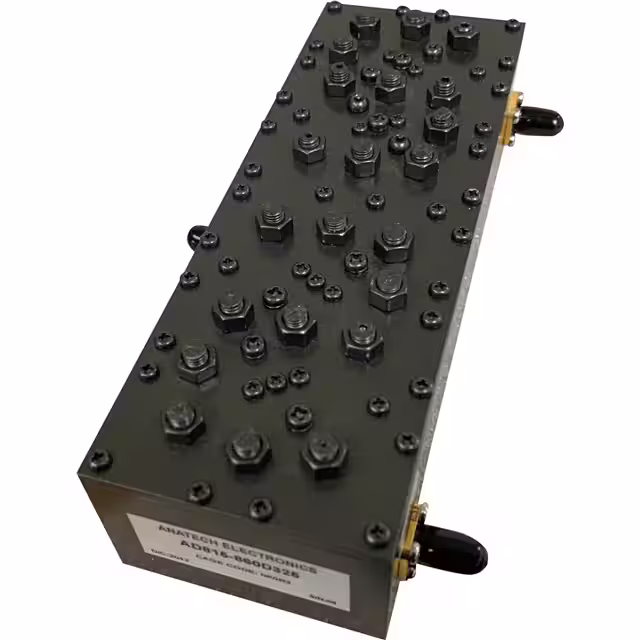

| Part Number | AD815-860D260 | AD815-860D349 | AD815-860D197-N | AD815-860D325 |
| Manufacturer | Anatech Electronics Inc. | Anatech Electronics Inc. | Anatech Electronics Inc. | Anatech Electronics Inc. |
| Series | - | - | - | - |
| Package/Case | Module, SMA Connectors | Module, SMA Connectors | Module | Module, SMA Connectors |
| Packaging | Box | Box | Box | Box |
| Product Status | Active | Active | Active | Active |
| Type | Diplexer | Duplexer | Diplexer | Duplexer |
| Frequency Bands (Low / High) | 806MHz ~ 824MHz / 851MHz ~ 869MHz | 806MHz ~ 824MHz / 851MHz ~ 869MHz | 806MHz ~ 824MHz / 851MHz ~ 869MHz | 806MHz ~ 824MHz / 851MHz ~ 869MHz |
| Low Band Attenuation (min / max dB) | - | - | - | - |
| High Band Attenuation (min / max dB) | - | - | - | - |
| Return Loss (Low Band / High Band) | 18.0dB / 18.0dB | 17.0dB / 17.0dB | 18.0dB / 18.0dB | 18.0dB / 18.0dB |
| Grade | - | - | - | - |
| Qualification | - | - | - | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
