Kingbright ACSA04-41CGKWA-F01
- Part No.:
- ACSA04-41CGKWA-F01
- Manufacturer:
- Kingbright
- Category:
- LED Character and Numeric
- Package:
- 10-SMD, No Lead
- Datasheet:
-
ACSA04-41CGKWA-F01.pdf
- Description:
- DISPLAY 7SEG 0.4" SGL GRN 10SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
ACSA04-41CGKWA-F01 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Kingbright
- Series:
- -
- Package/Case:
- 10-SMD, No Lead
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Display Format:
- -
- Number of Characters:
- 1
- Size / Dimension:
- 0.512" H x 0.358" W x 0.148" D (13.00mm x 9.10mm x 3.75mm)
- Digit/Alpha Size:
- 0.40" (10.16mm)
- Display Type:
- 7-Segment
- Common Pin:
- Common Anode
- Color:
- Green
- Voltage - Forward (Vf) (Typ):
- 2.1V
- Current - Test:
- 20mA
- Millicandela Rating:
- 11mcd
- Wavelength - Peak:
- 574nm
- Power Dissipation (Max):
- 75mW

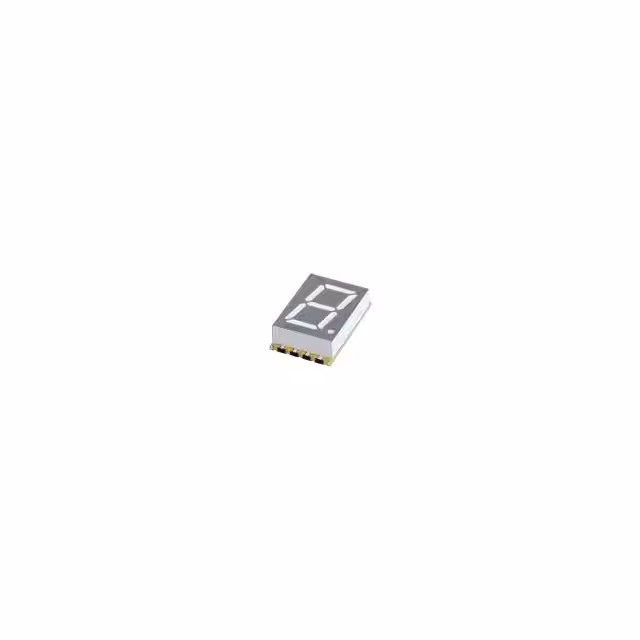

| Image |  |
 |
 |
|
 |
| Part Number | ACSA04-41SURKWA-F01 | ACSA04-41CGKWA-F01 | ACSA04-41SYKWA-F01 | ACSA04-41SEKWA-F01 | ACSA04-41EWA-F01 |
| Manufacturer | Kingbright | Kingbright | Kingbright | Kingbright | Kingbright |
| Series | - | - | - | - | - |
| Package/Case | 10-SMD, No Lead | 10-SMD, No Lead | 10-SMD, No Lead | 10-SMD, No Lead | 10-SMD, No Lead |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Display Format | - | - | - | - | - |
| Number of Characters | 1 | 1 | 1 | 1 | 1 |
| Size / Dimension | 0.512" H x 0.358" W x 0.148" D (13.00mm x 9.10mm x 3.75mm) | 0.512" H x 0.358" W x 0.148" D (13.00mm x 9.10mm x 3.75mm) | 0.512" H x 0.358" W x 0.148" D (13.00mm x 9.10mm x 3.75mm) | 0.512" H x 0.358" W x 0.148" D (13.00mm x 9.10mm x 3.75mm) | 0.669" H x 0.488" W x 0.148" D (17.00mm x 12.40mm x 3.75mm) |
| Digit/Alpha Size | 0.40" (10.16mm) | 0.40" (10.16mm) | 0.40" (10.16mm) | 0.40" (10.16mm) | 0.56" (14.22mm) |
| Display Type | 7-Segment | 7-Segment | 7-Segment | 7-Segment | 7-Segment |
| Common Pin | Common Anode | Common Anode | Common Anode | Common Anode | Common Anode |
| Color | Red | Green | Yellow | Orange | Red |
| Voltage - Forward (Vf) (Typ) | 1.95V | 2.1V | 2V | 2.1V | 1.8V |
| Current - Test | 20mA | 20mA | 20mA | 20mA | 10mA |
| Millicandela Rating | 27mcd | 11mcd | 35mcd | 60mcd | 26mcd |
| Wavelength - Peak | 650nm | 574nm | 590nm | 610nm | 655nm |
| Power Dissipation (Max) | 75mW | 75mW | 75mW | 75mW | - |
