Panasonic Electric Works ACJ2112
- Part No.:
- ACJ2112
- Manufacturer:
- Panasonic Electric Works
- Category:
- Automotive Relays
- Package:
- Description:
- RELAY AUTOMOTIVE SPDTX2 20A 12V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
ACJ2112 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Panasonic Electric Works
- Series:
- ACJ
- Packaging:
- Tube
- Product Status:
- Active
- Coil Type:
- Non Latching
- Coil Current:
- 66.7 mA
- Coil Voltage:
- 12VDC
- Contact Form:
- SPDT (1 Form C) x 2
- Contact Rating (Current):
- 20 A
- Switching Voltage:
- 14VDC - Nom
- Must Operate Voltage:
- 6.5 VDC
- Must Release Voltage:
- 0.8 VDC
- Operate Time:
- 10 ms
- Release Time:
- 10 ms
- Features:
- Sealed - Fully
- Mounting Type:
- Through Hole
- Termination Style:
- PC Pin
- Operating Temperature:
- -40°C ~ 85°C

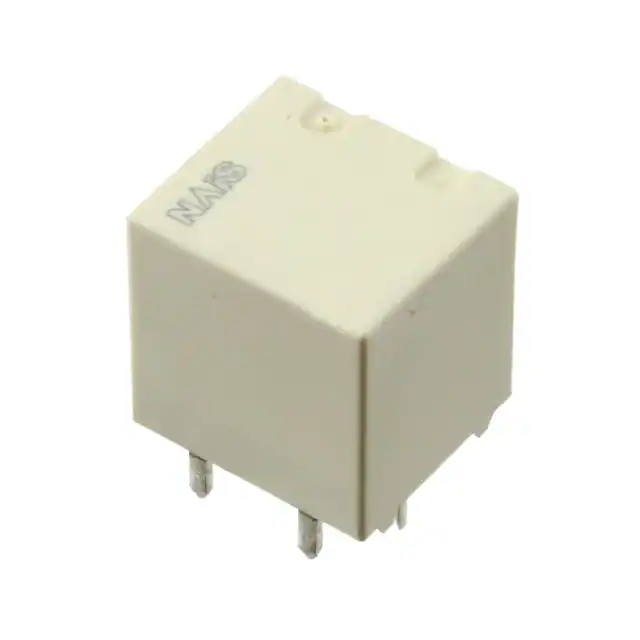

| Image |  |
 |
| Part Number | ACJ2112 | ACJ2112P |
| Manufacturer | Panasonic Electric Works | Panasonic Electric Works |
| Series | ACJ | ACJ |
| Packaging | Tube | Tube |
| Product Status | Active | Active |
| Coil Type | Non Latching | Non Latching |
| Coil Current | 66.7 mA | 66.7 mA |
| Coil Voltage | 12VDC | 12VDC |
| Contact Form | SPDT (1 Form C) x 2 | SPDT (1 Form C) x 2 |
| Contact Rating (Current) | 20 A | 20 A |
| Switching Voltage | 14VDC - Nom | 14VDC - Nom |
| Must Operate Voltage | 6.5 VDC | 6.5 VDC |
| Must Release Voltage | 0.8 VDC | 0.8 VDC |
| Operate Time | 10 ms | 10 ms |
| Release Time | 10 ms | 10 ms |
| Features | Sealed - Fully | Sealed - Flux Protection |
| Mounting Type | Through Hole | Through Hole |
| Termination Style | PC Pin | PC Pin |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
