Abracon LLC ACAG0301-1575-T
- Part No.:
- ACAG0301-1575-T
- Manufacturer:
- Abracon LLC
- Category:
- RF Antennas
- Package:
- Datasheet:
-
ACAG0301-1575-T.pdf
- Description:
- RF ANT 1.575GHZ CHIP SOLDER SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
ACAG0301-1575-T Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Abracon LLC
- Series:
- ACAG
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- RF Family/Standard:
- Navigation
- Frequency Group:
- UHF (1GHz ~ 2GHz)
- Frequency (Center/Band):
- 1.575GHz
- Frequency Range:
- 1.565GHz ~ 1.585GHz
- Antenna Type:
- Chip
- Number of Bands:
- 1
- VSWR:
- 2
- Return Loss:
- -
- Gain:
- 4.18dBi
- Power - Max:
- -
- Features:
- -
- Termination:
- Solder
- Ingress Protection:
- -
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Height (Max):
- 0.024" (0.60mm)
- Applications:
- GPS
| Image |  |
 |
 |
 |
 |

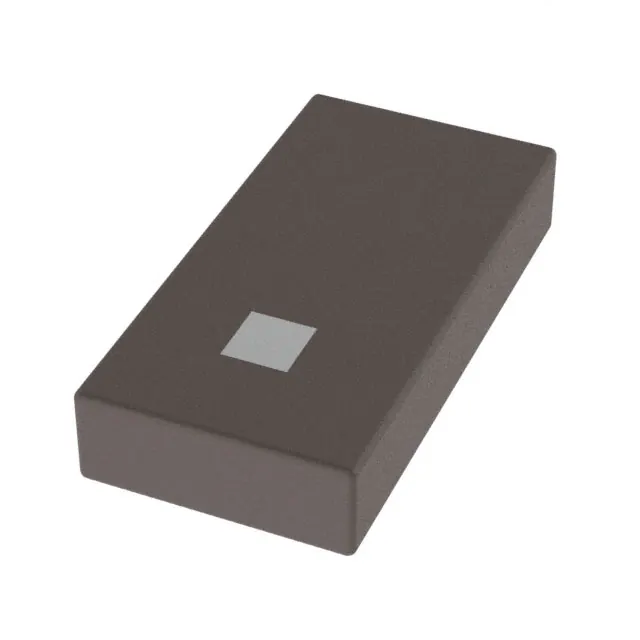

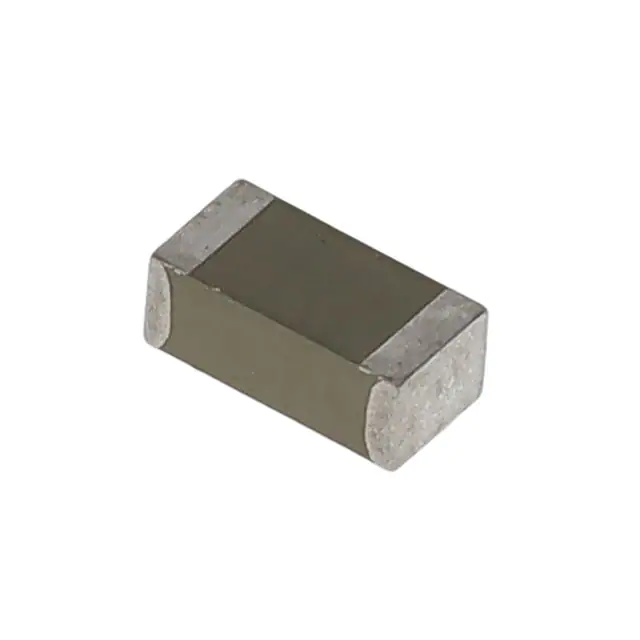

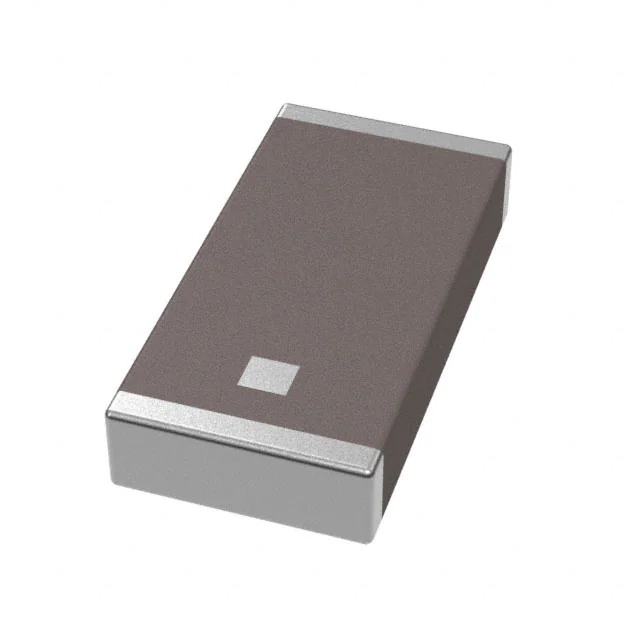

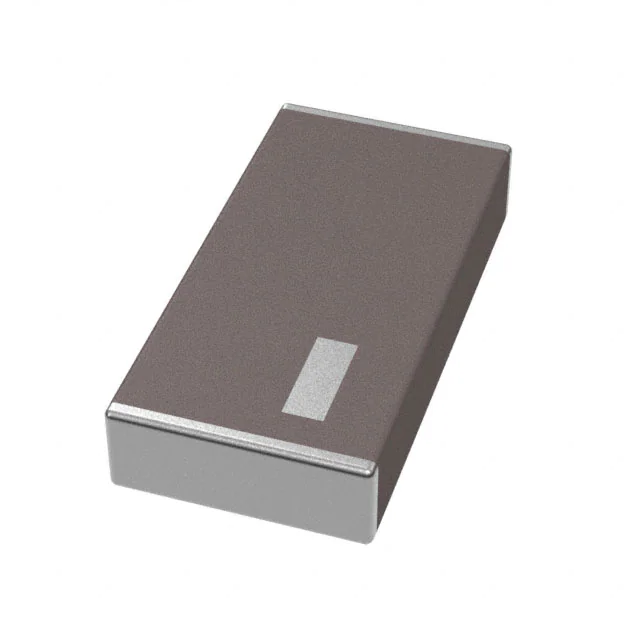

| Part Number | ACAG0301-1575-T | ACAG0301-2450-T | ACAG0301-24505500-T | ACAG0301-15752450-T | ACAG0301-5500-T |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Series | ACAG | ACAG | ACAG | ACAG | ACAG |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| RF Family/Standard | Navigation | Bluetooth, General ISM, WiFi | Bluetooth, General ISM, WiFi | Bluetooth, General ISM, Navigation, WiFi | General ISM, WiFi |
| Frequency Group | UHF (1GHz ~ 2GHz) | UHF (2GHz ~ 3GHz) | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz) | SHF (f > 4GHz) |
| Frequency (Center/Band) | 1.575GHz | 2.45GHz | 2.4GHz, 5.5GHz | 1.575GHz, 2.4GHz | 5.5GHz |
| Frequency Range | 1.565GHz ~ 1.585GHz | 2.4GHz ~ 2.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | 1.565GHz ~ 1.585GHz, 2.4GHz ~ 2.5GHz | 5.15GHz ~ 5.85GHz |
| Antenna Type | Chip | Chip | Chip | Chip | Chip |
| Number of Bands | 1 | 1 | 2 | 2 | 1 |
| VSWR | 2 | 2 | - | - | 2 |
| Return Loss | - | - | -7dB, -7dB | - | - |
| Gain | 4.18dBi | 5.19dBi | 2.23dBi, 4.05dBi | 1.21dBi, 3.18dBi | 4.5dBi |
| Power - Max | - | - | - | - | - |
| Features | - | - | - | - | - |
| Termination | Solder | Solder | Solder | Solder | Solder |
| Ingress Protection | - | - | - | - | - |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Height (Max) | 0.024" (0.60mm) | 0.047" (1.20mm) | 0.047" (1.20mm) | 0.047" (1.20mm) | 0.047" (1.20mm) |
| Applications | GPS | Bluetooth, ISM, Wi-Fi, Zigbee™ | Bluetooth, ISM, Wi-Fi | Bluetooth, GPS, ISM, Wi-Fi | ISM, Wi-Fi, WLAN |
