CIT Relay and Switch A11ASQ12VDC1.2R
- Part No.:
- A11ASQ12VDC1.2R
- Manufacturer:
- CIT Relay and Switch
- Category:
- Automotive Relays
- Package:
- Datasheet:
-
A11ASQ12VDC1.2R.pdf
- Description:
- RELAY AUTOMOTIVE SPST 30A 12V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
A11ASQ12VDC1.2R Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- CIT Relay and Switch
- Series:
- A1
- Packaging:
- Tube
- Product Status:
- Active
- Coil Type:
- Non Latching
- Coil Current:
- 100 mA
- Coil Voltage:
- 12VDC
- Contact Form:
- SPST-NO (1 Form A)
- Contact Rating (Current):
- 30 A
- Switching Voltage:
- 75VDC - Max
- Must Operate Voltage:
- 8.4 VDC
- Must Release Voltage:
- 1.2 VDC
- Operate Time:
- 10 ms
- Release Time:
- 7 ms
- Features:
- Resistor, Sealed - Fully
- Mounting Type:
- Socketable
- Termination Style:
- Plug In, Quick Connect - 0.187" (4.7mm)
- Operating Temperature:
- -40°C ~ 85°C
| Image |  |
 |
 |
 |
 |

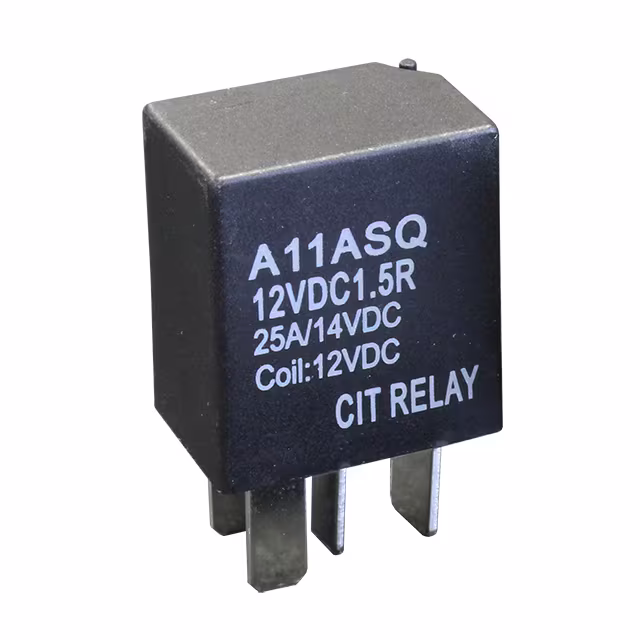

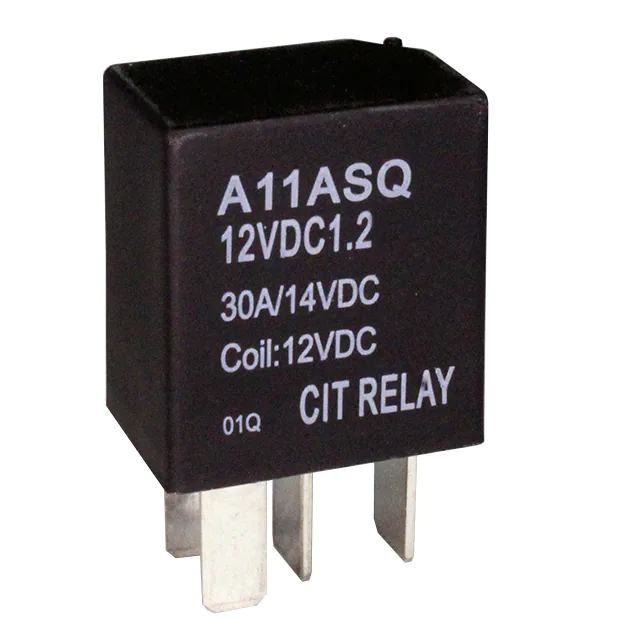

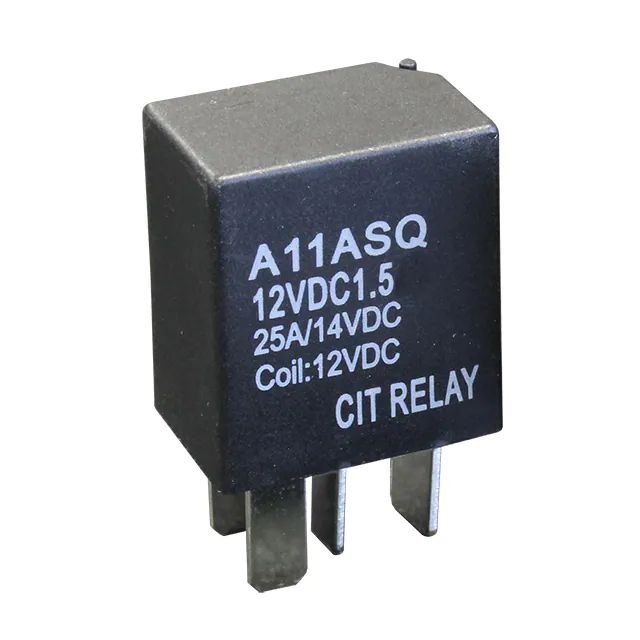

| Part Number | A11ASQ12VDC1.2R | A11ASQ12VDC1.2D | A11ASQ12VDC1.2 | A11ASQ12VDC1.5R | A11ASQ12VDC1.5 |
| Manufacturer | CIT Relay and Switch | CIT Relay and Switch | CIT Relay and Switch | CIT Relay and Switch | CIT Relay and Switch |
| Series | A1 | A1 | A1 | A1 | A1 |
| Packaging | Tube | Tube | Tube | Tube | Tube |
| Product Status | Active | Active | Active | Active | Active |
| Coil Type | Non Latching | Non Latching | Non Latching | Non Latching | Non Latching |
| Coil Current | 100 mA | 100 mA | 100 mA | 125 mA | 125 mA |
| Coil Voltage | 12VDC | 12VDC | 12VDC | 12VDC | 12VDC |
| Contact Form | SPST-NO (1 Form A) | SPST-NO (1 Form A) | SPST-NO (1 Form A) | SPST-NO (1 Form A) | SPST-NO (1 Form A) |
| Contact Rating (Current) | 30 A | 30 A | 30 A | 30 A | 30 A |
| Switching Voltage | 75VDC - Max | 75VDC - Max | 75VDC - Max | 75VDC - Max | 75VDC - Max |
| Must Operate Voltage | 8.4 VDC | 8.4 VDC | 8.4 VDC | 8.4 VDC | 8.4 VDC |
| Must Release Voltage | 1.2 VDC | 1.2 VDC | 1.2 VDC | 1.2 VDC | 1.2 VDC |
| Operate Time | 10 ms | 10 ms | 10 ms | 10 ms | 10 ms |
| Release Time | 7 ms | 7 ms | 7 ms | 7 ms | 7 ms |
| Features | Resistor, Sealed - Fully | Diode, Sealed - Fully | Sealed - Fully | Resistor, Sealed - Fully | Sealed - Fully |
| Mounting Type | Socketable | Socketable | Socketable | Socketable | Socketable |
| Termination Style | Plug In, Quick Connect - 0.187" (4.7mm) | Plug In, Quick Connect - 0.187" (4.7mm) | Plug In, Quick Connect - 0.187" (4.7mm) | Plug In, Quick Connect - 0.187" (4.7mm) | Plug In, Quick Connect - 0.187" (4.7mm) |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
