Antenova A10194

Part No.:
A10194
Manufacturer:
Antenova
Category:
RF Antennas
Package:
Datasheet:
A10194.pdf
Description:
RF ANT 2.4GHZ/5GHZ PCB TRACE SLD
Quantity:

Unit Price:$0

Ext Price:$0

Payment:
Payment
Shipping:
Shipping

A10194 Information

  • Specifications
  • Comparison
  • Tags
Product attributes
Attribute value
Manufacturer:
Antenova
Series:
Mixtus
Packaging:
Tape & Reel (TR)
Product Status:
Obsolete
RF Family/Standard:
WiFi
Frequency Group:
UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency (Center/Band):
2.4GHz, 5GHz
Frequency Range:
2.4GHz ~ 2.5GHz, 4.9GHz ~ 5GHz
Antenna Type:
PCB Trace
Number of Bands:
2
VSWR:
1.4, 1.8
Return Loss:
-11dB, -15dB
Gain:
1.8dBi, 4.1dBi
Power - Max:
-
Features:
-
Termination:
Solder
Ingress Protection:
-
Grade:
-
Qualification:
-
Mounting Type:
Surface Mount
Height (Max):
0.035" (0.90mm)
Applications:
WLAN

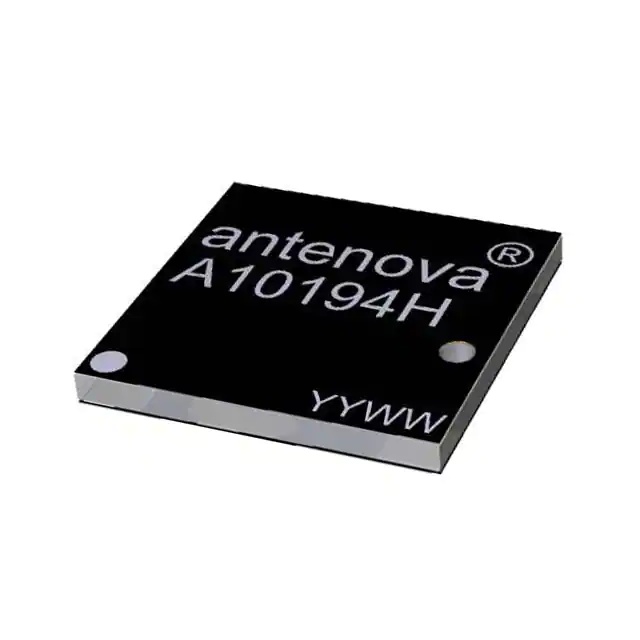

Image A10194H A10194
Part Number A10194H A10194
Manufacturer Antenova Antenova
Series Mixtus Mixtus
Packaging Tape & Reel (TR) Tape & Reel (TR)
Product Status Active Obsolete
RF Family/Standard WiFi WiFi
Frequency Group UHF (2GHz ~ 3GHz), SHF (f > 4GHz) UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency (Center/Band) 2.45GHz, 5.4GHz 2.4GHz, 5GHz
Frequency Range 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5GHz
Antenna Type Chip PCB Trace
Number of Bands 2 2
VSWR 1.4, 1.8 1.4, 1.8
Return Loss - -11dB, -15dB
Gain - 1.8dBi, 4.1dBi
Power - Max - -
Features - -
Termination Solder Solder
Ingress Protection - -
Grade - -
Qualification - -
Mounting Type Surface Mount Surface Mount
Height (Max) 0.035" (0.90mm) 0.035" (0.90mm)
Applications 802.11n, Wi-Fi WLAN
