Dialight 5593501007
- Part No.:
- 5593501007
- Manufacturer:
- Dialight
- Category:
- Panel Indicators, Pilot Lights
- Package:
- Datasheet:
-
5593501007.pdf
- Description:
- LED PANEL SNAP-IN BICLR RD/GN 3L
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
5593501007 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Dialight
- Series:
- 559
- Packaging:
- Bulk
- Product Status:
- Obsolete
- Type:
- LED
- Lamp Color:
- Green, Red
- Lens Color:
- -
- Lens Transparency:
- -
- Ratings:
- Vf (Typ), If (Max)
- Voltage:
- 2.3V Green, 2.1V Red
- Current:
- 30mA Green, 30mA Red
- Panel Cutout Shape:
- Round
- Panel Cutout Dimensions:
- 0.25" (6.35mm)
- Lens Size:
- 5mm, T-1 3/4
- Lens Style:
- Round with Domed Top
- Millicandela Rating:
- 8mcd Green, 5mcd Red
- Wavelength - Peak:
- 565nm Green, 635nm Red
- Viewing Angle:
- 65°
- Termination Style:
- Wire Leads - 14" (355.60mm)
- Ingress Protection:
- -
- Features:
- -
| Image |  |
 |
|

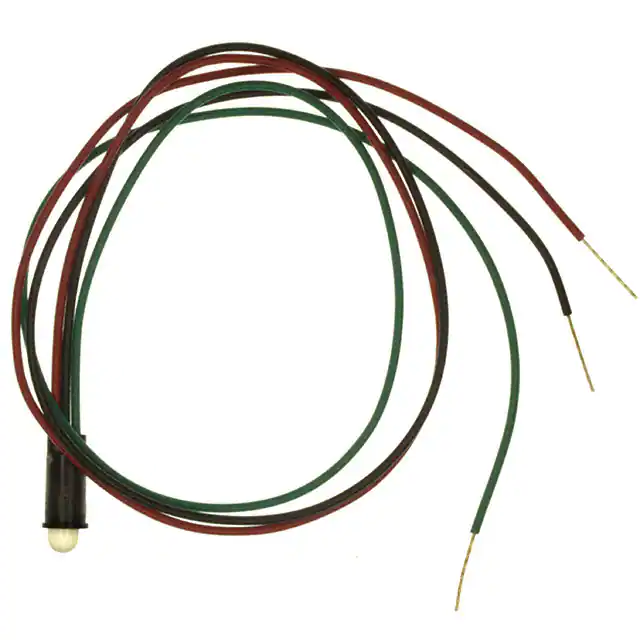

| Part Number | 5593501007F | 5593501007LF | 5593501007 |
| Manufacturer | Dialight | Dialight | Dialight |
| Series | 559 | 559 | 559 |
| Packaging | Bulk | Bulk | Bulk |
| Product Status | Active | Obsolete | Obsolete |
| Type | LED | LED | LED |
| Lamp Color | Green, Red | Green, Red | Green, Red |
| Lens Color | - | - | - |
| Lens Transparency | Diffused | - | - |
| Ratings | Vf (Typ), If (Max) | Vf (Typ), If (Max) | Vf (Typ), If (Max) |
| Voltage | 2.3V Green, 2.1V Red | 2.3V Green, 2.1V Red | 2.3V Green, 2.1V Red |
| Current | 30mA Green, 30mA Red | 30mA Green, 30mA Red | 30mA Green, 30mA Red |
| Panel Cutout Shape | Round | Round | Round |
| Panel Cutout Dimensions | 0.25" (6.35mm) | 0.25" (6.35mm) | 0.25" (6.35mm) |
| Lens Size | 5mm, T-1 3/4 | 5mm, T-1 3/4 | 5mm, T-1 3/4 |
| Lens Style | Round with Domed Top | Round with Domed Top | Round with Domed Top |
| Millicandela Rating | 8mcd Green, 5mcd Red | 8mcd Green, 5mcd Red | 8mcd Green, 5mcd Red |
| Wavelength - Peak | 565nm Green, 635nm Red | 565nm Green, 635nm Red | 565nm Green, 635nm Red |
| Viewing Angle | 65° | 65° | 65° |
| Termination Style | Wire Leads - 14" (355.60mm) | Wire Leads - 14" (355.60mm) | Wire Leads - 14" (355.60mm) |
| Ingress Protection | - | - | - |
| Features | - | - | - |
