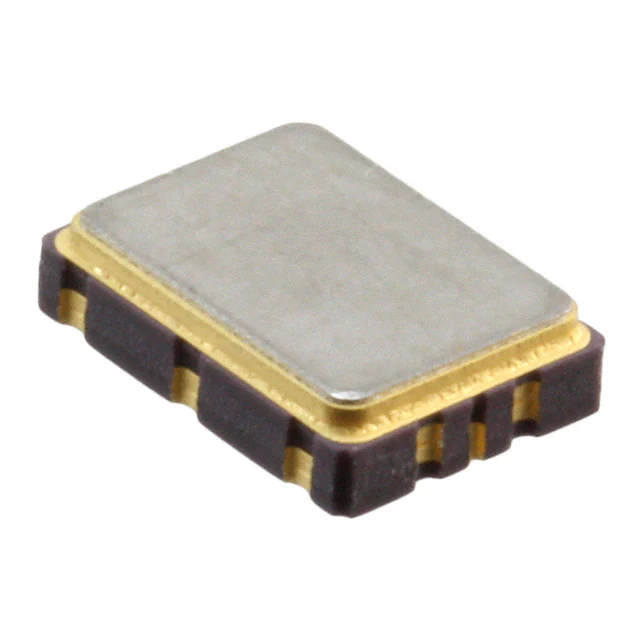

Skyworks Solutions Inc. 534DC000596DG
- Part No.:
- 534DC000596DG
- Manufacturer:
- Skyworks Solutions Inc.
- Category:
- Pin Configurable/Selectable Oscillators
- Package:
- 8-SMD, No Lead
- Datasheet:
-
534DC000596DG.pdf
- Description:
- XTAL OSC XO 3.3V 8SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
534DC000596DG Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Skyworks Solutions Inc.
- Series:
- Si534
- Package/Case:
- 8-SMD, No Lead
- Packaging:
- Strip
- Product Status:
- Active
- Base Resonator:
- Crystal
- Type:
- XO (Standard)
- Frequency - Output 1:
- 970MHz, 980MHz, 990MHz, 1GHz
- Frequency - Output 2:
- -
- Frequency - Output 3:
- -
- Frequency - Output 4:
- -
- Function:
- Enable/Disable
- Output:
- CML
- Voltage - Supply:
- 3.3V
- Frequency Stability:
- ±7ppm
- Operating Temperature:
- -40°C ~ 85°C
- Current - Supply (Max):
- 108mA
- Ratings:
- -
- Size / Dimension:
- 0.276" L x 0.197" W (7.00mm x 5.00mm)
- Height:
- 0.071" (1.80mm)
- Supplier Device Package:
- -
| Image |  |
|
| Part Number | 534DC000596DG | 534DC000596DGR |
| Manufacturer | Skyworks Solutions Inc. | Skyworks Solutions Inc. |
| Series | Si534 | Si534 |
| Package/Case | 8-SMD, No Lead | 8-SMD, No Lead |
| Packaging | Strip | Tape & Reel (TR) |
| Product Status | Active | Active |
| Base Resonator | Crystal | Crystal |
| Type | XO (Standard) | XO (Standard) |
| Frequency - Output 1 | 970MHz, 980MHz, 990MHz, 1GHz | 970MHz, 980MHz, 990MHz, 1GHz |
| Frequency - Output 2 | - | - |
| Frequency - Output 3 | - | - |
| Frequency - Output 4 | - | - |
| Function | Enable/Disable | Enable/Disable |
| Output | CML | CML |
| Voltage - Supply | 3.3V | 3.3V |
| Frequency Stability | ±7ppm | ±7ppm |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Current - Supply (Max) | 108mA | 108mA |
| Ratings | - | - |
| Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| Height | 0.071" (1.80mm) | 0.071" (1.80mm) |
| Supplier Device Package | - | - |
