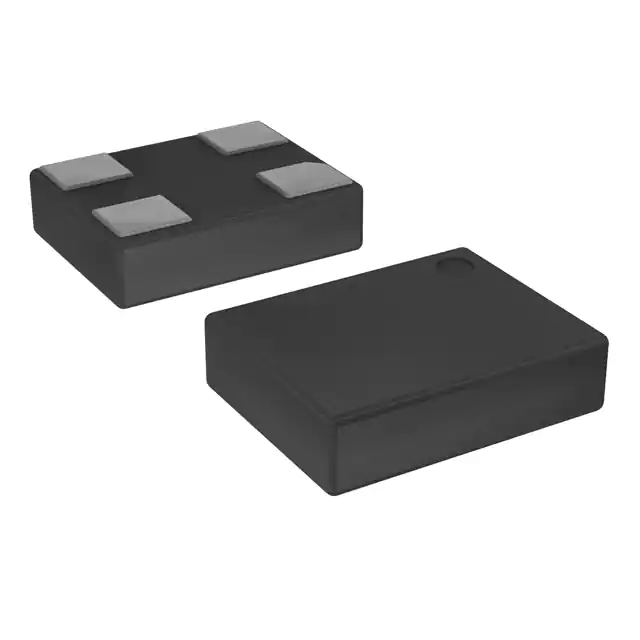

Microchip Technology DSC6021CI2A-009UT
- Part No.:
- DSC6021CI2A-009UT
- Manufacturer:
- Microchip Technology
- Category:
- Pin Configurable/Selectable Oscillators
- Package:
- 4-VDFN
- Datasheet:
-
DSC6021CI2A-009UT.pdf
- Description:
- MEMS OSC XO 1.71V-3.63V 4SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
DSC6021CI2A-009UT Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Microchip Technology
- Series:
- DSC60XX
- Package/Case:
- 4-VDFN
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Obsolete
- Base Resonator:
- MEMS
- Type:
- XO (Standard)
- Frequency - Output 1:
- 40MHz, 80MHz
- Frequency - Output 2:
- -
- Frequency - Output 3:
- -
- Frequency - Output 4:
- -
- Function:
- -
- Output:
- CMOS
- Voltage - Supply:
- 1.71V ~ 3.63V
- Frequency Stability:
- ±25ppm
- Operating Temperature:
- -40°C ~ 85°C
- Current - Supply (Max):
- 1.3mA (Typ)
- Ratings:
- -
- Size / Dimension:
- 0.126" L x 0.098" W (3.20mm x 2.50mm)
- Height:
- 0.035" (0.90mm)
- Supplier Device Package:
- 4-VDFN (3.2x2.5)
| Image |  |
|
|
|
|
| Part Number | DSC6021CI2A-009TT | DSC6021CI2A-009UT | DSC6021CI2A-009WT | DSC6021CI2A-009YT | DSC6021CI2A-00A0T |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Series | DSC60XX | DSC60XX | DSC60XX | DSC60XX | DSC60XX |
| Package/Case | 4-VDFN | 4-VDFN | 4-VDFN | 4-VDFN | 4-VDFN |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Base Resonator | MEMS | MEMS | MEMS | MEMS | MEMS |
| Type | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) |
| Frequency - Output 1 | 25Mhz, 50MHz | 40MHz, 80MHz | 25MHz, 27MHz | 26MHz, 27MHz | 19.44MHz, 25MHz |
| Frequency - Output 2 | - | - | - | - | - |
| Frequency - Output 3 | - | - | - | - | - |
| Frequency - Output 4 | - | - | - | - | - |
| Function | - | - | - | - | - |
| Output | CMOS | CMOS | CMOS | CMOS | CMOS |
| Voltage - Supply | 1.71V ~ 3.63V | 1.71V ~ 3.63V | 1.71V ~ 3.63V | 1.71V ~ 3.63V | 1.71V ~ 3.63V |
| Frequency Stability | ±25ppm | ±25ppm | ±25ppm | ±25ppm | ±25ppm |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Current - Supply (Max) | 1.3mA (Typ) | 1.3mA (Typ) | 1.3mA (Typ) | 1.3mA (Typ) | 1.3mA (Typ) |
| Ratings | - | - | - | - | - |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) |
| Supplier Device Package | 4-VDFN (3.2x2.5) | 4-VDFN (3.2x2.5) | 4-VDFN (3.2x2.5) | 4-VDFN (3.2x2.5) | 4-VDFN (3.2x2.5) |
