Vishay Spectrol 534B1502JC
- Part No.:
- 534B1502JC
- Manufacturer:
- Vishay Spectrol
- Category:
- Rotary Potentiometers, Rheostats
- Package:
- Datasheet:
-
534B1502JC.pdf
- Description:
- POT 5K OHM 2W WIREWOUND LINEAR
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
534B1502JC Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Vishay Spectrol
- Series:
- 534
- Packaging:
- Bulk
- Product Status:
- Active
- Resistance (Ohms):
- 5k
- Tolerance:
- ±5%
- Power (Watts):
- 2W
- Built in Switch:
- None
- Number of Turns:
- 10.0
- Features:
- -
- Taper:
- Linear
- Number of Gangs:
- 1
- Adjustment Type:
- User Defined
- Temperature Coefficient:
- 20ppm/°C
- Rotation:
- 3600°
- Resistive Material:
- Wirewound
- Termination Style:
- Solder Lug
- Actuator Type:
- Slotted
- Actuator Length:
- 0.812" (20.63mm)
- Actuator Diameter:
- 0.2497" (6.34mm)
- Bushing Thread:
- 3/8-32
- Mounting Type:
- Panel Mount
| Image |  |
 |

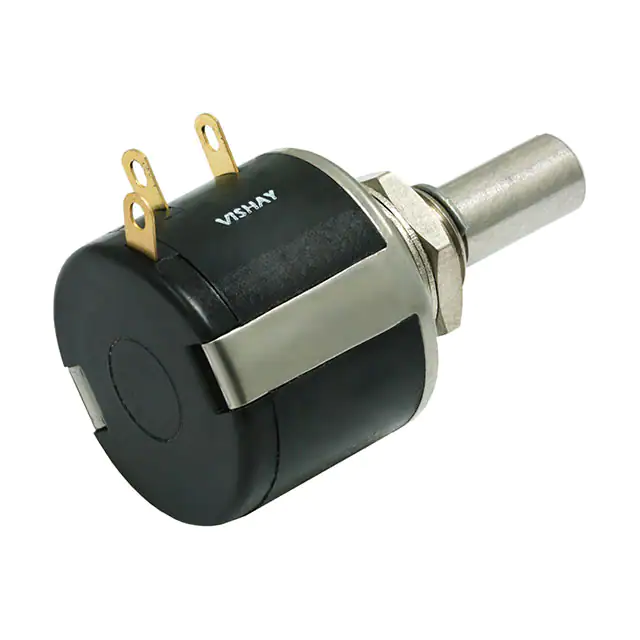

| Part Number | 534B1502JC | 534B1502JC8872 |
| Manufacturer | Vishay Spectrol | Vishay Sfernice |
| Series | 534 | 534 |
| Packaging | Bulk | Box |
| Product Status | Active | Active |
| Resistance (Ohms) | 5k | 5k |
| Tolerance | ±5% | ±5% |
| Power (Watts) | 2W | 2W |
| Built in Switch | None | None |
| Number of Turns | 10.0 | 10.0 |
| Features | - | - |
| Taper | Linear | Linear |
| Number of Gangs | 1 | 1 |
| Adjustment Type | User Defined | User Defined |
| Temperature Coefficient | 20ppm/°C | 20ppm/°C |
| Rotation | 3600° | 3600° |
| Resistive Material | Wirewound | Wirewound |
| Termination Style | Solder Lug | Solder Lug |
| Actuator Type | Slotted | Slotted |
| Actuator Length | 0.812" (20.63mm) | 0.812" (20.63mm) |
| Actuator Diameter | 0.2497" (6.34mm) | 0.236" (6.00mm) |
| Bushing Thread | 3/8-32 | 3/8-32 |
| Mounting Type | Panel Mount | Panel Mount |
