Visual Communications Company - VCC 5110F7
- Part No.:
- 5110F7
- Manufacturer:
- Visual Communications Company - VCC
- Category:
- Panel Indicators, Pilot Lights
- Package:
- Description:
- LED YELLOW 5/32" HOLE PANEL MNT
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
5110F7 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Visual Communications Company - VCC
- Series:
- 5110F
- Packaging:
- Bulk
- Product Status:
- Not For New Designs
- Type:
- LED
- Lamp Color:
- Yellow
- Lens Color:
- -
- Lens Transparency:
- Diffused
- Ratings:
- Vf (Typ), If (Max)
- Voltage:
- 2.1V
- Current:
- 30mA
- Panel Cutout Shape:
- Round
- Panel Cutout Dimensions:
- 0.16" (4.06mm)
- Lens Size:
- 3mm, T-1
- Lens Style:
- Round with Domed Top
- Millicandela Rating:
- 6.3mcd
- Wavelength - Peak:
- 585nm
- Viewing Angle:
- -
- Termination Style:
- Wire Leads - 4.4" (111.80mm)
- Ingress Protection:
- -
- Features:
- -
| Image |  |
 |

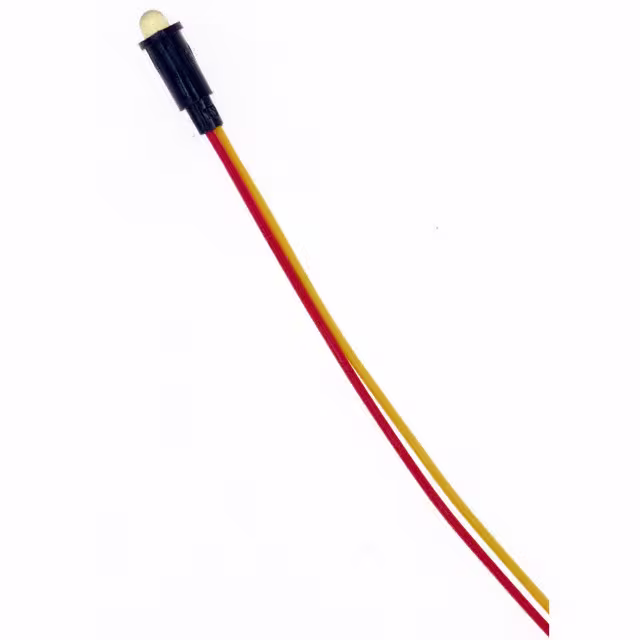

| Part Number | 5110F7 | 5110F7LC |
| Manufacturer | Visual Communications Company - VCC | Visual Communications Company - VCC |
| Series | 5110F | 5110F |
| Packaging | Bulk | Bulk |
| Product Status | Not For New Designs | Not For New Designs |
| Type | LED | LED |
| Lamp Color | Yellow | Yellow |
| Lens Color | - | - |
| Lens Transparency | Diffused | Diffused |
| Ratings | Vf (Typ), If (Max) | Vf (Typ), If (Max) |
| Voltage | 2.1V | 1.9V |
| Current | 30mA | 7mA |
| Panel Cutout Shape | Round | Round |
| Panel Cutout Dimensions | 0.16" (4.06mm) | 0.16" (4.06mm) |
| Lens Size | 3mm, T-1 | 3mm, T-1 |
| Lens Style | Round with Domed Top | Round with Domed Top |
| Millicandela Rating | 6.3mcd | 1.8mcd |
| Wavelength - Peak | 585nm | 583nm |
| Viewing Angle | - | - |
| Termination Style | Wire Leads - 4.4" (111.80mm) | Wire Leads - 4.4" (111.80mm) |
| Ingress Protection | - | - |
| Features | - | - |
