Visual Communications Company - VCC 5110F1
- Part No.:
- 5110F1
- Manufacturer:
- Visual Communications Company - VCC
- Category:
- Panel Indicators, Pilot Lights
- Package:
- Description:
- LED RED 5/32" HOLE PANEL MOUNT
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
5110F1 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Visual Communications Company - VCC
- Series:
- 5110F
- Packaging:
- Bulk
- Product Status:
- Active
- Type:
- LED
- Lamp Color:
- Red
- Lens Color:
- -
- Lens Transparency:
- Diffused
- Ratings:
- Vf (Typ), If (Max)
- Voltage:
- 2V
- Current:
- 30mA
- Panel Cutout Shape:
- Round
- Panel Cutout Dimensions:
- 0.16" (4.06mm)
- Lens Size:
- 3mm, T-1
- Lens Style:
- Round with Domed Top
- Millicandela Rating:
- 10mcd
- Wavelength - Peak:
- 635nm
- Viewing Angle:
- -
- Termination Style:
- Wire Leads - 4.4" (111.80mm)
- Ingress Protection:
- -
- Features:
- -
| Image |  |
 |
 |
|
 |

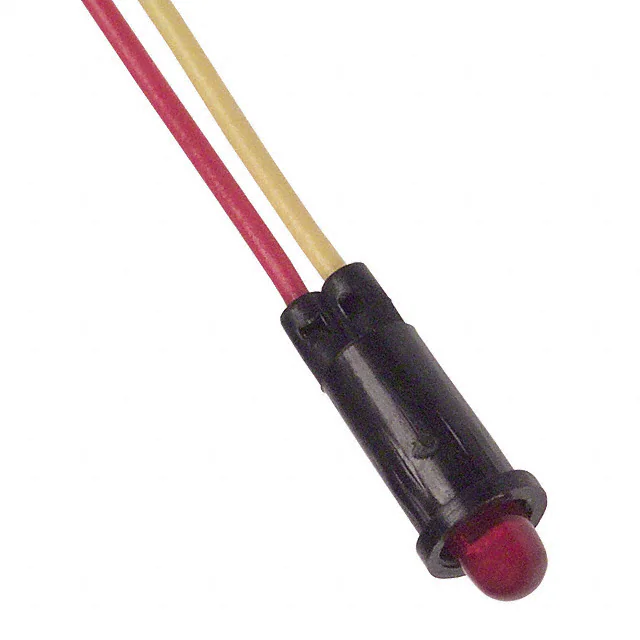

| Part Number | 5110F1 | 5110F1LC | 5110F1-12V | 5110F1-5V | 5110F1-012 |
| Manufacturer | Visual Communications Company - VCC | Visual Communications Company - VCC | Visual Communications Company - VCC | Visual Communications Company - VCC | Visual Communications Company - VCC |
| Series | 5110F | 5110F | 5110F | 5110F | - |
| Packaging | Bulk | Bulk | Bulk | Bag | Bulk |
| Product Status | Active | Not For New Designs | Active | Active | Obsolete |
| Type | LED | LED | LED | LED | - |
| Lamp Color | Red | Red | Red | Red | - |
| Lens Color | - | - | - | - | - |
| Lens Transparency | Diffused | Diffused | Diffused | Diffused | - |
| Ratings | Vf (Typ), If (Max) | Vf (Typ), If (Max) | Vf (Typ), If (Max) | Vf (Typ), If (Max) | - |
| Voltage | 2V | 1.8V | 12V | 5V | - |
| Current | 30mA | 7mA | 20mA | 20mA | - |
| Panel Cutout Shape | Round | Round | Round | Round | - |
| Panel Cutout Dimensions | 0.16" (4.06mm) | 0.16" (4.06mm) | 0.16" (4.06mm) | 0.16" (4.06mm) | - |
| Lens Size | 3mm, T-1 | 3mm, T-1 | 3mm, T-1 | 3mm, T-1 | - |
| Lens Style | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | - |
| Millicandela Rating | 10mcd | 2.5mcd | 8mcd | 8mcd | - |
| Wavelength - Peak | 635nm | 635nm | 655nm | 655nm | - |
| Viewing Angle | - | - | - | - | - |
| Termination Style | Wire Leads - 4.4" (111.80mm) | Wire Leads - 4.4" (111.80mm) | Wire Leads - 4.4" (111.80mm) | Wire Leads - 4.4" (111.80mm) | - |
| Ingress Protection | - | - | - | - | - |
| Features | - | - | - | - | - |
