Amphenol PCTEL 3961D-7IN-RPSMAF
- Part No.:
- 3961D-7IN-RPSMAF
- Manufacturer:
- Amphenol PCTEL
- Category:
- RF Antennas
- Package:
- Datasheet:
-
3961D-7IN-RPSMAF.pdf
- Description:
- RF ANT 1.575GHZ CER RP-SMA F
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
3961D-7IN-RPSMAF Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Amphenol PCTEL
- Series:
- 3961D
- Packaging:
- Bulk
- Product Status:
- Obsolete
- RF Family/Standard:
- Navigation
- Frequency Group:
- UHF (1GHz ~ 2GHz)
- Frequency (Center/Band):
- 1.575GHz
- Frequency Range:
- 1.565GHz ~ 1.585GHz
- Antenna Type:
- Ceramic Patch
- Number of Bands:
- 1
- VSWR:
- 1.5
- Return Loss:
- -
- Gain:
- -2dBic, 3dBic
- Power - Max:
- -
- Features:
- Cable - 177.8mm, LNA, Filter
- Termination:
- RP-SMA Female
- Ingress Protection:
- -
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Height (Max):
- 0.315" (8.00mm)
- Applications:
- GPS
| Image |  |
 |
|
 |
 |

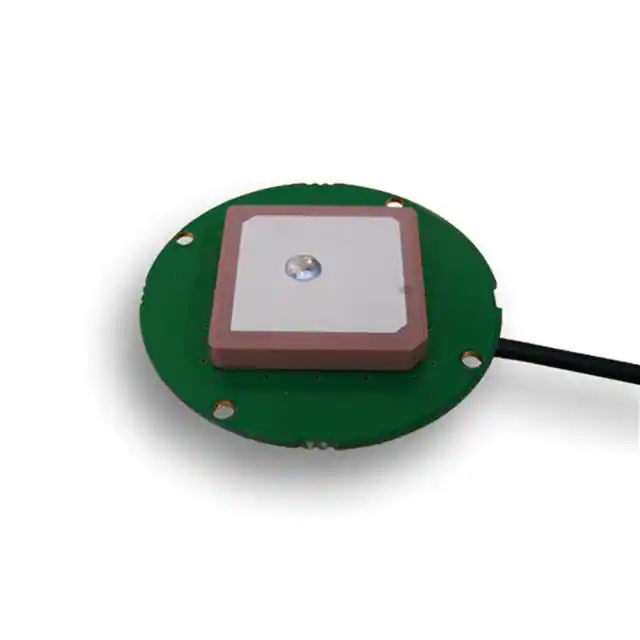

| Part Number | 3961D | 3961D-HR-4.5CM-MCXR/A | 3961D-HR-66CM-NFBH | 3961D-HR | 3961D-7IN-RPSMAF |
| Manufacturer | Amphenol PCTEL | Amphenol PCTEL | Amphenol PCTEL | Amphenol PCTEL | Amphenol PCTEL |
| Series | 3961D | - | - | - | 3961D |
| Packaging | Box | Bulk | Bulk | Bulk | Bulk |
| Product Status | Obsolete | Active | Active | Obsolete | Obsolete |
| RF Family/Standard | Navigation | Navigation | Navigation | Navigation | Navigation |
| Frequency Group | UHF (1GHz ~ 2GHz) | UHF (1GHz ~ 2GHz) | UHF (1GHz ~ 2GHz) | UHF (1GHz ~ 2GHz) | UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 1.575GHz | 1.575GHz | 1.575GHz | 1.575GHz | 1.575GHz |
| Frequency Range | 1.565GHz ~ 1.585GHz | 1.565GHz ~ 1.585GHz | 1.565GHz ~ 1.585GHz | 1.565GHz ~ 1.585GHz | 1.565GHz ~ 1.585GHz |
| Antenna Type | Ceramic Patch | Ceramic Patch | Ceramic Patch | Ceramic Patch | Ceramic Patch |
| Number of Bands | 1 | 1 | 1 | 1 | 1 |
| VSWR | 1.5 | 2 | 2 | 2 | 1.5 |
| Return Loss | - | - | - | - | - |
| Gain | -2dBic, 3dBic | 3dBic | 3dBic | 3dBic, -2dBic | -2dBic, 3dBic |
| Power - Max | - | - | - | - | - |
| Features | Cable - 150mm, LNA | Cable - 450mm, LNA, Filter | Cable - 660mm, LNA, Filter | Cable - 150mm, LNA, Filter | Cable - 177.8mm, LNA, Filter |
| Termination | MCX | MCX | MCX | - | RP-SMA Female |
| Ingress Protection | - | - | - | - | - |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Adhesive | Surface Mount | Surface Mount | Adhesive | Surface Mount |
| Height (Max) | 0.315" (8.00mm) | - | - | 0.303" (7.70mm) | 0.315" (8.00mm) |
| Applications | GNSS, GPS | GPS | GPS | GNSS, GPS | GPS |
