Panasonic Electronic Components - Semiconductor Products 35SVPF120M
- Part No.:
- 35SVPF120M
- Manufacturer:
- Panasonic Electronic Components - Semiconductor Products
- Category:
- Aluminum - Polymer Capacitors
- Package:
- Description:
- CAP ALUM POLY 120UF 20% 35V SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details

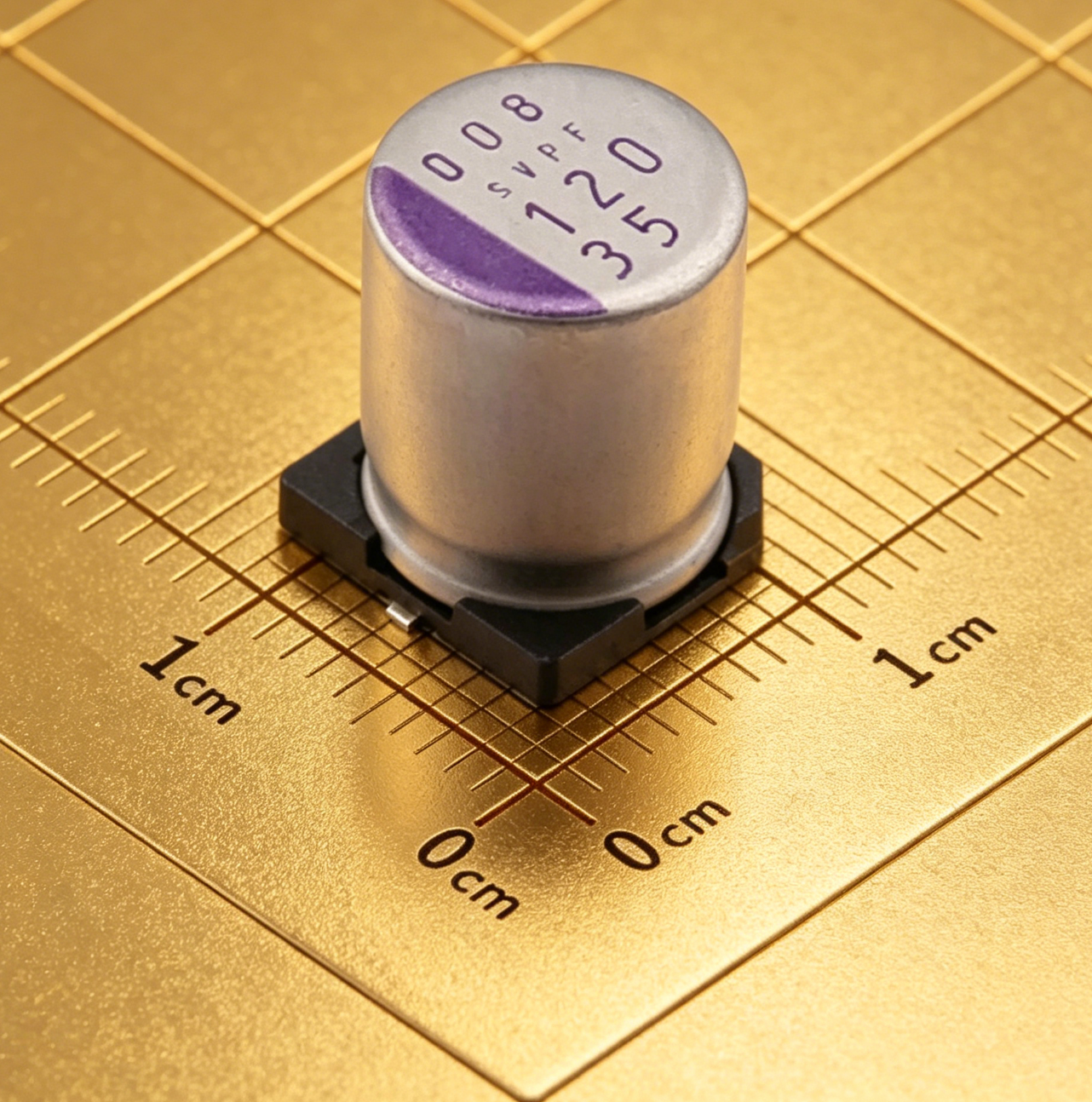

35SVPF120M - 35V 120µF Aluminum Polymer Capacitor (SMD)
35SVPF120M is a high-performance solid aluminum polymer capacitor from Panasonic, designed for applications requiring low ESR, high ripple current capability, and long service life.
It is widely used in power supply filtering, DC-DC converters, and industrial electronics where stable performance and reliability are critical.
This page is for reference only. Always confirm specifications using the official datasheet.
Overview
35SVPF120M belongs to Panasonic's conductive polymer capacitor series, offering significantly lower ESR compared to traditional electrolytic capacitors.
Its stable capacitance over temperature and frequency makes it suitable for high-efficiency power conversion systems and compact PCB designs.
Key Advantages
Improves efficiency and reduces heat in power circuits.
Supports stable operation in switching regulators.
Extended reliability compared to liquid electrolytic capacitors.
Optimized for high-density PCB layouts.
Feature Summary
120µF
35V
Conductive polymer aluminum
Surface Mount (SMD)

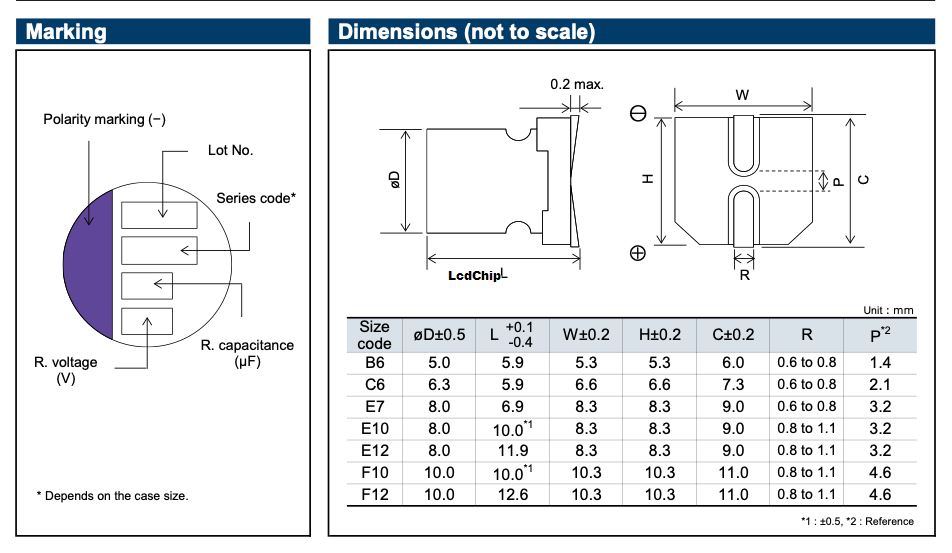

Package & Footprint
The 35SVPF120M comes in a compact SMD aluminum capacitor package, typically around 10mm × 10mm footprint.
- SMD aluminum polymer capacitor
- Compact cylindrical form
- Optimized for automated assembly
Key Specifications
| Capacitance | 120µF |
|---|---|
| Rated Voltage | 35V |
| Capacitor Type | Aluminum Polymer |
| ESR | Low ESR |
| Mounting | SMD |
| Application | Power filtering |
Equivalent
Alternative parts for 35SVPF120M include:
- 875115657008 (Würth Elektronik) – Pin-to-pin compatible
- PCV1V121MCL2GS (Nichicon) – Pin-to-pin compatible
- MAL218097003E3 (Vishay) – Functionally similar
Applications
Switching Power Supplies
DC-DC and AC-DC filtering
Industrial Equipment
Stable voltage filtering
Consumer Electronics
Compact power circuits
Telecom Systems
High reliability power rails
FAQ
What is the advantage of polymer capacitors?
Can this replace electrolytic capacitors?
35SVPF120M Information
- Specifications
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Panasonic Electronic Components - Semiconductor Products
- Series:
- OS-CON™, SVPF
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- Polymer
- Capacitance:
- 120 µF
- Tolerance:
- ±20%
- Voltage - Rated:
- 35 V
- ESR (Equivalent Series Resistance):
- 18mOhm
- Lifetime @ Temp.:
- 5000 Hrs @ 105°C
- Operating Temperature:
- -55°C ~ 105°C
- Ratings:
- -
- Applications:
- General Purpose
- Features:
- -
- Ripple Current @ Low Frequency:
- 220 mA @ 120 Hz
- Ripple Current @ High Frequency:
- 4.4 A @ 100 kHz
- Impedance:
- -
- Lead Spacing:
- -
- Size / Dimension:
- 0.394" Dia (10.00mm)
- Height - Seated (Max):
- 0.500" (12.70mm)
- Surface Mount Land Size:
- 0.406" L x 0.406" W (10.30mm x 10.30mm)
- Mounting Type:
- Surface Mount
