TE Connectivity AMP Connectors 3-1393303-8
- Part No.:
- 3-1393303-8
- Manufacturer:
- TE Connectivity AMP Connectors
- Category:
- Automotive Relays
- Package:
- Description:
- RELAY GEN PURPOSE SPST 20A 24V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
3-1393303-8 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- TE Connectivity AMP Connectors
- Series:
- F4
- Packaging:
- Bulk
- Product Status:
- Active
- Coil Type:
- Non Latching
- Coil Current:
- 74.1 mA
- Coil Voltage:
- 24VDC
- Contact Form:
- SPST-NO (1 Form A)
- Contact Rating (Current):
- 20 A
- Switching Voltage:
- 28VDC - Nom
- Must Operate Voltage:
- 14.4 VDC
- Must Release Voltage:
- 3.2 VDC
- Operate Time:
- 7 ms
- Release Time:
- 2 ms
- Features:
- Resistor
- Mounting Type:
- Chassis Mount
- Termination Style:
- Plug In, Quick Connect - 0.110" (2.8mm)
- Operating Temperature:
- -40°C ~ 125°C

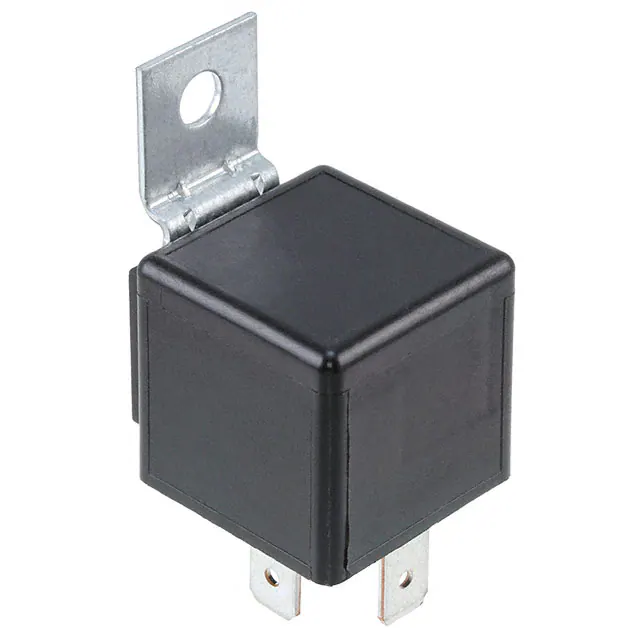

| Image |  |
|
 |
|
| Part Number | 3-1393303-7 | 3-1393303-4 | 3-1414937-3 | 3-1393303-8 |
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Series | F4 | F4 | F7 | F4 |
| Packaging | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active |
| Coil Type | Non Latching | Non Latching | Non Latching | Non Latching |
| Coil Current | - | - | 83.3 mA | 74.1 mA |
| Coil Voltage | 24VDC | 12VDC | 24VDC | 24VDC |
| Contact Form | SPST-NO (1 Form A) | SPST-NO (1 Form A) | SPST-NO (1 Form A) | SPST-NO (1 Form A) |
| Contact Rating (Current) | 60 A | 60 A | 70 A | 20 A |
| Switching Voltage | 24VDC - Nom | 12VDC - Nom | 24VDC - Nom | 28VDC - Nom |
| Must Operate Voltage | 14.4 VDC | 7.2 VDC | 14.4 VDC | 14.4 VDC |
| Must Release Voltage | 3.2 VDC | 1.6 VDC | 2.4 VDC | 3.2 VDC |
| Operate Time | 7 ms | 7 ms | 7 ms | 7 ms |
| Release Time | 2 ms | 2 ms | 2 ms | 2 ms |
| Features | - | - | - | Resistor |
| Mounting Type | Chassis Mount | Chassis Mount | Through Hole | Chassis Mount |
| Termination Style | Plug In, Quick Connect - 0.250" (6.3mm) | Plug In, Quick Connect - 0.250" (6.3mm) | PC Pin | Plug In, Quick Connect - 0.110" (2.8mm) |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
