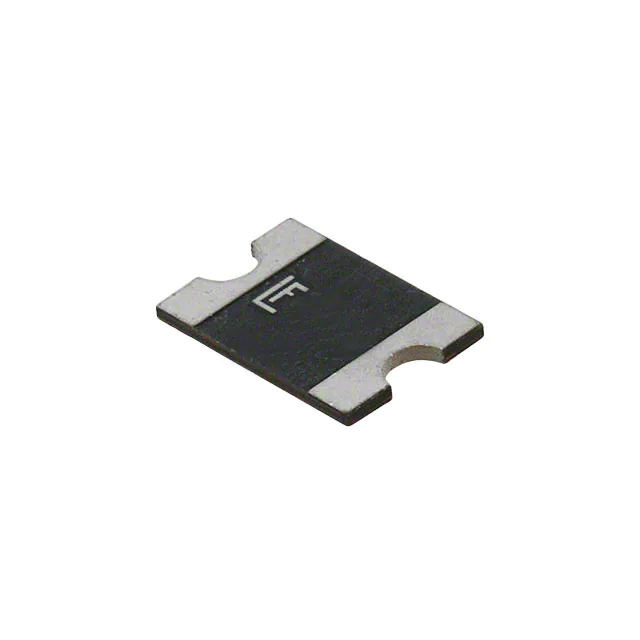

Littelfuse Inc. 2920L700/12MR

Product attributes

Attribute value

Manufacturer:

Littelfuse Inc.

Package/Case:

2920 (7351 Metric), Concave

Series:

POLY-FUSE®, 2920L

Packaging:

Tape & Reel (TR)

Product Status:

Active

Type:

Polymeric

Voltage - Max:

12V

Current - Hold (Ih) (Max):

7 A

Current - Trip (It):

14 A

Current - Max:

50 A

Time to Trip:

2 s

Resistance - Initial (Ri) (Min):

3 mOhms

Resistance - Post Trip (R1) (Max):

18 mOhms

Resistance - 25°C (Typ):

-

Operating Temperature:

-40°C ~ 85°C

Grade:

-

Qualification:

-

Ratings:

-

Mounting Type:

Surface Mount

Size / Dimension:

0.290" L x 0.202" W (7.36mm x 5.12mm)

Height - Seated (Max):

-

Thickness (Max):

0.063" (1.60mm)

Lead Spacing:

-
