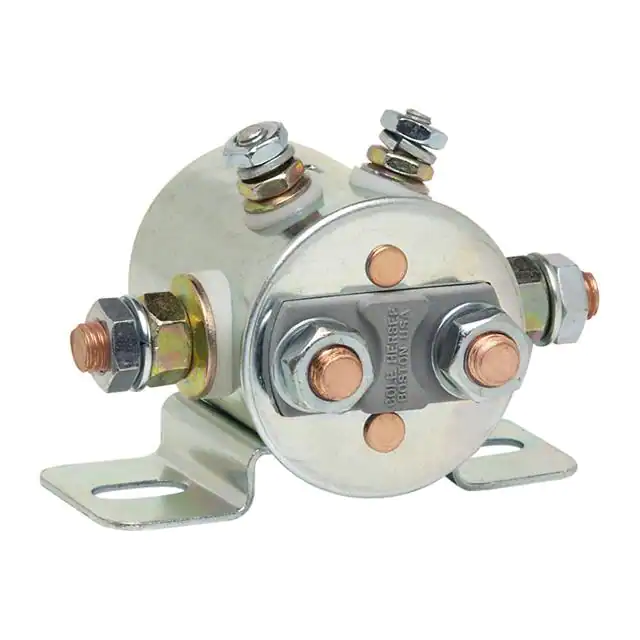

Cole Hersee 24401-01
- Part No.:
- 24401-01
- Manufacturer:
- Cole Hersee
- Category:
- Power Relays, Over 2 Amps
- Package:
- Description:
- RELAY GEN PURPOSE DPST 85A 12V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
24401-01 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Cole Hersee
- Series:
- -
- Packaging:
- Bulk
- Product Status:
- Active
- Mounting Type:
- Chassis Mount
- Coil Voltage:
- 12VDC
- Contact Form:
- DPST-NO (2 Form A)
- Contact Rating (Current):
- 85 A
- Switching Voltage:
- -
- Load - Max Switching:
- -
- Coil Current:
- 685.7 mA
- Coil Type:
- Non Latching
- Features:
- -
- Termination Style:
- Screw Terminal
- Seal Rating:
- -
- Coil Insulation:
- -
- Must Operate Voltage:
- -
- Must Release Voltage:
- -
- Operate Time:
- -
- Release Time:
- -
- Operating Temperature:
- -
- Contact Material:
- Copper
- Relay Type:
- General Purpose
- Grade:
- -
- Qualification:
- -
| Image |  |
 |
| Part Number | 24401-01 | 24401 |
| Manufacturer | Cole Hersee | Cole Hersee |
| Series | - | - |
| Packaging | Bulk | Bulk |
| Product Status | Active | Active |
| Mounting Type | Chassis Mount | Chassis Mount |
| Coil Voltage | 12VDC | 12VDC |
| Contact Form | DPST-NO (2 Form A) | SPDT (1 Form C) |
| Contact Rating (Current) | 85 A | 50 A |
| Switching Voltage | - | - |
| Load - Max Switching | - | - |
| Coil Current | 685.7 mA | 146.3 mA |
| Coil Type | Non Latching | Non Latching |
| Features | - | - |
| Termination Style | Screw Terminal | Screw Terminal |
| Seal Rating | - | Sealed - Fully |
| Coil Insulation | - | - |
| Must Operate Voltage | - | 7.8 VDC |
| Must Release Voltage | - | - |
| Operate Time | - | - |
| Release Time | - | - |
| Operating Temperature | - | -40°C ~ 85°C |
| Contact Material | Copper | Copper |
| Relay Type | General Purpose | General Purpose |
| Grade | - | - |
| Qualification | - | - |
