TE Connectivity AMP Connectors 2195846-2
- Part No.:
- 2195846-2
- Manufacturer:
- TE Connectivity AMP Connectors
- Category:
- RF Antennas
- Package:
- Description:
- FPC ANT, MHF, 100MM, 698-7125 MH
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
2195846-2 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- TE Connectivity AMP Connectors
- Series:
- -
- Packaging:
- Bag
- Product Status:
- Active
- RF Family/Standard:
- Cellular, Navigation
- Frequency Group:
- Wide Band
- Frequency (Center/Band):
- 829MHz, 1.595GHz, 2.205GHz, 3.5GHz, 4.7GHz, 5.5125GHz, 6.525GHz
- Frequency Range:
- 698MHz ~ 960MHz, 1.56GHz ~ 1.63GHz, 1.71GHz ~ 2.7GHz, 3.2GHz ~ 3.8GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz
- Antenna Type:
- PCB Trace
- Number of Bands:
- 7
- VSWR:
- 4
- Return Loss:
- -
- Gain:
- 4.99dBi
- Power - Max:
- -
- Features:
- Cable - 100mm
- Termination:
- MHF
- Ingress Protection:
- -
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Adhesive, Chassis Mount
- Height (Max):
- -
- Applications:
- 4G, LTE, GNSS
| Image |  |
 |
 |
 |
 |

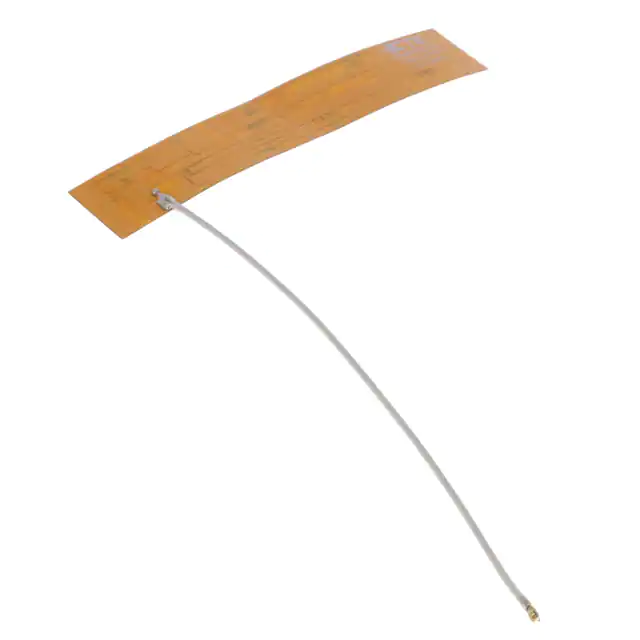

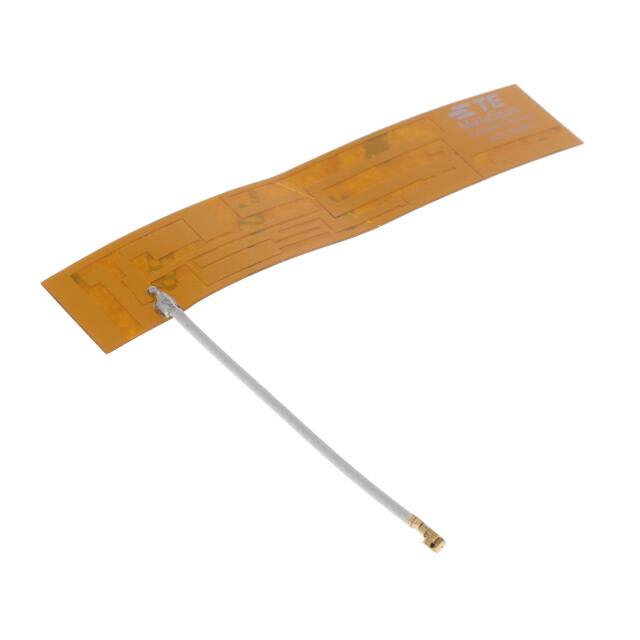

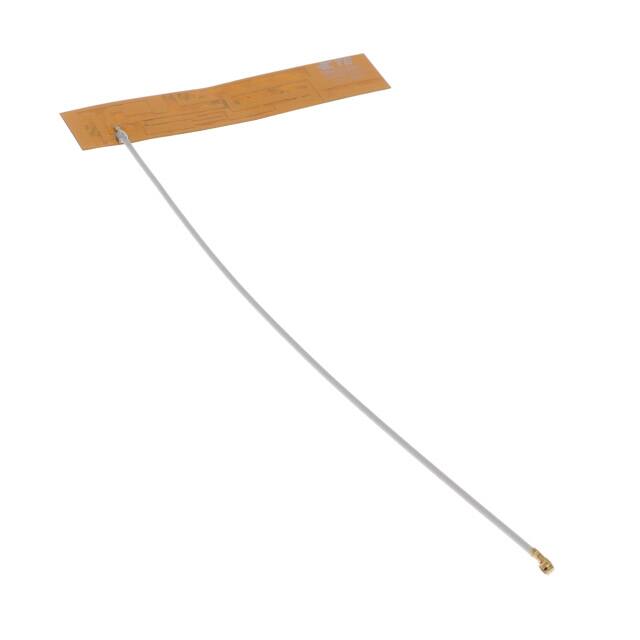

| Part Number | 2195846-2 | 2195846-1 | 2195846-3 | 2195846-5 | 2195846-6 |
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Series | - | - | - | - | - |
| Packaging | Bag | Bag | Bag | Bag | Bag |
| Product Status | Active | Active | Active | Active | Active |
| RF Family/Standard | Cellular, Navigation | Cellular, Navigation | Cellular, Navigation | Cellular, Navigation | Cellular, Navigation |
| Frequency Group | Wide Band | Wide Band | Wide Band | Wide Band | Wide Band |
| Frequency (Center/Band) | 829MHz, 1.595GHz, 2.205GHz, 3.5GHz, 4.7GHz, 5.5125GHz, 6.525GHz | 829MHz, 1.595GHz, 2.205GHz, 3.5GHz, 4.7GHz, 5.5125GHz, 6.525GHz | 829MHz, 1.595GHz, 2.205GHz, 3.5GHz, 4.7GHz, 5.5125GHz, 6.525GHz | 829MHz, 1.595GHz, 2.205GHz, 3.5GHz, 4.7GHz, 5.5125GHz, 6.525GHz | 829MHz, 1.595GHz, 2.205GHz, 3.5GHz, 4.7GHz, 5.5125GHz, 6.525GHz |
| Frequency Range | 698MHz ~ 960MHz, 1.56GHz ~ 1.63GHz, 1.71GHz ~ 2.7GHz, 3.2GHz ~ 3.8GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | 698MHz ~ 960MHz, 1.56GHz ~ 1.63GHz, 1.71GHz ~ 2.7GHz, 3.2GHz ~ 3.8GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | 698MHz ~ 960MHz, 1.56GHz ~ 1.63GHz, 1.71GHz ~ 2.7GHz, 3.2GHz ~ 3.8GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | 698MHz ~ 960MHz, 1.56GHz ~ 1.63GHz, 1.71GHz ~ 2.7GHz, 3.2GHz ~ 3.8GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | 698MHz ~ 960MHz, 1.56GHz ~ 1.63GHz, 1.71GHz ~ 2.7GHz, 3.2GHz ~ 3.8GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz |
| Antenna Type | PCB Trace | PCB Trace | PCB Trace | PCB Trace | PCB Trace |
| Number of Bands | 7 | 7 | 7 | 7 | 7 |
| VSWR | 4 | 4 | 4 | 4 | 4 |
| Return Loss | - | - | - | - | - |
| Gain | 4.99dBi | 4.99dBi | 4.99dBi | 4.99dBi | 4.99dBi |
| Power - Max | - | - | - | - | - |
| Features | Cable - 100mm | Cable - 50mm | Cable - 150mm | Cable - 50mm | Cable - 100mm |
| Termination | MHF | MHF | MHF | MHF4L | MHF4L |
| Ingress Protection | - | - | - | - | - |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Adhesive, Chassis Mount | Adhesive, Chassis Mount | Adhesive, Chassis Mount | Adhesive, Chassis Mount | Adhesive, Chassis Mount |
| Height (Max) | - | - | - | - | - |
| Applications | 4G, LTE, GNSS | 4G, LTE, GNSS | 4G, LTE, GNSS | 4G, LTE, GNSS | 4G, LTE, GNSS |
