TE Connectivity Potter & Brumfield Relays 2-1904058-7

Name: 2-1904058-7
Brand: TE Connectivity Potter & Brumfield Relays
SKU: 2-1904058-7
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: 2-1904058-7

Manufacturer:: TE Connectivity Potter & Brumfield Relays

Category:: Automotive Relays

Package:

Description:: RELAY AUTO SPST-NO 20A 12V

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

2-1904058-7 Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: TE Connectivity Potter & Brumfield Relays

Series:: Mini K HV

Packaging:: Bulk

Product Status:: Active

Coil Type:: Non Latching

Coil Current:: 288 mA

Coil Voltage:: 12VDC

Contact Form:: SPST-NO (DM) (1 Form X)

Contact Rating (Current):: 20 A

Switching Voltage:: 400VDC - Nom

Must Operate Voltage:: 6.9 VDC

Must Release Voltage:: 1.2 VDC

Operate Time:: 2.5 ms

Release Time:: 1 ms

Features:: Resistor

Mounting Type:: Socketable

Termination Style:: Plug In, Quick Connect - 0.250" (6.3mm)

Operating Temperature:: -40°C ~ 85°C

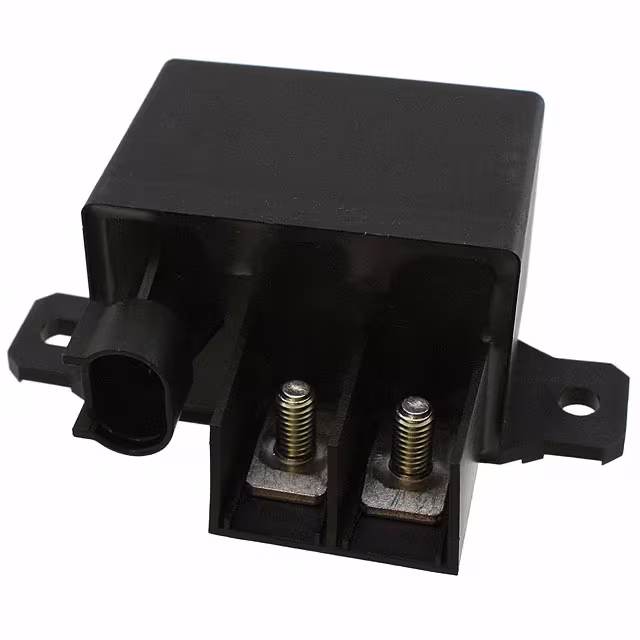

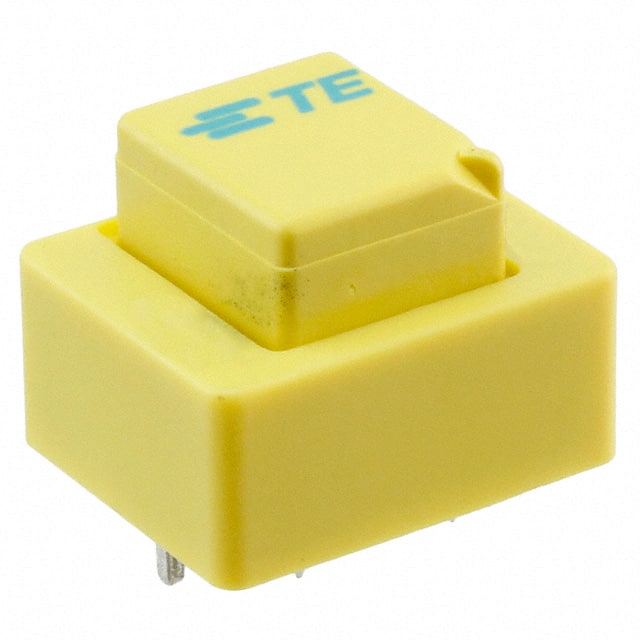

Part Number	2-1904058-7	2359393-1	2-1904058-5	2-1414939-2	2359392-1
Manufacturer	TE Connectivity Potter & Brumfield Relays	TE Connectivity Potter & Brumfield Relays	TE Connectivity Potter & Brumfield Relays	TE Connectivity Potter & Brumfield Relays	TE Connectivity Potter & Brumfield Relays
Series	Mini K HV	Micro Relay A	Mini K HV	High Current Relay 150	Micro Relay A
Packaging	Bulk	Box	Bulk	Bulk	Box
Product Status	Active	Active	Active	Active	Active
Coil Type	Non Latching	Non Latching	Non Latching	Non Latching	Non Latching
Coil Current	288 mA	55.8 mA	240 mA	324 mA	55.8 mA
Coil Voltage	12VDC	24VDC	12VDC	12VDC	24VDC
Contact Form	SPST-NO (DM) (1 Form X)	SPST-NO (1 Form A)	SPST-NO (DM) (1 Form X)	SPST-NO (1 Form A)	SPST-NO (1 Form A)
Contact Rating (Current)	20 A	30 A	20 A	130 A	30 A
Switching Voltage	400VDC - Nom	32VDC - Max	400VDC - Nom	12VDC - Nom	32VDC - Max
Must Operate Voltage	6.9 VDC	14.4 VDC	6.9 VDC	7.2 VDC	14.4 VDC
Must Release Voltage	1.2 VDC	3.6 VDC	1.2 VDC	1.2 VDC	3.6 VDC
Operate Time	2.5 ms	6 ms	2.5 ms	25 ms	6 ms
Release Time	1 ms	3 ms	1 ms	8 ms	3 ms
Features	Resistor	Diode	-	IP67 - Dust Tight, Waterproof	Resistor
Mounting Type	Socketable	Socketable	Through Hole	Chassis Mount	Socketable
Termination Style	Plug In, Quick Connect - 0.250" (6.3mm)	Plug In, Quick Connect - Multiple Sizes	PC Pin	Stud	Plug In, Quick Connect - Multiple Sizes
Operating Temperature	-40°C ~ 85°C	-40°C ~ 125°C	-40°C ~ 85°C	-40°C ~ 125°C	-40°C ~ 125°C
