TE Connectivity AMP Connectors 2118907-4

Name: 2118907-4
Brand: TE Connectivity AMP Connectors
SKU: 2118907-4
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: 2118907-4

Manufacturer:: TE Connectivity AMP Connectors

Category:: RF Antennas

Package:

Description:: PCB ANT. MHF, 150MM, WI-FI 6E TR

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

2118907-4 Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: TE Connectivity AMP Connectors

Series:: -

Packaging:: Bag

Product Status:: Active

RF Family/Standard:: 802.15.4, Bluetooth, WiFi

Frequency Group:: UHF (2GHz ~ 3GHz), SHF (f > 4GHz)

Frequency (Center/Band):: 2.45GHz, 5.5125GHz, 6.525GHz

Frequency Range:: 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz

Antenna Type:: PCB Trace

Number of Bands:: 3

VSWR:: 2

Return Loss:: -

Gain:: 5dBi

Power - Max:: -

Features:: Cable - 150mm

Termination:: MHF

Ingress Protection:: -

Grade:: -

Qualification:: -

Mounting Type:: Adhesive

Height (Max):: 0.013" (0.34mm)

Applications:: 802.11a/b/g/-c/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™

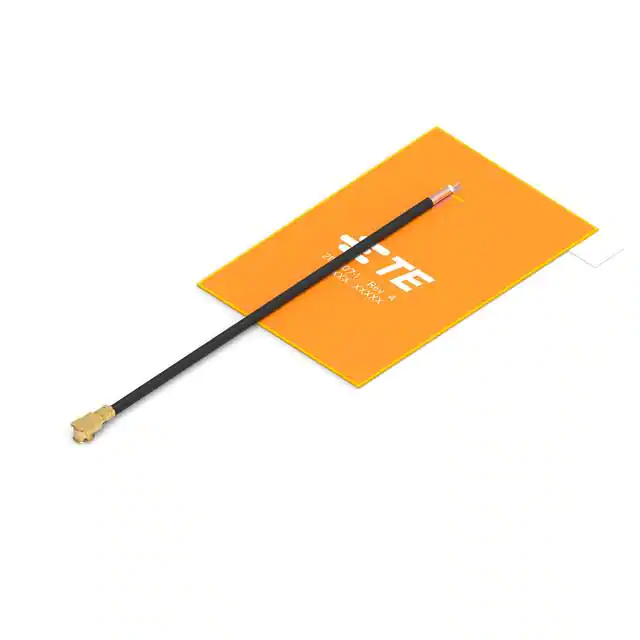

Part Number	2118907-1	2118907-3	2118907-8	2118907-9	2118907-2
Manufacturer	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors
Series	-	-	-	-	-
Packaging	Bag	Bag	Bag	Bag	Bag
Product Status	Active	Active	Active	Active	Active
RF Family/Standard	Bluetooth, WiFi	802.15.4, Bluetooth, WiFi	802.15.4, Bluetooth, WiFi	802.15.4, Bluetooth, WiFi	802.15.4, Bluetooth, WiFi
Frequency Group	UHF (2GHz ~ 3GHz), SHF (f > 4GHz)	UHF (2GHz ~ 3GHz), SHF (f > 4GHz)	UHF (2GHz ~ 3GHz), SHF (f > 4GHz)	UHF (2GHz ~ 3GHz), SHF (f > 4GHz)	UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency (Center/Band)	2.45GHz, 5.5125GHz, 6.525GHz	2.45GHz, 5.5125GHz, 6.525GHz	2.45GHz, 5.5125GHz, 6.525GHz	2.45GHz, 5.5125GHz, 6.525GHz	2.45GHz, 5.5125GHz, 6.525GHz
Frequency Range	2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz	2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz	2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz	2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz	2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz
Antenna Type	PCB Trace	PCB Trace	PCB Trace	PCB Trace	PCB Trace
Number of Bands	3	3	3	3	3
VSWR	1.8	2	2	2	1.8
Return Loss	-	-	-	-	-
Gain	4.4dBi, 4.4dBi, 4.4dBi	4.2dBi	4.5dBi	3.7dBi	5.5dBi
Power - Max	-	-	-	-	-
Features	Cable - 120mm	Cable - 100mm	Cable - 150mm	Cable - 200mm	Cable - 50mm
Termination	MHF	MHF	MHF4L	MHF4L	MHF
Ingress Protection	-	-	-	-	-
Grade	-	-	-	-	-
Qualification	-	-	-	-	-
Mounting Type	Adhesive	Adhesive	Adhesive	Adhesive	Adhesive
Height (Max)	0.013" (0.34mm)	0.013" (0.34mm)	0.013" (0.34mm)	0.013" (0.34mm)	0.013" (0.34mm)
Applications	802.11a/b/g/n/ac/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™	802.11a/b/g/-c/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™	802.11a/b/g/-c/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™	802.11a/b/g/-c/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™	802.11a/b/g/-c/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™
