TE Connectivity AMP Connectors 2118308-4
- Part No.:
- 2118308-4
- Manufacturer:
- TE Connectivity AMP Connectors
- Category:
- RF Antennas
- Package:
- Datasheet:
-
2118308-4.pdf
- Description:
- 4G WORLD BAND, METASPAN, PCB ANT
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
2118308-4 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- TE Connectivity AMP Connectors
- Series:
- *
- Packaging:
- Bag
- Product Status:
- Active
- RF Family/Standard:
- -
- Frequency Group:
- -
- Frequency (Center/Band):
- -
- Frequency Range:
- -
- Antenna Type:
- -
- Number of Bands:
- -
- VSWR:
- -
- Return Loss:
- -
- Gain:
- -
- Power - Max:
- -
- Features:
- -
- Termination:
- -
- Ingress Protection:
- -
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- -
- Height (Max):
- -
- Applications:
- -

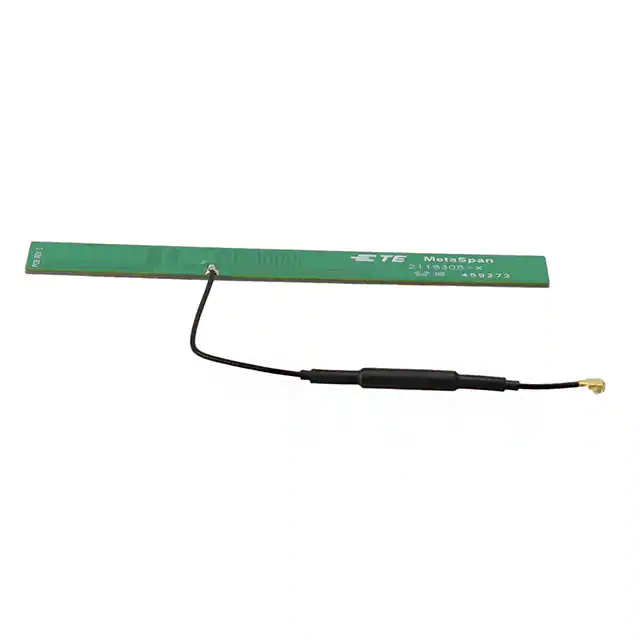

| Image |  |
 |
|
|
| Part Number | 2118308-1 | 2118308-8 | 2118308-2 | 2118308-4 |
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Series | - | - | - | * |
| Packaging | Bulk | Bulk | Bag | Bag |
| Product Status | Active | Active | Active | Active |
| RF Family/Standard | Cellular | 802.15.4, Cellular, General ISM | 802.15.4, Cellular, General ISM | - |
| Frequency Group | Wide Band | Wide Band | Wide Band | - |
| Frequency (Center/Band) | 829MHz, 1.94GHz, 2.5GHz | 829MHz, 859MHz, 869MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.5GHz | 829MHz, 859MHz, 869MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.5GHz | - |
| Frequency Range | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | 698MHz ~ 960MHz, 824MHz ~ 894MHz, 868MHz ~ 870MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | 698MHz ~ 960MHz, 824MHz ~ 894MHz, 868MHz ~ 870MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | - |
| Antenna Type | PCB Trace | PCB Trace | PCB Trace | - |
| Number of Bands | 3 | 8 | 8 | - |
| VSWR | 3 | 3 | 3 | - |
| Return Loss | - | - | - | - |
| Gain | 3.9dBi | 3.9dBi | 3.9dBi | - |
| Power - Max | - | - | - | - |
| Features | Cable - 120mm | Cable - 290mm | Cable - 120mm | - |
| Termination | U.FL (UMCC), I-PEX MHF1 | MHF | MHF4L | - |
| Ingress Protection | - | - | - | - |
| Grade | - | - | - | - |
| Qualification | - | - | - | - |
| Mounting Type | Adhesive | Adhesive | Adhesive | - |
| Height (Max) | 0.052" (1.31mm) | 0.052" (1.32mm) | 0.052" (1.32mm) | - |
| Applications | LTE | CDMA, GSM, ISM, LTE, UMTS, ZigBee™ | CDMA, GSM, ISM, LTE, UMTS, ZigBee™ | - |
