KYOCERA AVX 1002289F0-AA10L0100

Name: 1002289F0-AA10L0100
Brand: KYOCERA AVX
SKU: 1002289F0-AA10L0100
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: 1002289F0-AA10L0100

Manufacturer:: KYOCERA AVX

Category:: RF Antennas

Package:

Datasheet:: 1002289F0-AA10L0100.pdf

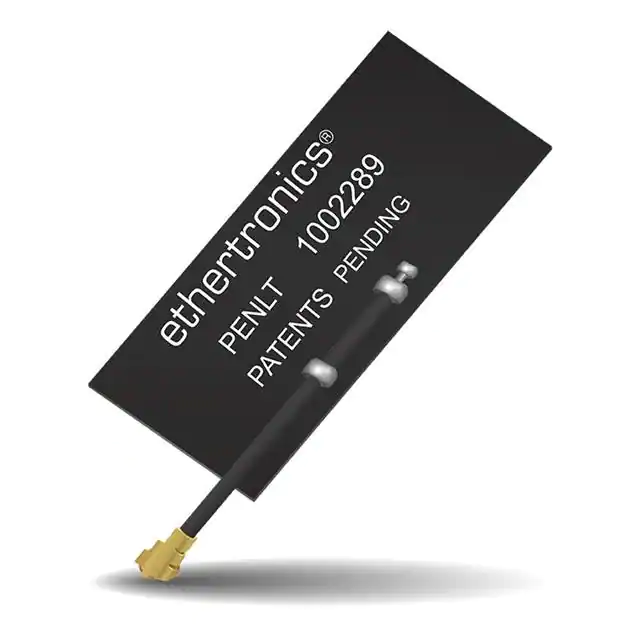

Description:: ANTENNA 100MM LTE/CELLULAR WIDE

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

1002289F0-AA10L0100 Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: KYOCERA AVX

Series:: Prestta™

Packaging:: Bulk

Product Status:: Active

RF Family/Standard:: Cellular

Frequency Group:: Wide Band

Frequency (Center/Band):: 700MHz, 750MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.7GHz

Frequency Range:: 700MHz ~ 960MHz, 1.71GHz ~ 2.7GHz

Antenna Type:: Flat Patch

Number of Bands:: 8

VSWR:: 2.5

Return Loss:: -

Gain:: -

Power - Max:: 2 W

Features:: Cable - 100mm

Termination:: U.FL (UMCC), I-PEX MHF1

Ingress Protection:: -

Grade:: -

Qualification:: -

Mounting Type:: Adhesive

Height (Max):: 0.049" (1.25mm)

Applications:: CDMA, DCS, EDGE, GPRS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA

Part Number	1002289F0-AA10L0100	1002289F0-AA10L0075	1002289F0-AA10L0025	1002289F0-AA10L0050	1002289F0-AA10L0150
Manufacturer	KYOCERA AVX	KYOCERA AVX	KYOCERA AVX	KYOCERA AVX	KYOCERA AVX
Series	Prestta™	-	-	-	-
Packaging	Bulk	Box	Box	Box	Box
Product Status	Active	Active	Active	Active	Active
RF Family/Standard	Cellular	Cellular	Cellular	Cellular	Cellular
Frequency Group	Wide Band	UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz)	UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz)	UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz)	UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz)
Frequency (Center/Band)	700MHz, 750MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.7GHz	829MHz, 2.2GHz	829MHz, 2.2GHz	829MHz, 2.2GHz	829MHz, 2.2GHz
Frequency Range	700MHz ~ 960MHz, 1.71GHz ~ 2.7GHz	698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz	698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz	698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz	698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz
Antenna Type	Flat Patch	PCB Trace	PCB Trace	PCB Trace	PCB Trace
Number of Bands	8	2	2	2	2
VSWR	2.5	2.5	2.5	2.5	2.5
Return Loss	-	-	-	-	-
Gain	-	2.9dBi, 4.3dBi	2.9dBi, 4.3dBi	2.9dBi, 4.3dBi	2.9dBi, 4.3dBi
Power - Max	2 W	2 W	2 W	2 W	2 W
Features	Cable - 100mm	Cable - 75mm	Cable - 25mm	Cable - 50mm	Cable - 150mm
Termination	U.FL (UMCC), I-PEX MHF1	U.FL	U.FL	U.FL	U.FL
Ingress Protection	-	-	-	-	-
Grade	-	-	-	-	-
Qualification	-	-	-	-	-
Mounting Type	Adhesive	Adhesive	Adhesive	Adhesive	Adhesive
Height (Max)	0.049" (1.25mm)	0.008" (0.20mm)	0.008" (0.20mm)	0.008" (0.20mm)	0.008" (0.20mm)
Applications	CDMA, DCS, EDGE, GPRS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA	Cellular, LTE-M, NB-IoT, loRa, SigFox	Cellular, LTE-M, NB-IoT, loRa, SigFox	Cellular, LTE-M, NB-IoT, loRa, SigFox	Cellular, LTE-M, NB-IoT, loRa, SigFox
