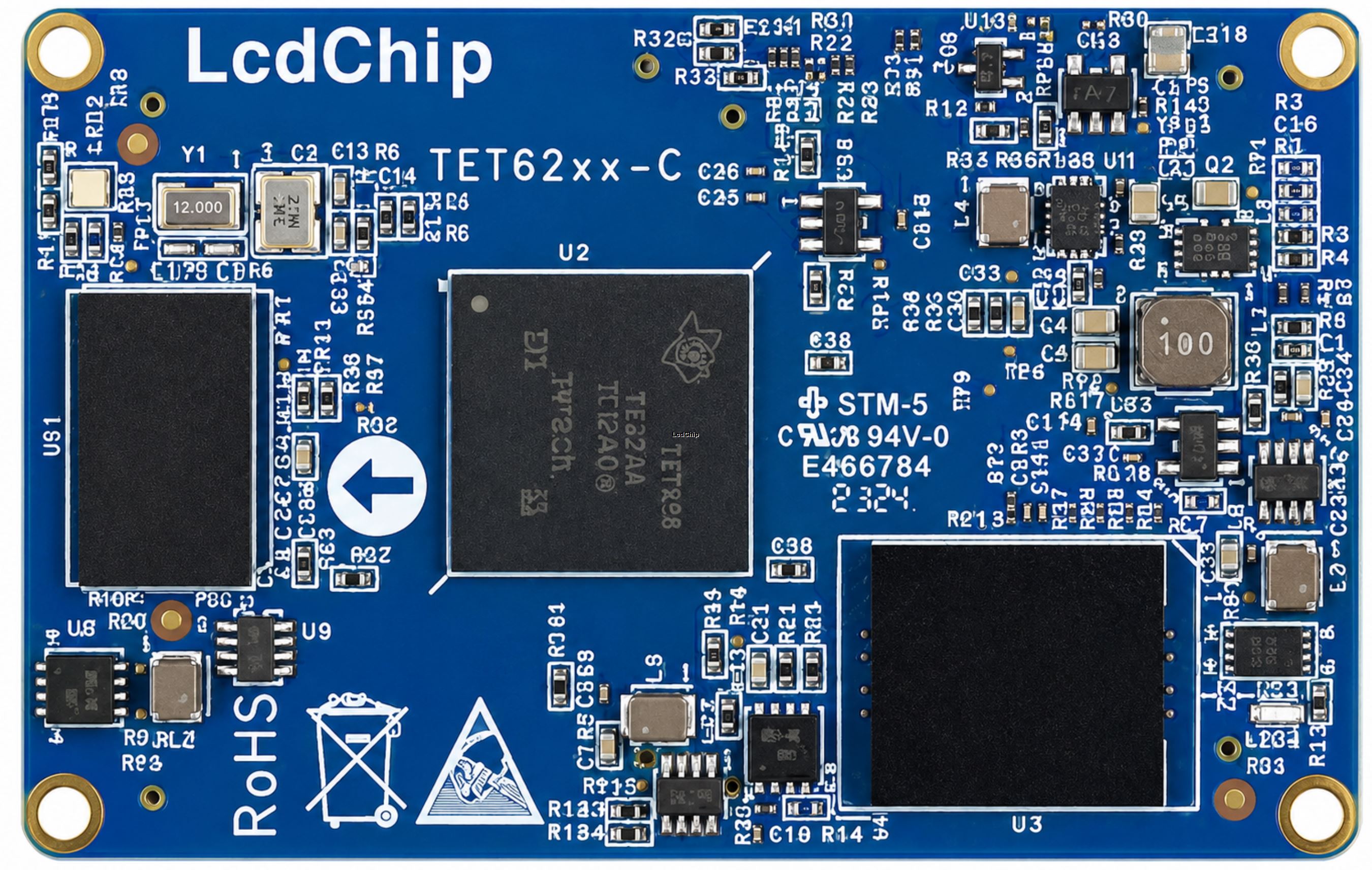

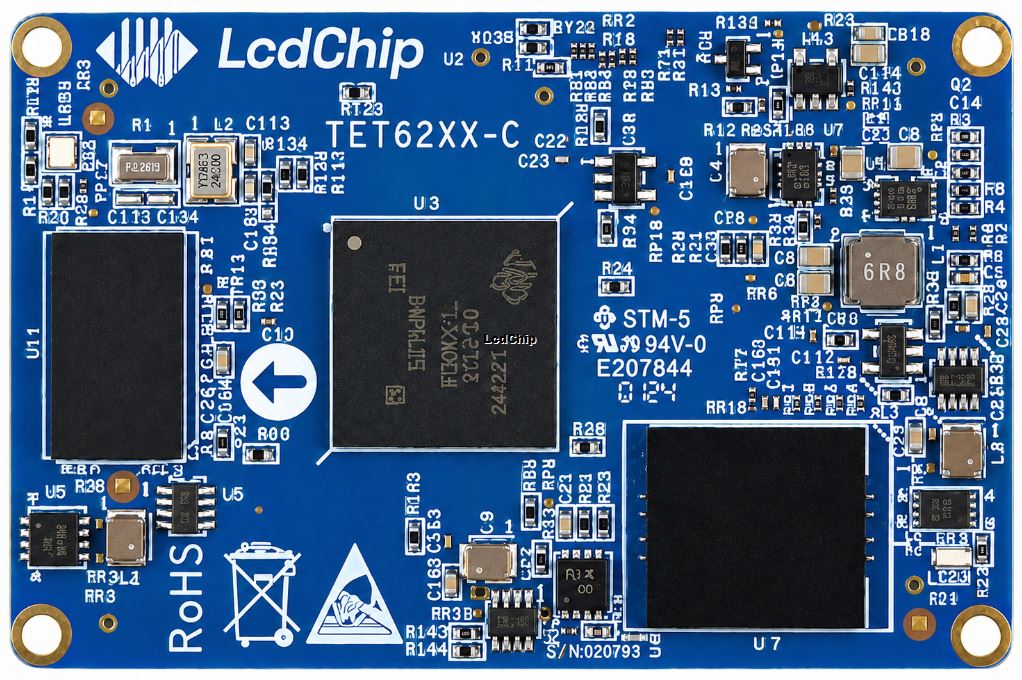

TET62xx-C TI AM62x Industrial Core Board with Single-Core, Dual-Core and Quad-Core Options
Without changing the external interface and core functions, the TET62xx-C series adopts pin-compatible designs across three AM62x core boards. Customers can freely choose single-core, dual-core or quad-core versions according to project requirements, without secondary hardware development.
| Model | CPU Cores | Frequency | RAM DDR4 | ROM eMMC | Operating Temperature | Operating System |
|---|---|---|---|---|---|---|
| TET6231-C | Single-Core | 1.0GHz | 1GB | 8GB | -40°C to +85°C | Linux 6.1.33 |
| TET6232-C | Dual-Core | 1.4GHz | 1GB | 8GB | -40°C to +85°C | Linux 6.1.33 |
| TET6232-C | Dual-Core | 1.4GHz | 2GB | 8GB | -40°C to +85°C | Linux 6.1.33 |
| TET6254-C | Quad-Core | 1.4GHz | 1GB | 8GB | -40°C to +85°C | Linux 6.1.33 |
| TET6254-C | Quad-Core | 1.4GHz | 2GB | 8GB | -40°C to +85°C | Linux 6.1.33 |
TET62xx-C Core Board
The TET6254-C core board is based on the TI Sitara™ AM62x series industrial processor. It adopts the Arm Cortex-A53 architecture with a maximum frequency of up to 1.4GHz and integrates rich interfaces such as dual TSN-capable Ethernet, USB 2.0, LVDS, RGB parallel, UART, OSPI, CAN-FD, camera and audio. The TET62xx-C series is compatible with AM62x single-core, dual-core and quad-core processors, offering flexible and cost-effective options for shortening product development cycles.
TI AM62x: A Classic Platform, Continued
As a new-generation MPU in the TI Sitara™ product line, the AM62x processor provides higher performance and stronger feature expansion than the previous AM335x platform, helping customers continue proven industrial designs with upgraded computing, graphics, display and peripheral capabilities.
ARM Performance Enhancement
| AM335x | AM62x |
| 1 × Cortex-A8 | 1 / 2 / 4 × Cortex-A53 |
| Up to 1GHz | Up to 1.4GHz |
| Up to 2K DMIPS | Up to 16.8K DMIPS |
GPU Enhancement
| AM335x | AM62x |
| SGX530 @ 200MHz | AXE1-16M @ 500MHz |
| 1.6G FLOPS | 8G FLOPS |
| OpenGL ES 2.0 | OpenGL ES 3.1, Vulkan |
Peripheral Enhancement
| UART × 6 | UART × 9 |
| CAN × 2 | CAN-FD × 3 |
| I²C × 3 | I²C × 6 |
| SPI × 2 | SPI × 4 |
| GPMC 100MHz | GPMC 133MHz |
Display and New Feature Enhancement
| Single Display | Dual Display |
| RGB 888 | DPI + LVDS |
| 1080p30 | 2K, 1080p60 |
| Standard Ethernet | Dual Ethernet with TSN |
| - | CSI-RX 4-lane, OSPI |
Three Native CAN-FD Channels for Industrial and Vehicle Applications
The AM62x processor natively supports up to three CAN-FD channels, with transmission speeds up to 5Mbps. It can be connected to industrial networks at high speed and with reliable stability, providing strong communication support for industrial automation and vehicle-mounted applications.
Parallel Bus Support for High-Speed ARM and FPGA Communication
The AM62x series supports the GPMC interface, a general-purpose memory controller interface unique to TI processors. It provides high-speed data read and write performance up to 100MB/s, supports flexible multi-chip selection and enables wide communication with external devices, including FPGA expansion designs.
Triple Display Capability for Flexible Expansion
The TET62xx-C core board supports up to two display controllers and can output two different display contents at the same time. As an early AM62x-based core-board solution supporting triple-display scenarios, it provides strong flexibility for industrial HMI, medical terminals and customized multi-screen equipment.
Industry Applications
The TET62xx-C core board is suitable for industrial automation, electric power, medical, transportation and other industries. Typical products include industrial HMI, EV charging TCU, industrial controllers, data acquisition gateways, PCR systems and blood analyzers.
TET62xx-C Core Board Basic Specifications
| Processor |
TI Sitara™ AM62x CPU: Cortex-A53 @ 1.0GHz / 1.4GHz MCU: Cortex-M4F @ 400MHz GPU: AM6231 and AM6232 do not include GPU; AM6254 supports AXE1-16M @ 500MHz, OpenGL ES 3.x / 2.0 / 1.1 with extensions and Vulkan 1.2. |
|---|---|
| RAM | AM6231: 1GB DDR4; AM6232: 1GB / 2GB DDR4; AM6254: 1GB / 2GB DDR4 |
| ROM | 8GB eMMC |
| Operating Voltage | DC 5V |
| Operating Temperature | -40°C to +85°C |
| Connection Method | Board-to-board connector, 4 × 80-pin, 0.5mm pitch |
| Operating System | Linux 6.1.33 |
| System Flashing Method | SD / TF card, USB flash drive, USB DFU |
| Mechanical Size | 38mm × 60mm |
AM62x Processor Comparison and TET62xx-C Product Selection
| Item | AM6254 | AM6252 | AM6251 | AM6234 | AM6232 | AM6231 |
|---|---|---|---|---|---|---|
| CPU Cores | 4 | 2 | 1 | 4 | 2 | 1 |
| 3D Graphics Engine | Yes | Yes | Yes | No | No | No |
| TET62xx-C Product Available | Yes | No | No | No | Yes | Yes |
TET62xx-C Core Board Functional Parameters
| Function | Quantity | Parameters |
|---|---|---|
| LVDS | 2 | Provides two 4-lane LVDS display serial interfaces with up to 1.19Gbps per lane. A single LVDS interface supports up to WUXGA 1920 × 1200 @ 60fps with a 162MHz pixel clock. Supports single LVDS output, duplicated dual single-LVDS output and 1 × dual-link LVDS output. |
| RGB Parallel | 1 | Provides one 24-bit RGB parallel display interface. Supports up to WUXGA 1920 × 1200 @ 60fps with a 165MHz pixel clock. |
| MIPI CSI | 1 | Provides one 4-lane MIPI camera serial interface. Supports 1, 2, 3 or 4-lane modes with up to 2.5Gbps per lane. |
| Audio | Up to 3 | Supports transmit and receive clocks up to 50MHz, TDM, I²S and similar formats, as well as digital audio transmission formats such as SPDIF, IEC60958-1 and AES-3. |
| SD / SDIO | Up to 2 | Supports two 4-bit SD / SDIO interfaces up to UHS-I. Compliant with eMMC 5.1, SD 3.0 and SDIO 3.0. |
| Ethernet | 2 | Supports RMII 10/100 or RGMII 10/100/1000, IEEE 1588, TSN and hardware IP / UDP / TCP checksum offload. |
| USB | 2 | Supports USB 2.0 up to 480Mbps. Ports can be configured as USB host, USB device or USB dual-role device. |
| UART | Up to 9 | Compatible with 16C750. Supports automatic flow control for external RS485 transceivers, parity checking and baud rates up to 3.6Mbps. |
| CAN-FD | Up to 3 | Compliant with CAN 2.0A, CAN 2.0B and ISO 11898-1. Supports message RAM parity / ECC checking and transmission rates up to 5Mbps. |
| SPI | Up to 5 | Each channel supports programmable serial clock frequency, polarity and phase. MCSPI controller clock rate up to 50MHz. |
| I²C | Up to 6 | Supports standard mode up to 100Kbps and fast mode up to 400Kbps. |
| PWM | Up to 3 | Each PWM group supports two PWM outputs, EPWMxA and EPWMxB. |
| eQEP | Up to 3 | Enhanced quadrature encoder pulse input with input synchronization, quadrature decoding, position measurement counter and low-speed edge capture functions. |
| eCAP | Up to 3 | Enhanced capture module for audio sampling-rate measurement, rotating machinery speed measurement, sensor pulse timing, pulse period and duty-cycle measurement and encoded signal amplitude analysis. |
| GPMC | 1 | Clock rate up to 133MHz. Flexible 8-bit and 16-bit asynchronous memory interface, supporting up to four chips with 22-bit address bus. Can connect NAND, NOR, Muxed-NOR and SRAM. |
| OSPI / QSPI | 1 | Supports 166MHz DDR and 200MHz SDR modes. |
| JTAG | 1 | Supports JTAG debugging interface. |
