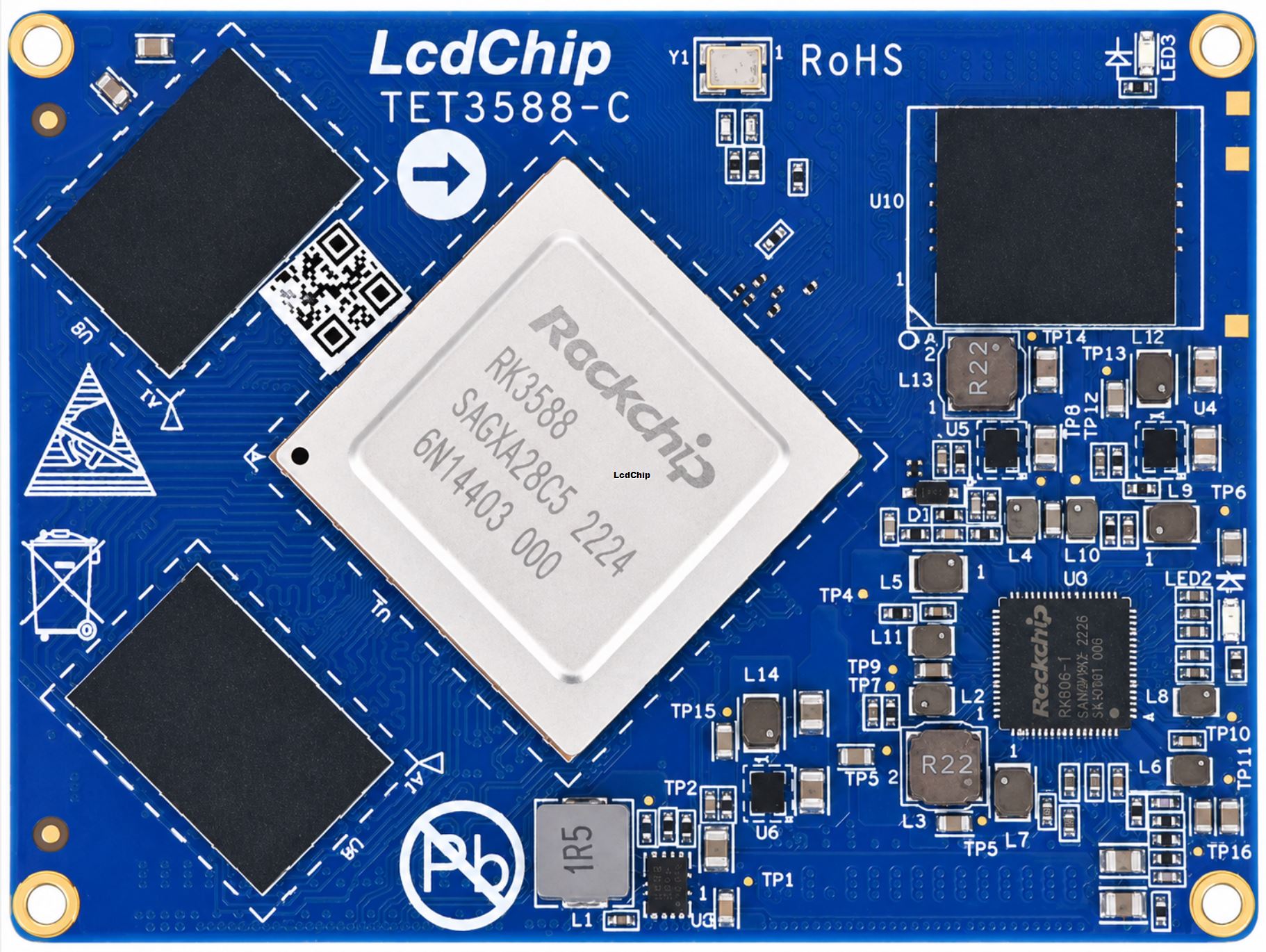

TET3588-C Rockchip RK3588 Flagship AIoT Core Board with 6 TOPS NPU and 8K Display

2026/8/11 17:06:22

The Lcdchip TET3588-C core board is based on the Rockchip RK3588 / RK3588J flagship processor platform. Built with an advanced 8nm process, it integrates four Cortex-A76 cores and four Cortex-A55 cores, a Mali-G610 MP4 GPU, 6 TOPS NPU, 8K video decoding, multi-display output, ISP 3.0, rich high-speed I/O and multiple operating-system options. It is designed for high-end AIoT, edge computing, smart display, industrial automation and multimedia applications.

Lcdchip TET3588-C

8-Core A76 + A55 CPU

2.4GHz Max Frequency

6 TOPS AI NPU

8K Display / Decode

4 Displays Multi-Screen Output

ISP 3.0 48MP Image Processing

PCIe 3.0 High-Speed Expansion

USB 3.1 5Gbps Interface

Dual GbE Network Interface

Android / Linux Multi-OS Support

Six Reasons to Choose TET3588-C

Flagship RK3588 Performance

8-core big.LITTLE architecture with Cortex-A76 and Cortex-A55 cores.

6 TOPS AI Computing

Tri-core NPU supports mixed-precision AI inference at the edge.

True 8K Multimedia

Supports 8K display output and 8K video decoding capability.

Four-Screen Display

HDMI, eDP, DP, MIPI-DSI and BT.1120 display interface resources.

Rich High-Speed I/O

PCIe, SATA, USB 3.1, USB 2.0, dual Ethernet, SDIO and CAN resources.

Industrial System Support

Linux, Android, Desktop Linux, OpenHarmony and OpenEuler options.

New-Generation Flagship AIoT Processor

As a flagship AIoT platform for the 8K era, RK3588 brings major improvements in integer computing, floating-point computing, memory bandwidth, system performance, power efficiency and core integration. The 8nm process, big.LITTLE architecture and L3 cache help the TET3588-C deliver powerful data processing capability for demanding embedded and industrial applications.

RK3588 High-Performance Version

RK3588 integrates four Cortex-A76 cores up to 2.4GHz and four Cortex-A55 cores up to 1.8GHz, providing strong computing performance for high-end AIoT terminals.

RK3588J Industrial Version

RK3588J integrates four Cortex-A76 cores up to 1.6GHz and four Cortex-A55 cores up to 1.3GHz, with an industrial temperature option from -40°C to +85°C.

Localized Component Control and Long Lifecycle Design

TET3588-C and TET3588J-C are positioned for long-lifecycle industrial projects that require stable supply, controlled component sourcing and reliable product continuity. The platform is designed to support high-end applications with stable performance, verified operation and long-term configuration management.

Stable Industrial Supply

The platform supports long-lifecycle deployment needs for industrial control, edge computing, display terminals and embedded AI products.

Reliable Configuration Management

Lcdchip can support project-oriented configuration selection, BOM planning, software adaptation and embedded product integration.

6 TOPS NPU for AI Edge Applications

The integrated Rockchip tri-core NPU can operate cooperatively or independently, enabling flexible computing-resource allocation. With up to 6 TOPS computing power and support for INT4, INT8, INT16 and FP16 mixed operations, the TET3588-C is suitable for edge AI, vision recognition, intelligent analysis and AI-assisted multimedia applications.

6 TOPS NPU AI acceleration for edge inference and intelligent terminals

RKNN Toolkit Supports AI model deployment and mixed-precision computing

8K Display and 8K Decoder for True Ultra-HD Experience

TET3588-C supports 8K display output and Rockchip fourth-generation codec technology. It supports H.265 and VP9 decoding up to 8K at 60fps, H.264 decoding up to 8K at 30fps, AV1 decoding up to 4K at 60fps, and H.265 / H.264 encoding up to 8K at 30fps. It is suitable for digital signage, large-screen display, video wall, smart NVR and high-resolution multimedia playback.

8K Decoding H.265 and VP9 up to 8K @ 60fps
H.264 up to 8K @ 30fps

8K Encoding H.265 / HEVC and H.264 / AVC
Up to 8K @ 30fps

Multiple Display Interfaces with Four-Screen Different Display

The TET3588-C provides rich display resources including HDMI 2.1, eDP 1.3, DP 1.4, MIPI-DSI and BT.1120. It supports four-screen different display and maximum output resolution up to 7680 × 4320 @ 60Hz, enabling advanced visual systems for smart display, AI terminal, command center, industrial HMI and high-end multimedia equipment.

HDMI / eDP / DP HDMI up to 7680 × 4320 @ 60Hz, eDP up to 4K @ 60Hz, DP up to 7680 × 4320 @ 30Hz

MIPI-DSI / BT.1120 Dual MIPI-DSI up to 4K @ 60Hz and BT.1120 up to 1920 × 1080 @ 60Hz

Next-Generation ISP for Higher Image Quality

RK3588 introduces a new-generation 48MP ISP 3.0 image-processing engine. It supports lens shading correction, 2D / 3D noise reduction, sharpening, dehazing, fisheye correction, gamma correction and wide dynamic contrast enhancement, helping improve image quality for AI cameras, smart NVR, industrial vision, machine vision and security applications.

48MP ISP 3.0 High-quality image processing for advanced camera systems

Multi-Camera Input Supports MIPI DCPHY, MIPI CSI DPHY, DVP and HDMI RX input resources

Rich CPU Interface Resources for Computing, Connectivity and Storage

TET3588-C provides abundant interface resources for display output, video input, network communication, storage expansion and high-speed peripheral connection. It supports dual Gigabit Ethernet, SATA, USB 3.1 Gen 1, USB 2.0 Host, PCIe 3.0, PCIe 2.0, I²C, SPI, UART, PWM, ADC and SDIO resources.

Dual Gigabit Ethernet

3 × USB 3.1 Gen 1

Up to 4 × PCIe 3.0

Up to 3 × SATA 3.0

Up to 10 × UART

Up to 9 × I²C

Up to 16 × PWM

Up to 8 × ADC

Rich Development Resources for Fast Project Launch

Lcdchip supports customers with development resources for fast product integration, including carrier-board reference design, schematic reference, user manuals, FAQ documents, test examples, pin multiplexing references, software development materials and application notes according to project requirements.

Hardware Development Support

Reference files can help engineers evaluate carrier-board design, interface routing, power design, display configuration and peripheral integration.

Software Development Support

Software materials help shorten debugging time for Linux, Android, display, camera, Ethernet, storage, USB and AI-related functions.

Multiple Operating Systems

TET3588-C supports multiple operating systems, including Android 12, Android 14, Linux 5.10, Linux 6.1, Lcdchip Desktop 20.04 / 22.04, OpenHarmony 5.0 and OpenEuler 24.03. These options help engineers build stable software platforms for different industrial and commercial product requirements.

Linux / Android Linux 5.10 / 6.1 and Android 12 / 14 support

Desktop / Open Source OS Lcdchip Desktop, OpenHarmony and OpenEuler options

Typical Industry Applications

The Lcdchip TET3588-C core board is suitable for AGV, edge computing, smart large-screen display, high-end tablet, smart NVR, visualization gateway, industrial AI, AI camera, intelligent transportation, smart medical, robotics and high-performance embedded AIoT systems.

AGV

Edge Computing

Smart Large Screen

High-End Tablet

Smart NVR

Visualization Gateway

TET3588-C / TET3588J-C Core Board Basic Specifications

Processor	Rockchip RK3588 / RK3588J
CPU	RK3588: 4 × Cortex-A76 @ 2.4GHz + 4 × Cortex-A55 @ 1.8GHz RK3588J: 4 × Cortex-A76 @ 1.6GHz + 4 × Cortex-A55 @ 1.3GHz
NPU	6 TOPS, supporting INT4 / INT8 / INT16 / FP16 mixed operations
GPU	Mali-G610 MP4, supporting OpenGLES 1.1 / 2.0 / 3.2, OpenCL 2.2 and Vulkan 1.2
VPU Decoding	H.265 and VP9 up to 8K @ 60fps; H.264 up to 8K @ 30fps; AV1 up to 4K @ 60fps
VPU Encoding	H.265 / HEVC and H.264 / AVC up to 8K @ 30fps
RAM	4GB / 8GB / 16GB LPDDR4X
ROM	32GB / 64GB / 128GB eMMC
Operating Voltage	DC 5V to 13V wide-voltage input; localized version supports DC 12V input
Operating Temperature	TET3588-C: 0°C to +80°C; TET3588J-C: -40°C to +85°C
Connection Method	Board-to-board connector, 4 × 100-pin, 0.4mm pitch, 1.5mm mating height
Operating System	Android 12 / 14, Lcdchip Desktop 20.04 / 22.04, Linux 5.10 / 6.1, OpenHarmony 5.0, OpenEuler 24.03
System Flashing Method	TF card and USB OTG
Mechanical Size	50mm × 68mm

TET3588-C Functional Parameters

Category	Function	Quantity	Parameters
Video Input	MIPI DC PHY	2	Supports DPHY or CPHY. 4-lane MIPI DPHY V1.2 up to 2.5Gbps per lane, and 3-lane MIPI CPHY V1.1 up to 2.5Gsps per lane. Supports multiple MIPI camera combinations.
Video Input	MIPI CSI DPHY	4	2-lane MIPI DPHY V1.2 up to 2.5Gbps per lane. Every two 2-lane DPHY interfaces can be merged into one 4-lane DPHY interface.
Video Input	DVP	1	8 / 10 / 12 / 16-bit standard DVP interface, up to 150MHz data input. Supports BT.601, BT.656 and BT.1120 VI interface.
Video Input	HDMI RX	1	Supports HDMI 2.0 from 3.4Gbps to 6Gbps and HDMI 1.4b from 250Mbps to 3.4Gbps. Supports HDCP 2.3 and HDCP 1.4.
Display Output	HDMI / eDP TX	Up to 2	Two HDMI / eDP TX multiplexed interfaces. HDMI supports up to 7680 × 4320 @ 60Hz and HDCP 2.3. eDP supports 4K @ 60Hz with x1, x2 and x4 configurations.
Display Output	DP TX	2	Supports two DP TX 1.4a interfaces with 1 / 2 / 4 lanes, up to 7680 × 4320 @ 30Hz, and Type-C DP Alt mode.
Display Output	MIPI DSI	2	Supports two MIPI DPHY 2.0 or CPHY 1.1 interfaces, up to 4K @ 60Hz. Supports dual MIPI display and RGB / YUV formats up to 10-bit.
Display Output	BT.1120 Output	1	Supports RGB format up to 8-bit, data rate up to 150MHz, and resolution up to 1920 × 1080 @ 60Hz.
Audio	I²S	Up to 4	I²S0 / I²S1 support 8 lanes TX and RX; I²S2 / I²S3 support 2 lanes TX and RX. Audio resolution 16 to 32 bits, sampling rate up to 192kHz.
Audio	SPDIF	2	Supports 2 × 16-bit audio data storage and biphase stereo output.
Audio	PDM	2	Supports up to 8 channels, 16 to 24-bit audio resolution, sampling rate up to 192kHz and PDM master receive mode.
Network	Ethernet	2	Two GMAC interfaces with RGMII / RMII output, supporting 10 / 100 / 1000Mbps data rates.
Other Interface	USB 3.1 Gen 1	3	Data rate up to 5Gbps. Two USB 3.1 OTG interfaces are multiplexed with DP TX and support USB Type-C and DP Alt mode. One USB 3.1 Host is multiplexed with PIPE PHY2.
Other Interface	USB 2.0 Host	2	Supports two USB 2.0 Host interfaces.
Other Interface	PCIe 2.0	Up to 3	Each PCIe 2.1 interface supports 1 lane, with data rate up to 5Gbps.
Other Interface	PCIe 3.0	Up to 4	Supports RC and EP modes. Each channel supports up to 8Gbps. Supports 1 × x4, 2 × x2, 4 × x1 or 1 × x2 + 2 × x1 configurations.
Other Interface	SPI	Up to 5	Each controller supports two chip-select outputs. Serial master and serial slave modes are configurable by software.
Other Interface	I²C	Up to 9	Supports 7-bit and 10-bit address modes. Standard mode up to 100kbit/s and fast mode up to 400kbit/s.
Other Interface	UART	Up to 10	Built-in dual 64-bit FIFO for TX and RX. Supports 5 / 6 / 7 / 8-bit serial data and baud rate up to 4Mbps. All UART channels support automatic flow control mode.
Other Interface	SATA	Up to 3	Three SATA 3.0 controllers multiplexed with PCIe 2.0 and USB_HOST2 controllers through PIPE PHY0 / 1 / 2. Supports eSATA and data rate up to 6Gbps.
Other Interface	PWM	Up to 16	Supports up to 16 on-chip PWM channels with capture mode.
Other Interface	ADC	Up to 8	Supports eight 12-bit single-ended SAR-ADC inputs with sampling rate up to 1MS/s.
Other Interface	SDIO	1	Supports SDIO 3.0.

Note: The parameters above are based on hardware design resources or theoretical processor capabilities. Actual interface availability, display combinations, SerDes allocation, camera input configuration, operating-system support, industrial temperature range and memory / storage configuration depend on carrier-board design, pin multiplexing, firmware adaptation, software configuration and customized project requirements.
