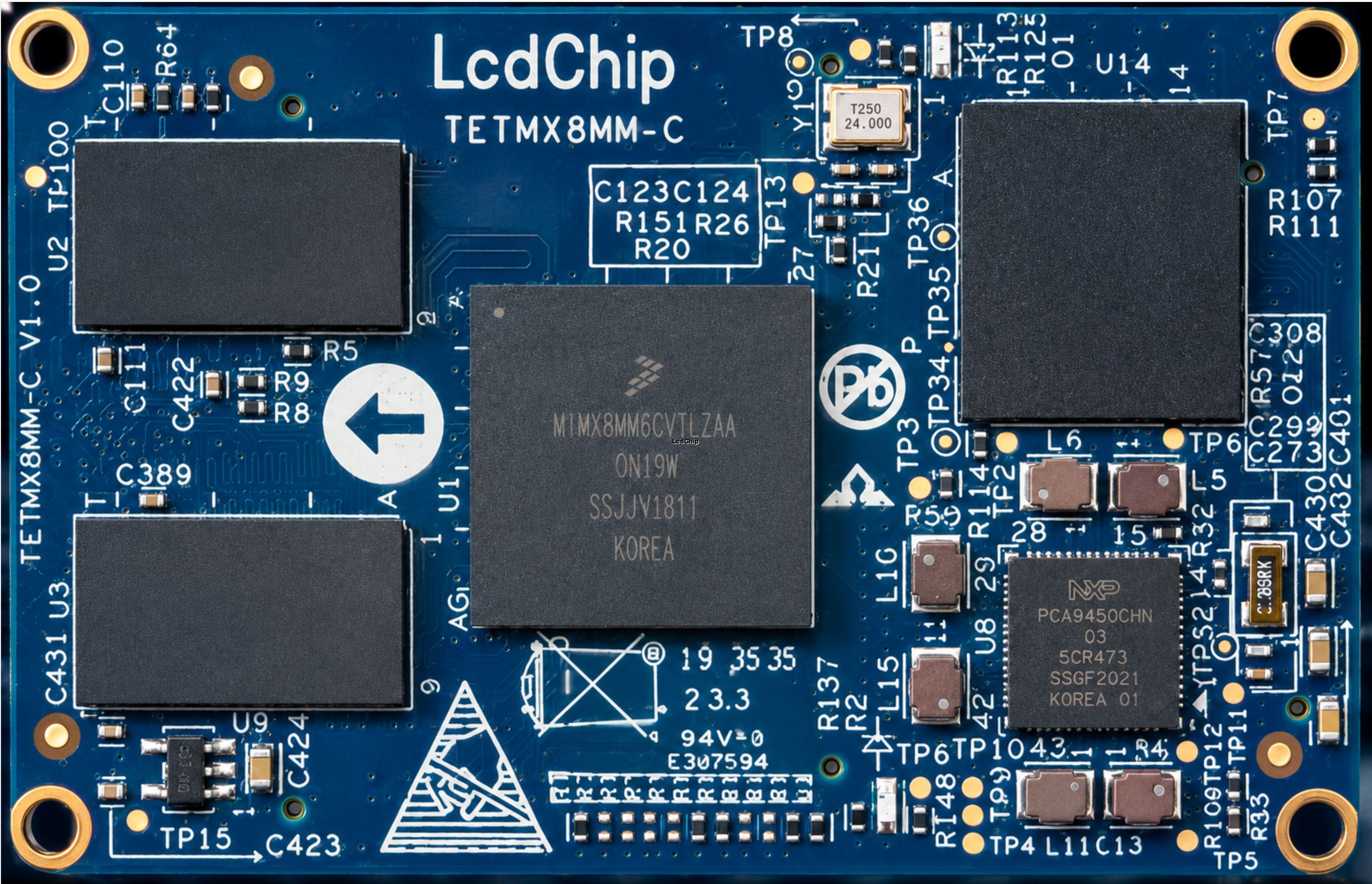

TETMX8MM-C NXP i.MX8M Mini Industrial Core Board with Linux, Android and MIPI Display
The Lcdchip TETMX8MM-C core board is based on the NXP i.MX8M Mini quad-core 64-bit processor. It integrates four Arm Cortex-A53 cores up to 1.8GHz, one Cortex-M4 real-time core at 400MHz, 2GB DDR4 RAM and 8GB eMMC storage. With MIPI-CSI, MIPI-DSI, USB, PCIe, UART, eCSPI, I²C, Gigabit Ethernet and rich digital audio interfaces, it is designed for low-power industrial terminals, video systems, audio products and embedded AIoT applications.
Six Reasons to Choose TETMX8MM-C
High Performance
Quad-core Cortex-A53 up to 1.8GHz with 2GB DDR4 RAM.
H.265 and VP9 Decoding
Lower bandwidth and storage usage than traditional H.264 video.
Multiple Operating Systems
Supports Android 9.0, Linux 4.14 and Linux 6.1 software environments.
Rich Digital Audio Interfaces
Supports IIS, AC97, TDM, PDM, SPDIF and up to five SAI channels.
Real-Time Core
Cortex-M4 core up to 400MHz for low-power and real-time tasks.
Long Product Lifecycle
Designed for stable long-term industrial product supply.
High Performance and Fast User Experience
Powered by the NXP i.MX8M Mini processor, the TETMX8MM-C combines quad-core Cortex-A53 application processing, 2GB DDR4 memory and low-power architecture to deliver smooth system operation for industrial HMI, video applications, embedded Linux terminals and intelligent multimedia devices.
Quad-Core Cortex-A53 Processor
The processor integrates four Cortex-A53 cores with a maximum frequency of up to 1.8GHz, providing reliable computing power for embedded applications and human-machine interface systems.
Cortex-M4 Real-Time Processor
The Cortex-M4 core operates at up to 400MHz and communicates with the Cortex-A53 cores through the internal AHB bus, supporting real-time control, low-power standby and timing-sensitive tasks.
Compact Industrial Form Factor
With a compact size of 56mm × 36mm and an ultra-thin board-to-board connector, the TETMX8MM-C is suitable for space-constrained embedded systems and industrial terminals.
Wide Application Coverage
The platform is suitable for IP cameras, video conferencing, video doorbells, image analysis, audio processing and audio broadcasting systems.
4K + 1080p Independent Dual-Screen Display
The TETMX8MM-C can support MIPI-DSI display output and can be adapted to HDMI or other display outputs through carrier-board conversion design. It supports flexible display integration for 4K multimedia playback, 1080p display output, HMI panels and dual-screen terminal applications.
H.265 and VP9 Decoding Reduce Bandwidth Usage
The TETMX8MM-C supports 1080p60 H.265 and VP9 decoding. Compared with traditional H.264 video transmission, H.265 can reduce bandwidth and storage usage under the same image quality, helping video products improve efficiency and reduce system cost.
Higher bandwidth and storage usage
Lower bandwidth and storage usage
Multiple Operating Systems for Stable Product Development
The TETMX8MM-C supports Android 9.0, Linux 4.14 with Qt 5.10 and Linux 6.1 with Qt 6.5. These software options provide a stable development environment for industrial control, HMI, multimedia and embedded terminal products.
Rich Digital Audio Interfaces
The TETMX8MM-C supports multiple digital audio interfaces including IIS, AC97, TDM, PDM and SPDIF. Up to five SAI channels can be configured for high-quality audio systems, voice recognition, audio processing and broadcast equipment.
Rich Peripheral Interfaces
The TETMX8MM-C provides rich industrial and multimedia peripheral interfaces, including MIPI-CSI, MIPI-DSI, USB 2.0, PCIe 2.0, UART, eCSPI, I²C, SD / SDIO, SAI, PDM, FlexSPI, PWM and Gigabit Ethernet.
Typical Product Applications
The Lcdchip TETMX8MM-C core board is suitable for IP camera video surveillance, two-way video conferencing, video doorbells, image analysis, audio processing, audio broadcast systems, industrial HMI, edge terminals and embedded multimedia products.
TETMX8MM-C Core Board Basic Specifications
| CPU | NXP i.MX8M Mini |
|---|---|
| Architecture | Quad-core Cortex-A53 + single-core Cortex-M4 |
| Main Frequency | Up to 1.8GHz |
| RAM | 2GB DDR4 |
| ROM | 8GB eMMC |
| Operating System | Linux 4.14.78 + Qt 5.10.1, Linux 6.1 + Qt 6.5, Android 9.0 |
| Operating Voltage | 5V power input |
| Connection Method | Ultra-thin board-to-board connector, 3 × 80-pin, 0.5mm pitch |
| Operating Temperature | 0°C to +70°C standard; -40°C to +80°C optional industrial range |
| Mechanical Size | 56mm × 36mm |
TETMX8MM-C Core Board Functional Parameters
| Function | Quantity | Parameters |
|---|---|---|
| Camera | 1 | 4-lane MIPI camera interface with maximum transmission rate up to 1.5Gbps. |
| SD / SDIO | Up to 2 | Supports SD and SDIO interfaces with 1.8V and 3.3V modes. |
| USB | 2 | USB 2.0 up to 480Mbps. Both USB interfaces can be configured as OTG. |
| SAI | Up to 5 | Supports up to five synchronous audio interface channels. |
| UART | Up to 4 | Each UART supports data rates up to 4.0Mbps. |
| eCSPI | Up to 3 | Full-duplex enhanced synchronous serial interface with data rate up to 52Mbit/s. Master and slave modes are configurable. |
| I²C | Up to 4 | Supports transmission rate up to 320Kbps. |
| Ethernet | Up to 1 | Supports 10/100/1000Mbps auto-negotiation Ethernet. |
| PWM | Up to 4 | 16-bit PWM support. |
| JTAG | Supported | Supports JTAG debugging interface. |
| FlexSPI | 1 | Supports single-pad, dual-pad and quad-pad operation modes. |
| Display | 1 | Supports 4-lane MIPI display interface with transmission rate up to 1.5Gbps. |
| PDM | Up to 1 | Supports up to 4 lines and 8 channels. |
| PCIe | 1 | Supports PCIe 2.0 protocol. |
