Texas Instruments XTR305IRGWR
- Part No.:
- XTR305IRGWR
- Manufacturer:
- Texas Instruments
- Category:
- Specialized ICs
- Package:
- 20-VQFN Exposed Pad
- Description:
- IC OUTPUT DRIVER 20VQFN
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
XTR305IRGWR - Texas Instruments Industrial Analog Output Driver
The XTR305IRGWR is a high-precision, industrial Analog Output Driver from Texas Instruments. Designed to interface with programmable logic controllers (PLCs) and industrial instrumentation, it supports both voltage and current output modes. With integrated protection features and a compact VQFN-20 footprint, it provides a flexible, robust solution for process control applications.
Product Overview
The XTR305IRGWR acts as a complete signal-conditioning and output-driving solution, configurable for ±10V or 4-20mA outputs.
About Texas Instruments
Texas Instruments (TI) is a global semiconductor leader in industrial-grade analog chips.
Key Advantages
Programmable current or voltage.
Thermal and short-circuit monitoring.
Low-drift performance.
VQFN-20 package.
Package & Mechanical Details
Housed in a VQFN-20 (5mm x 5mm) package.
- Temp: -40°C to +85°C
- RoHS: Compliant

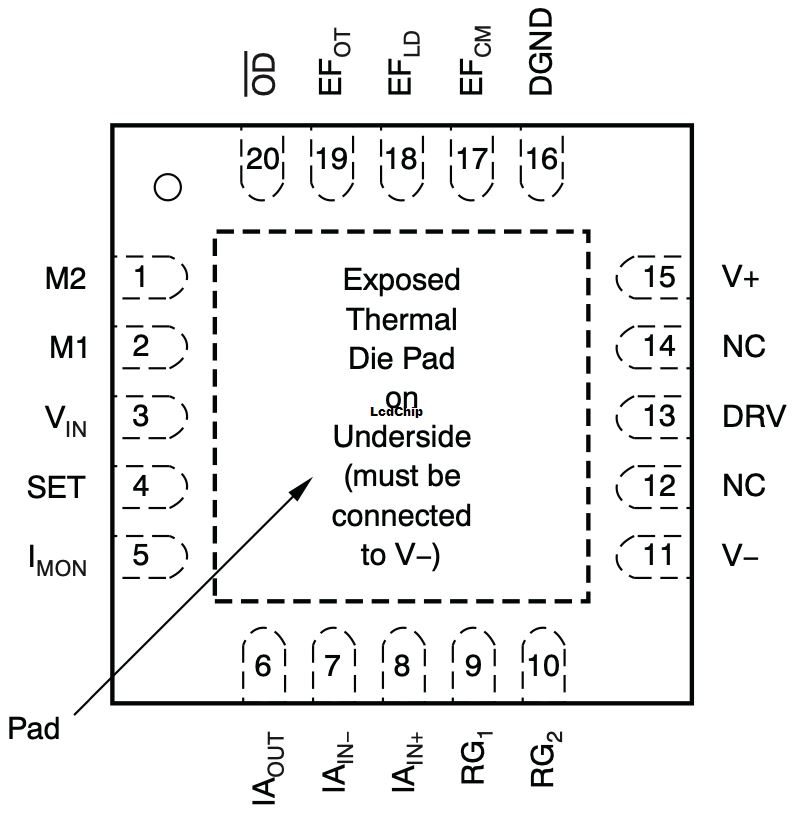

Pin Functions & Terminal Map
Features configuration pins for range setting and DAC input pins.
Technical Specifications
| Part Number | XTR305IRGWR |
|---|---|
| Output | Voltage/Current |
Equivalent & Replacement Guide
Alternatives: XTR300 (Previous generation).
Typical Applications
Programmable Logic Controllers (PLC)
Industrial Instrumentation
Quality & Authenticity
Industrial grade, sourced via authorized TI distributors.
Frequently Asked Questions
Does it support 4-20mA?
Yes.Is it configurable?
Yes.Disclaimer
Consult official TI datasheet for design-in qualification.
XTR305IRGWR Information
- Specifications
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Texas Instruments
- Series:
- -
- Package/Case:
- 20-VQFN Exposed Pad
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Programmable:
- Not Verified
- Type:
- Output Driver
- Applications:
- Industrial
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 20-VQFN (5x5)
- Grade:
- -
- Qualification:
- -
- Include Parts
