Eaton - Electronics Division XLR-16R2507-R
- Part No.:
- XLR-16R2507-R
- Manufacturer:
- Eaton - Electronics Division
- Package:
- Datasheet:
-
XLR-16R2507-R.pdf
- Description:
- CAP MODULE 500F 16.2V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
XLR-16R2507-R Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Eaton - Electronics Division
- Series:
- XLR
- Packaging:
- Bulk
- Product Status:
- Not For New Designs
- Capacitance:
- 500 F
- Tolerance:
- -5%, +20%
- Voltage - Rated:
- 16.2 V
- ESR (Equivalent Series Resistance):
- 1.7mOhm
- Lifetime @ Temp.:
- 1500 Hrs @ 65°C
- Termination:
- Screw Terminals
- Mounting Type:
- Chassis Mount
- Package / Case:
- Module, Screw Terminals
- Lead Spacing:
- -
- Size / Dimension:
- 16.386" L x 2.646" W (416.20mm x 67.20mm)
- Height - Seated (Max):
- 6.925" (175.90mm)
- Operating Temperature:
- -40°C ~ 65°C
| Image |  |
 |
|
 |
|

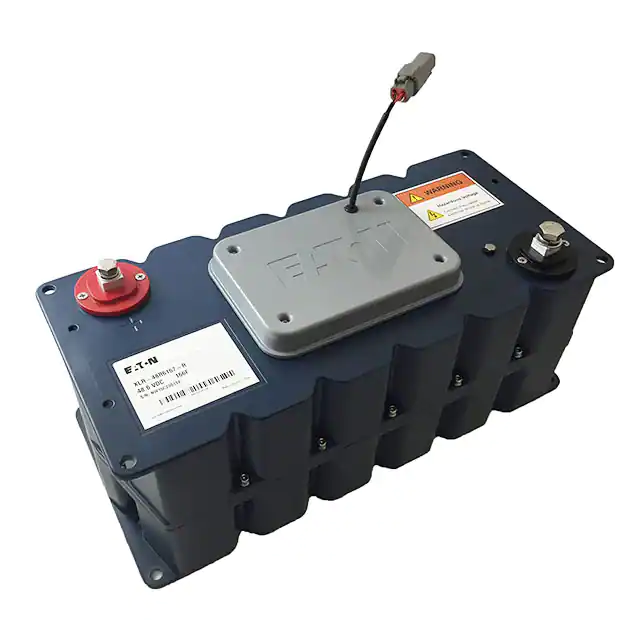

| Part Number | XLR-16R2507-R | XLR-18R0507B-R | XLR-16R2507B-R | XLR-48R6167-R | XLR-51R3187-R |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| Series | XLR | XLR | XLR | XLR | XLR |
| Packaging | Bulk | Box | Box | Bulk | Box |
| Product Status | Not For New Designs | Active | Active | Active | Active |
| Capacitance | 500 F | 500 F | 500 F | 166 F | 188 F |
| Tolerance | -5%, +20% | -5%, +20% | -5%, +20% | 0%, +20% | 0%, +20% |
| Voltage - Rated | 16.2 V | 18 V | 16.2 V | 48.6 V | 51.3 V |
| ESR (Equivalent Series Resistance) | 1.7mOhm | 1.7mOhm | 1.7mOhm | 5mOhm | 5mOhm |
| Lifetime @ Temp. | 1500 Hrs @ 65°C | 1000 Hrs @ 65°C | 1500 Hrs @ 65°C | 1500 Hrs @ 65°C | 1500 Hrs @ 65°C |
| Termination | Screw Terminals | Cable with Connector | Cable with Connector | Screw Terminals | Screw Terminals |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | User Defined | User Defined |
| Package / Case | Module, Screw Terminals | Module | Module | Module | Module |
| Lead Spacing | - | - | - | - | - |
| Size / Dimension | 16.386" L x 2.646" W (416.20mm x 67.20mm) | 16.417" L x 2.677" W (417.00mm x 68.00mm) | 16.417" L x 2.677" W (417.00mm x 68.00mm) | 16.516" L x 7.657" W (419.50mm x 194.50mm) | 16.516" L x 7.657" W (419.50mm x 194.50mm) |
| Height - Seated (Max) | 6.925" (175.90mm) | 6.969" (177.00mm) | 6.969" (177.00mm) | 6.905" (175.40mm) | 6.905" (175.40mm) |
| Operating Temperature | -40°C ~ 65°C | -40°C ~ 65°C | -40°C ~ 65°C | -40°C ~ 65°C | -40°C ~ 65°C |
