Winbond Electronics Corporation W25Q80DVSNIG TR
- Part No.:
- W25Q80DVSNIG TR
- Manufacturer:
- Winbond Electronics Corporation
- Category:
- Memory
- Package:
- 8-SOIC (0.154", 3.90mm Width)
- Description:
- IC FLASH 8MBIT SPI/QUAD 8SOIC
- Quantity:
Unit Price:$0.51
Ext Price:$1275.00
- Payment:
- Shipping:
Product Details
W25Q80DVSNIG TR - 8Mbit Serial NOR Flash Memory (SPI, SOIC-8)
W25Q80DVSNIG TR is an 8Mbit (1MB) Serial NOR Flash memory from Winbond, designed for embedded systems requiring reliable non-volatile storage with fast read performance, low power consumption, and compact SPI interface.
This page is for engineering reference and selection guidance. Always confirm specifications using the latest official datasheet before final design.
Overview
W25Q80DVSNIG TR belongs to Winbond's widely used W25Q SPI Flash family. It provides 8Mbit of storage organized into sectors and pages, making it suitable for code storage, firmware updates, and data logging in embedded applications.
The device supports standard SPI as well as high-speed read modes, enabling efficient system boot and execution-in-place (XIP). Its low standby current and wide operating voltage range make it ideal for battery-powered and low-power designs.
Key Advantages
8Mbit density suitable for firmware, configuration, and data logging.
Supports fast read modes for efficient boot and execution.
Optimized standby and active current for energy-efficient systems.
Industry-standard SPI protocol ensures easy integration with MCUs and SoCs.
Feature Summary
8Mbit (1MB) storage capacity.
Supports standard, dual, and quad SPI modes.
High-speed clock operation for rapid data access.
Operates typically from 2.7V to 3.6V.

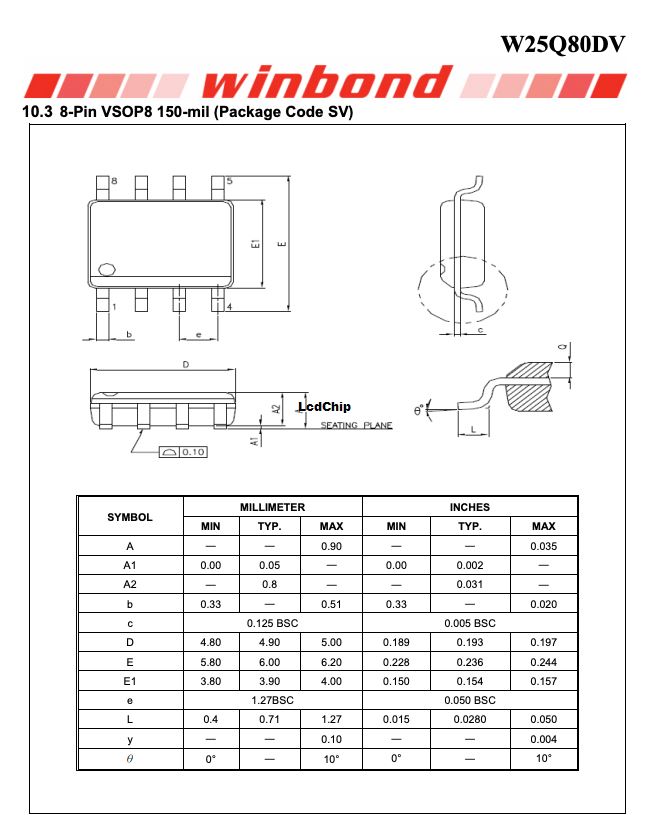

Package & Footprint
The W25Q80DVSNIG TR is available in an SOIC-8 (150mil) surface-mount package, widely used for SPI Flash memory in embedded systems.
- Keep SPI traces short and matched for signal integrity.
- Place decoupling capacitor close to VCC pin.
- Follow manufacturer land pattern for reliable soldering.
Refer to datasheet for exact package dimensions and PCB footprint.

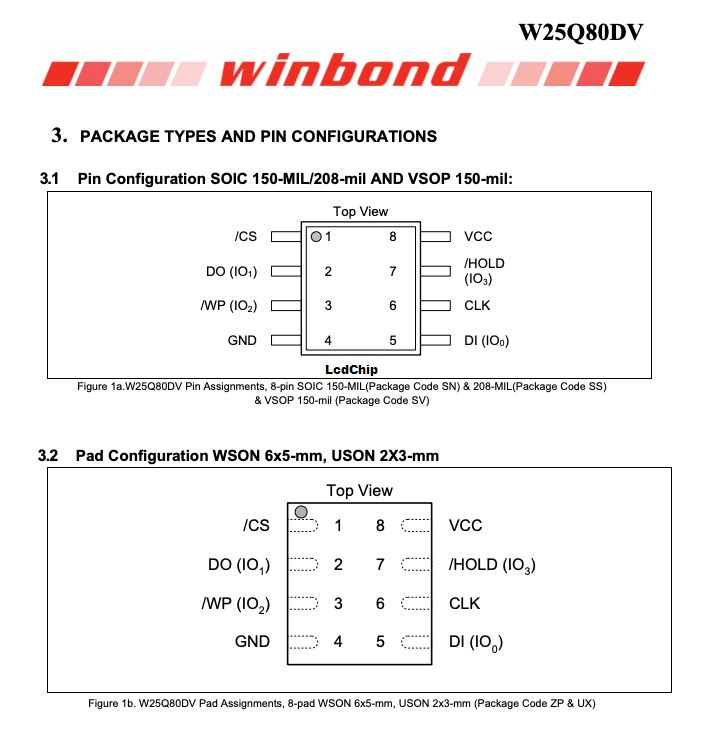

Pin Functions
The W25Q80DVSNIG TR uses a standard SPI Flash pin configuration.
Key Specifications
| Memory Type | Serial NOR Flash |
|---|---|
| Density | 8Mbit (1MB) |
| Interface | SPI / Dual / Quad SPI |
| Supply Voltage | 2.7V – 3.6V |
| Clock Frequency | Up to ~104MHz (fast read) |
| Package | SOIC-8 |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C to +85°C |
| Base Product | W25Q80DV |
Equivalent
Compatible or alternative SPI Flash memory options include:
- MX25L8006E – Macronix, 8Mbit SPI Flash with similar interface
- GD25Q80CSIG – GigaDevice, 8Mbit NOR Flash, pin-compatible
- EN25Q80B – EON (Etron), SPI Flash alternative
- S25FL008K – Cypress/Infineon, high-reliability SPI Flash
Always verify command set compatibility and timing before substitution.
Manufacturer Information
Winbond Electronics is a leading supplier of memory ICs, specializing in Serial NOR Flash, DRAM, and secure memory solutions.
- Strength: SPI Flash, DRAM, embedded memory
- Markets: Consumer electronics, IoT, industrial control
- Resources: Datasheets, reference designs, application notes
Applications
Typical applications include:
Embedded Systems
Firmware and code storage for MCUs and SoCs.
IoT Devices
Configuration storage and data logging.
Consumer Electronics
Boot memory for smart devices.
Industrial Control
Reliable non-volatile data storage.
Quality & Authenticity
- Strict incoming inspection and traceability
- Original factory packaging support
- Anti-counterfeit verification available
FAQ
What does "TR" mean in W25Q80DVSNIG TR?
Is this device compatible with standard SPI controllers?
Can it be used for firmware storage?
Disclaimer
W25Q80DVSNIG TR Information
- Specifications
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Winbond Electronics Corporation
- Series:
- SpiFlash®
- Package/Case:
- 8-SOIC (0.154", 3.90mm Width)
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Programmable:
- Verified
- Memory Type:
- Non-Volatile
- Memory Format:
- FLASH
- Technology:
- FLASH - NOR
- Memory Size:
- 8Mbit
- Memory Organization:
- 1M x 8
- Memory Interface:
- SPI - Quad I/O
- Clock Frequency:
- 104 MHz
- Write Cycle Time - Word, Page:
- 3ms
- Access Time:
- -
- Voltage - Supply:
- 2.7V ~ 3.6V
- Operating Temperature:
- -40°C ~ 85°C (TA)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 8-SOIC
