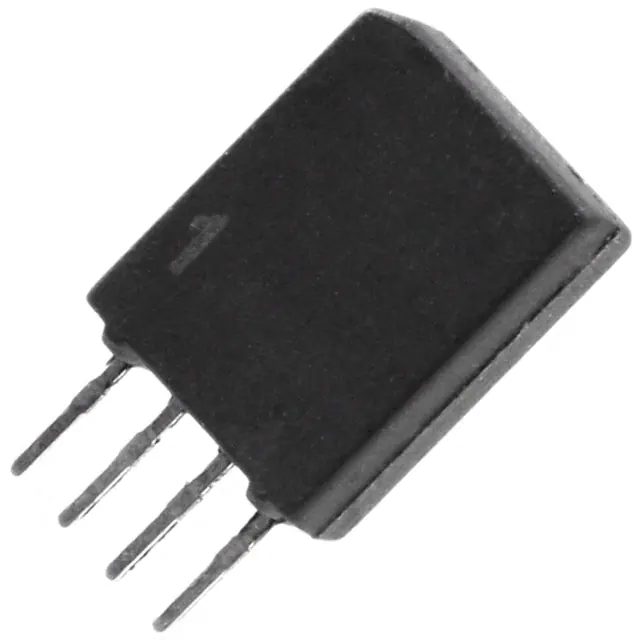

Standex-Meder Electronics UMS05-1A80-75D

Name: UMS05-1A80-75D
Brand: Standex-Meder Electronics
SKU: UMS05-1A80-75D
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: UMS05-1A80-75D

Manufacturer:: Standex-Meder Electronics

Category:: Reed Relays

Package:

Datasheet:: UMS05-1A80-75D.pdf

Description:: RELAY REED SPST 500MA 5V

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

UMS05-1A80-75D Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Standex-Meder Electronics

Series:: UMS

Packaging:: Tube

Product Status:: Active

Mounting Type:: Through Hole

Coil Voltage:: 5VDC

Contact Form:: SPST-NO (1 Form A)

Contact Rating (Current):: 500 mA

Switching Voltage:: 170VAC, 170VDC - Max

Coil Current:: 12.5 mA

Coil Type:: Non Latching

Features:: Diode

Termination Style:: PC Pin

Seal Rating:: -

Must Operate Voltage:: 3.75 VDC

Must Release Voltage:: 0.5 VDC

Operate Time:: 0.2 ms

Release Time:: 0.1 ms

Operating Temperature:: -20°C ~ 85°C

Contact Material:: -

Part Number	UMS05-1A80-75D	UMS05-1A80-75L
Manufacturer	Standex-Meder Electronics	Standex-Meder Electronics
Series	UMS	UMS
Packaging	Tube	Tube
Product Status	Active	Active
Mounting Type	Through Hole	Through Hole
Coil Voltage	5VDC	5VDC
Contact Form	SPST-NO (1 Form A)	SPST-NO (1 Form A)
Contact Rating (Current)	500 mA	500 mA
Switching Voltage	170VAC, 170VDC - Max	170VAC, 170VDC - Max
Coil Current	12.5 mA	12.5 mA
Coil Type	Non Latching	Non Latching
Features	Diode	-
Termination Style	PC Pin	PC Pin
Seal Rating	-	-
Must Operate Voltage	3.75 VDC	3.75 VDC
Must Release Voltage	0.5 VDC	0.5 VDC
Operate Time	0.2 ms	0.2 ms
Release Time	0.1 ms	0.1 ms
Operating Temperature	-20°C ~ 85°C	-20°C ~ 85°C
Contact Material	-	-
