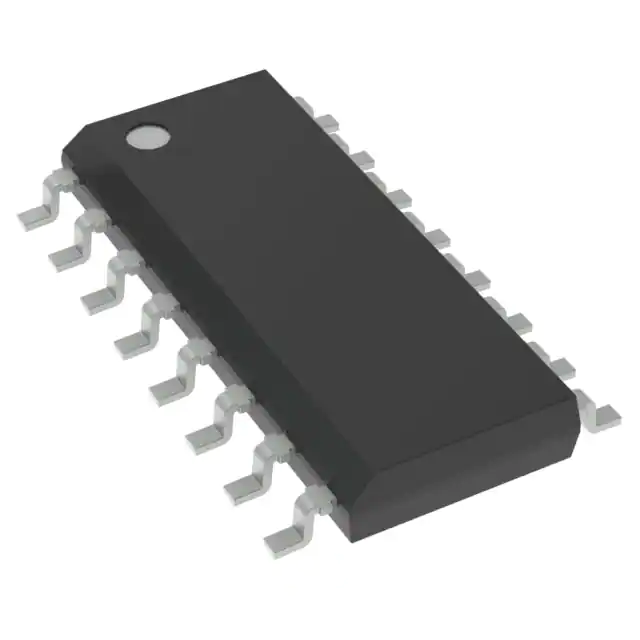

STMicroelectronics ULN2003D1013TR
- Part No.:
- ULN2003D1013TR
- Manufacturer:
- STMicroelectronics
- Package:
- 16-SOIC (0.154", 3.90mm Width)
- Datasheet:
-
ULN2003D1013TR.pdf
- Description:
- IC PWR RELAY 7NPN 1:1 16SO
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
ULN2003D1013TR Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- STMicroelectronics
- Package/Case:
- 16-SOIC (0.154", 3.90mm Width)
- Series:
- ULx200xA
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Switch Type:
- Relay, Solenoid Driver
- Number of Outputs:
- 7
- Ratio - Input:Output:
- 1:1
- Output Configuration:
- Low Side
- Output Type:
- Darlington
- Interface:
- Parallel
- Voltage - Load:
- 50V (Max)
- Voltage - Supply (Vcc/Vdd):
- Not Required
- Current - Output (Max):
- 500mA
- Rds On (Typ):
- -
- Input Type:
- Inverting
- Features:
- -
- Fault Protection:
- -
- Operating Temperature:
- -40°C ~ 85°C (TA)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 16-SO
| Image |  |
| Part Number | ULN2003D1013TR |
| Manufacturer | STMicroelectronics |
| Package/Case | 16-SOIC (0.154", 3.90mm Width) |
| Series | ULx200xA |
| Packaging | Tape & Reel (TR) |
| Product Status | Active |
| Switch Type | Relay, Solenoid Driver |
| Number of Outputs | 7 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | Low Side |
| Output Type | Darlington |
| Interface | Parallel |
| Voltage - Load | 50V (Max) |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 500mA |
| Rds On (Typ) | - |
| Input Type | Inverting |
| Features | - |
| Fault Protection | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-SO |
